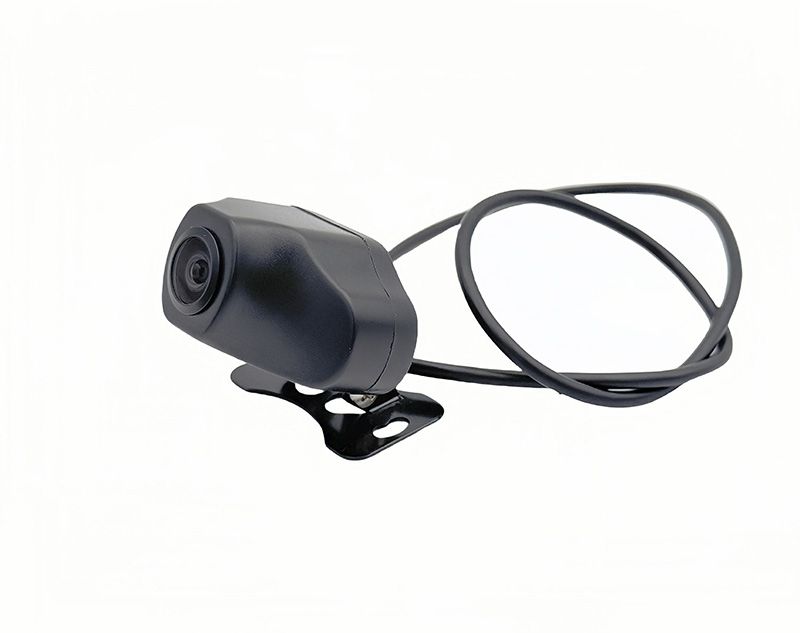

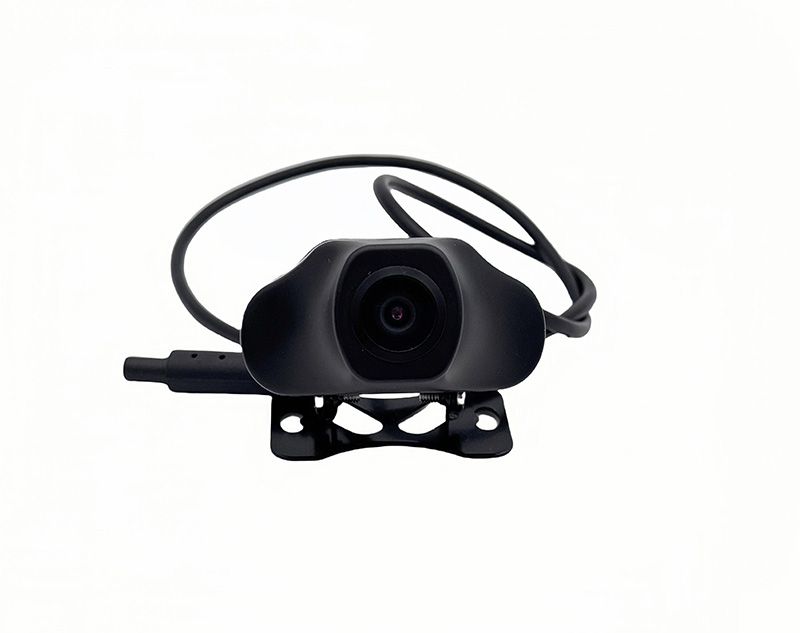

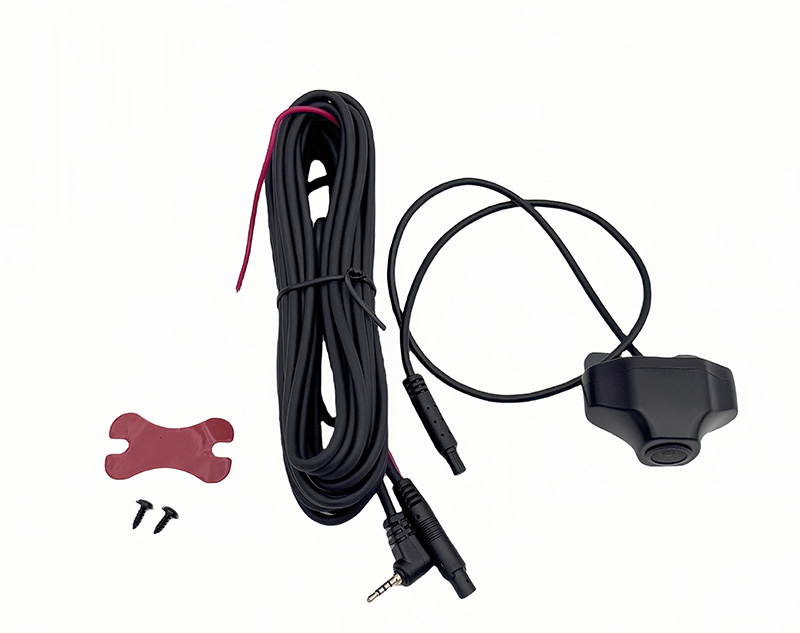

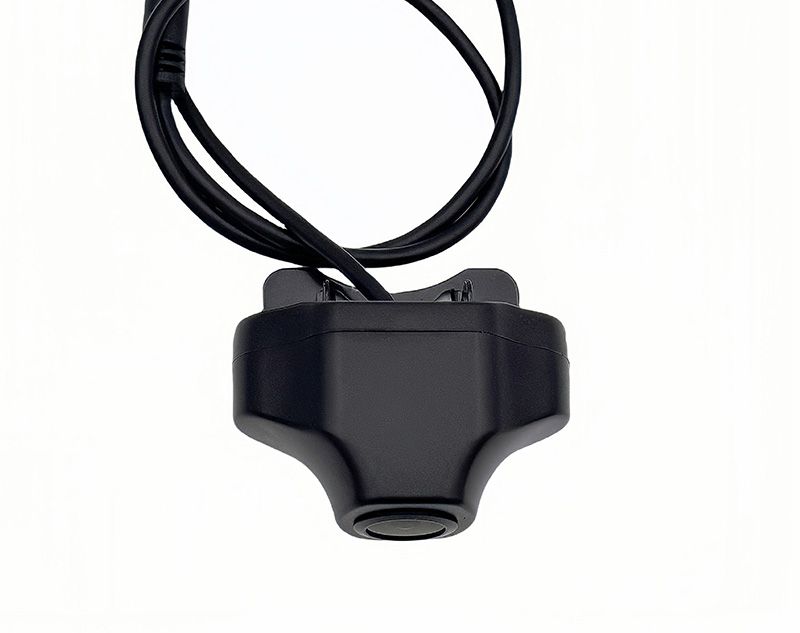

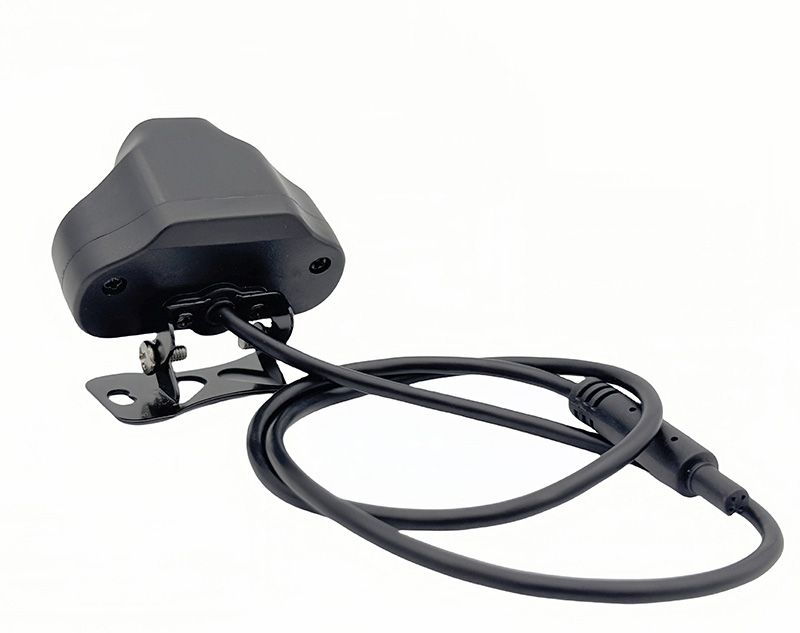

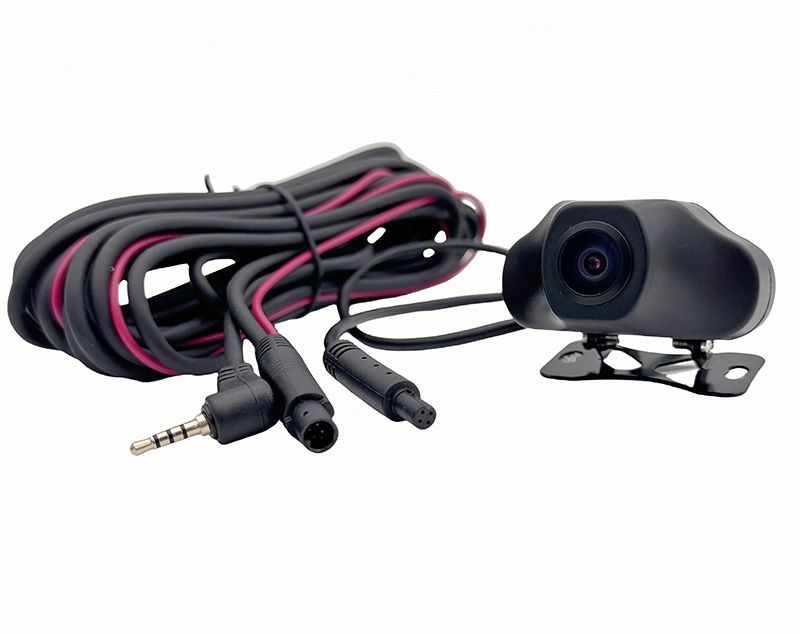

Rear Camera R15

Compatible with all CMS, CMS-Mirror and DVR devices

Inquire Now

Specs

SPECIFICATION

R15 Specifications
Features
Sensor:		V300+2336 1/3
Rear lens	Resolution/FPS:	AHD 1080p/25fps
	Aperture:	F2.0
	Construction:	2G2P
	FOV:	D:146° H:119° V:61°
	Extention Cable length:	5.5M
	Other features:	Switch to rear view image automatically while reversing, parking assistance line is adjustable
Image Characteristics:		Horizontal Original Image
Video Output Signal:		AHD
Exposure:		Auto
Gain:		Auto
White Balance:		Auto
Low Light Performance:		0.1 Lux
I/O port:		2.5mm socket
Power consumption:
Working voltage：		DC5V
Working current：		160mA +/- 10mA
Environment
Operating Temp：		（-20℃-70℃）
Storage Temp：		（-30℃-80℃）
Waterproof Rating:		IP67
Mechanical;
Product dimensions:
Product weigiht:		146g
Install method:		3M adhesive
