Design VN8
USP
-
01
Featuring Front 4K UHD + Rear 1080P, high-definition resolution and wide-angle lens,capture every detail of your drive.
-
02
Built in Wifi & APP control. Through 'Viidure' app, access your recordings from anywhere, at any time.
-
03

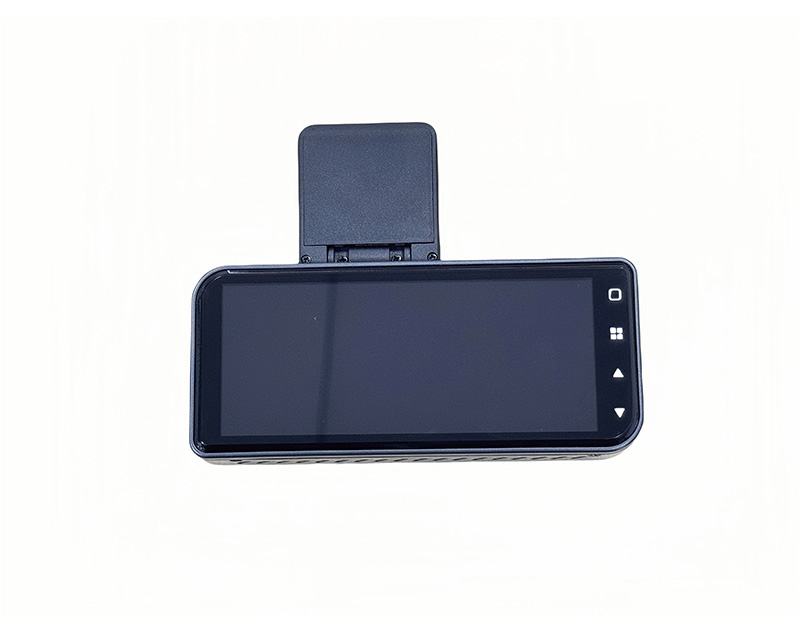

Enjoy a crystal-clear view on the 3.69-inch IPS screen, offering excellent color reproduction and wide viewing angles, making it easy to monitor the road ahead.
-
04
Supporting 24-hour time-lapse monitoring, capable of continuously recording when the vehicle is parked, capturing video at a rate of one frame per second.

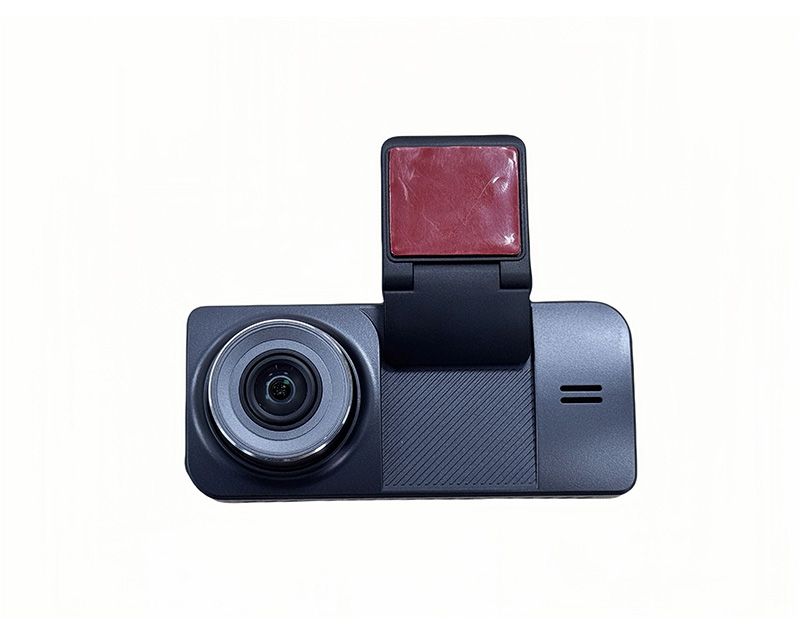

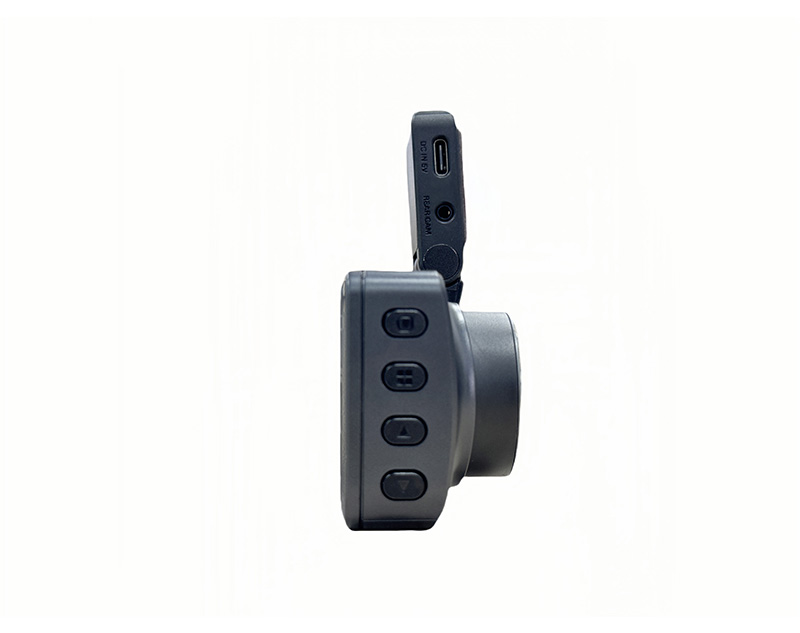

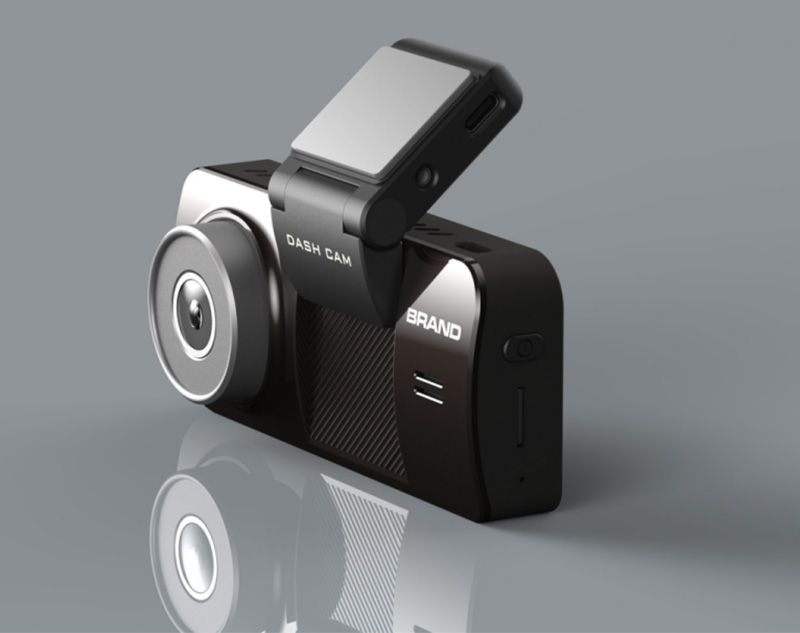

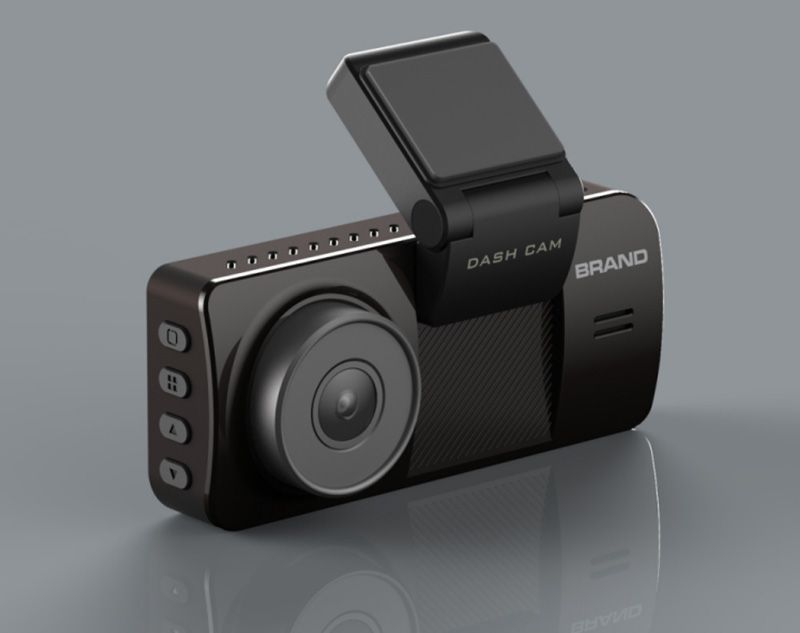

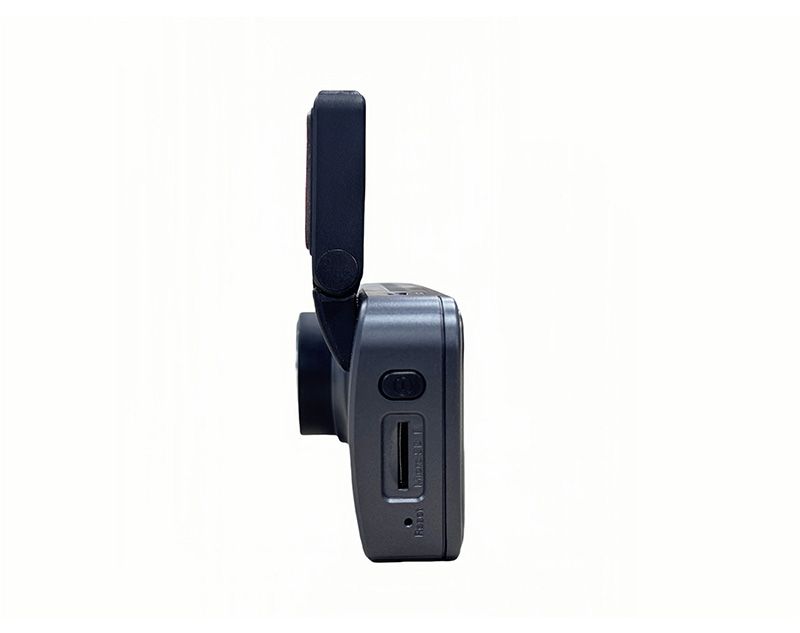

PRODUCT PHOTOS
SPECIFICATION
| V12 Specification | |
| Core | |
| Processor | NOVATEK |
| Front Sensor | NT98529 4K/30FPS |
| Rear Sensor | AHD1080p 25FPS |
| Inward Sensor | N/A |
| External Memory | up to 128GB |
| OS | Linux |
| APP/PC Player app | LUCKYCAM |
| Display | |
| LCD Panel | MIPI 3.99" |
| Resolutions | 960*400 |
| Touch Panel | N/A |
| Front Lens | |
| Aperture | F1.75 |
| Construction | 7G |
| FOV | D:135° H:116° V:60 |
| Resolution/fps | 3840*2160/25FPS(4K) |
| Rear Lens | |
| Aperture | F2.24 |
| Construction | 2G2P |
| FOV | D:126°,H:104°，V:54.5° |
| Resolution/FPS | 1920*1080/25FPS(1080P) |
| Inward Lens | |
| Aperture | N/A |
| Construction | N/A |
| FOV | N/A |
| Resolution/FPS | N/A |
| Wireless | |
| WiFi | support |
| Bluetooth | N/A |
| Cellular data | N/A |
| Positioning | built-in |
| Features | |
| Audio | Built-in |
| Video | Built-in |
| Video Ecodeing Format | H.264,MJPG |
| Video Format | MP4 |
| Parking Monitoring | support |
| Motion Detection | support |
| Voice Recognition | support |
| G-Sensor | support |
| Time Lapse | support |
| Others （Optional） | ADAS: FCWS,LDWS,PCWS,FVSW, FVDM |
| User-Interface | |

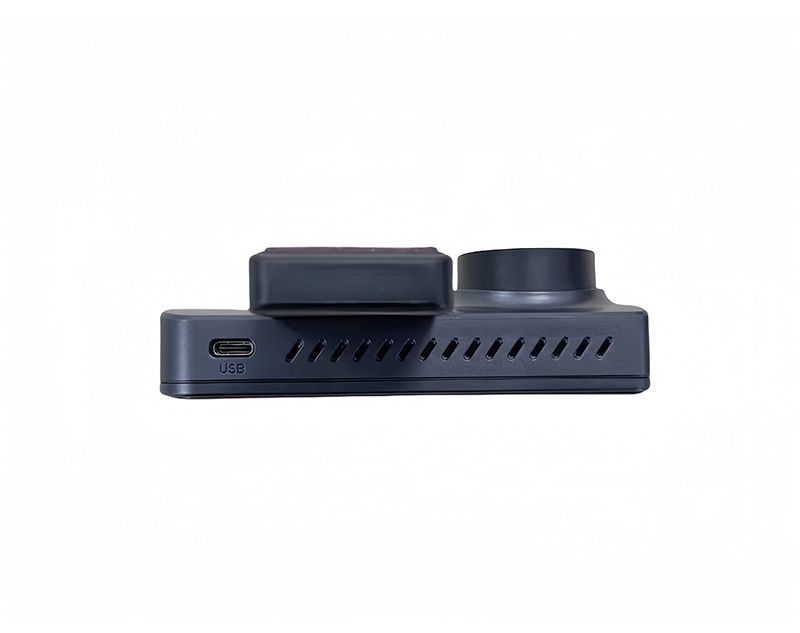

| I/O Ports | Type-C power socket |
| TF Card （support Maximum 128G) | |
| N/A | |
| rear cam connection jack-2.5mm | |
| Microphone | -40db+-2db |
| Speaker | Built-in 8ohm*1.5W |
| Function Key | Power On/Off, Left/Right Button, Confirm, Menu |
| Indicator Light | WIFI /Power/video indicator |
| Power | |
| DC In | 5V/3A |
| Battery | Super capacitor |
| Firmware Upgrade | TF Card |
| Environment | |
| Operating Temp | -20℃-70℃ |
| Storage Temp | -30℃-80℃ |
| Operating Humidity | 15%-60%RH |
| IP Rating | N/A |
| Mechanical | |
| Dimensions | |
| Docking Station | 3M adhesive |
| Accessories | |
| Standard | User Manual/Car Charger with Cable |
| Optional | hardwire kit |
| Remarks 1, need to use 3 lead hardwire kit to enabe time lapse feature. 2, Description of abbreviation of ADAS features: 1) FCWS:Front collision warning system 2)LDWS: lane departure warning system 3) PCWS: Pedestrian collision warning system 4) FVSW: Front vehicle start warning 5) FVDM: Front vehicle distance monitoring. | |
In The Box

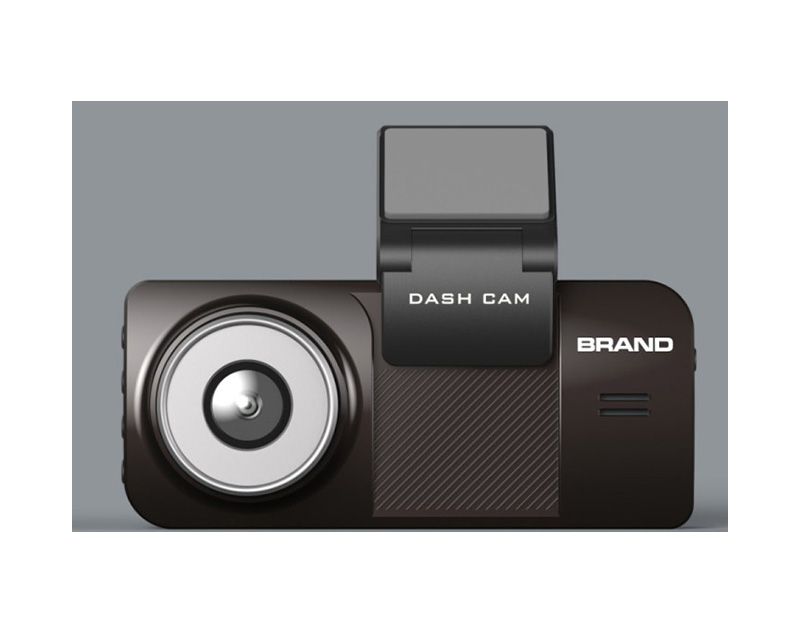

Main device

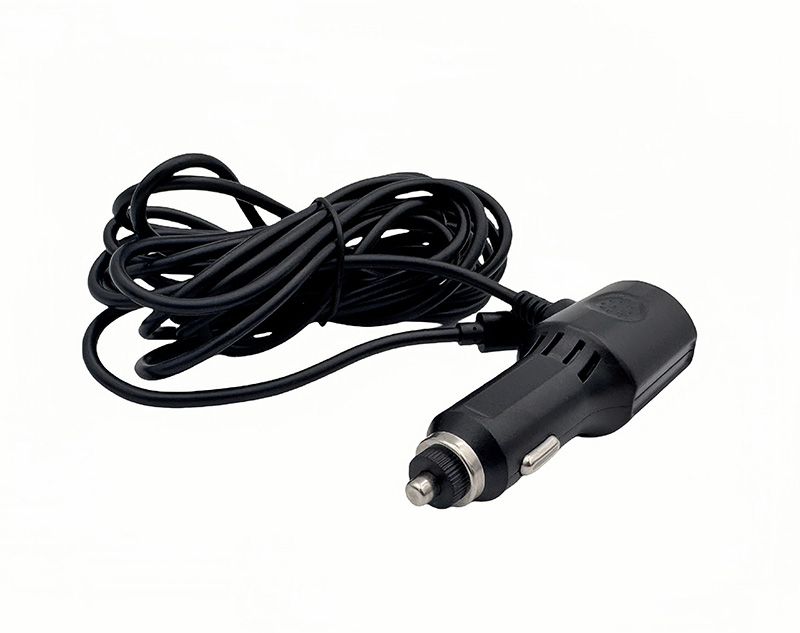

Car charger
User manual
Accessories
