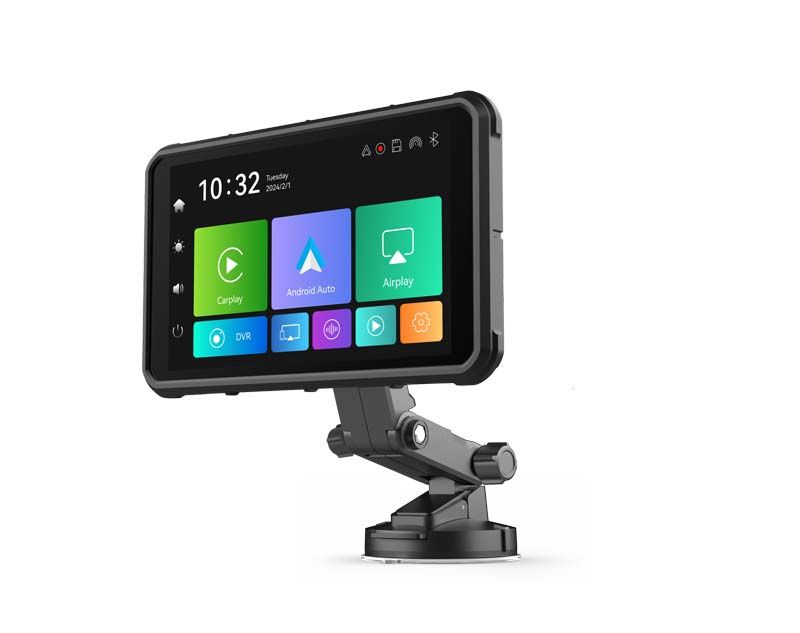

Connected Monitor System 801

This product is universal for all vehicles, offering a plug-and-play experience that quickly connects with your phone. Featuring an exclusive private mold design, it showcases fully laminated screen technology for enhanced viewing. With an 8-inch IPS high-definition display, it provides a vibrant and clear visual experience. The unique suction mount allows for easy and secure installation, making it an ideal choice for any driver.

USP

01

Exclusive private mold design with an additional silicone protective case,ensuring you get a product that’s uniquely crafted for performance and style
02

Adopting Fully Laminated Screen Technology. Reducing reflections and glare, and enhancing image clarity and contrast. Additionally, this technology offers better touch sensitivity and visual experience.
03

Equipped with a 8-inch Large HD Display, dedicated design for Off-Road, RV,Pick-Up vehicles
04

Featuring unique suction mount

801 GUI

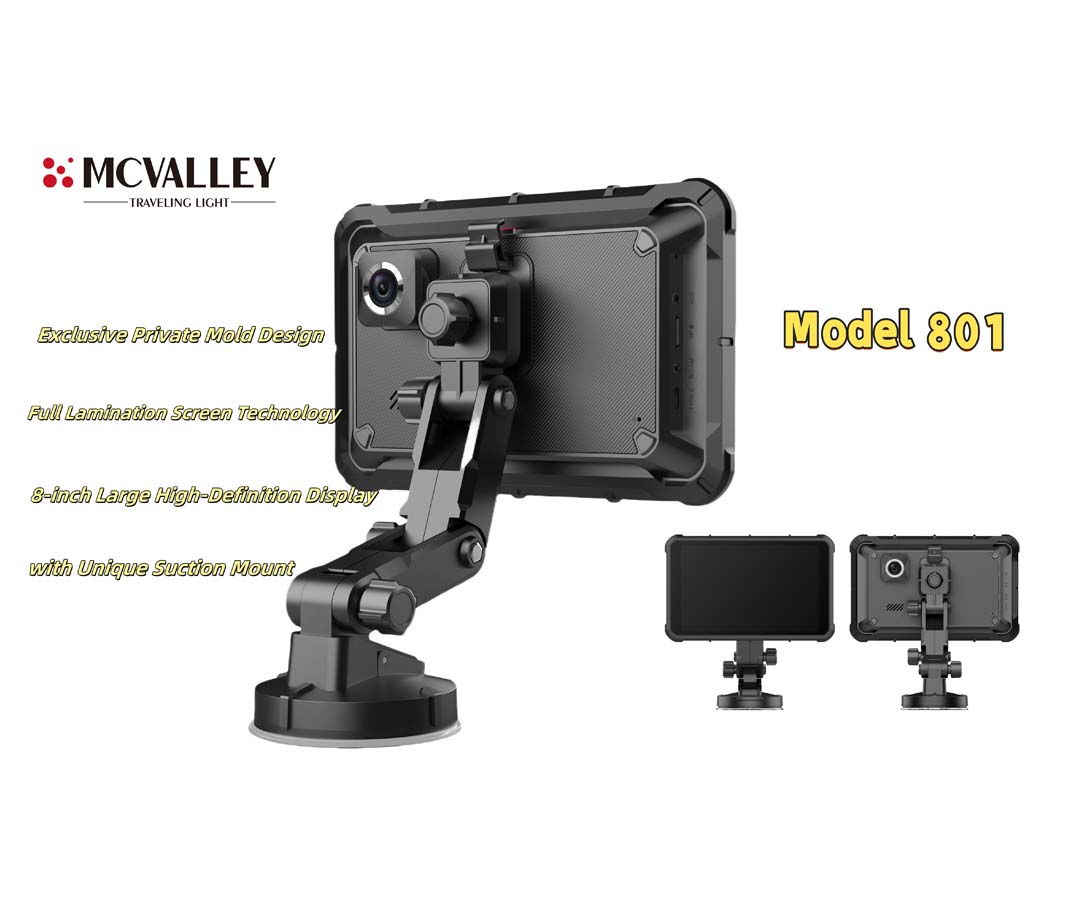

PRODUCT PHOTOS

SPECIFICATION

801 Specifications
General
Processor:		Dual core A53-1.2Ghz
FLASH：		128MB
DDR:		256MB
Display type:		Glass capacitive multi-touch IPS
Display size&resolution:		8.0inch, 1280*800
Display brightness:		495Nit
Battery：		Cell battery（for RTC）
Camera Features
Front lens	Resolution/FPS	Onboard type, 1080p/25fps
	Aperture/construction:	F2.0/2G2P
Rear lens	Resolution/FPS	AHD 1080p/25fps
	Aperture/construction:	F2.0/2G4P
	extention Cable length:	5.5M
	Other features:	Switch to rear view image automatically while reversing, parking assistance line is adjustable
Loop recording		yes, 1min/3min/5min
Parking monitor:		Optional (has to be used together with 3 wires hardwire kit)
Wireless connections&sensors
WiFi:		Support carplay or Android Auto
BT:		4.2
FM transmitter:		Yes
GPS:		No
G-sensor:		Yes
I/O Ports
Mic:		Yes-Electret MIC-1.5*4MM, -34DB
Speaker:		8ohm,2W
Voice command:		Via Siri/Google assistant
AUX socket		Yes, 3.5mm
Rear Camera connector:		2.5mm socket
Micro SD card slot:		Yes, up to 256GB
External GPS antenna socket		N/A
Power input：		Type C
Physical Buttons:		Power, Reset
Advanced features
Light sensor		Through front camera lens
ADAS		Optional
Power consumption:
Working voltage：		DC5V
Working current：		<1A
Quiescent current：		<10MA
Power supply:		Car charger or hardwire kit(optional)
Software and update
OS:		LINUX 4.9
Firmware update:		Through Micro SD card, OTA will be available in future
Environment
Operating Temp：		（-10℃-70℃）
Storage Temp：		（-20℃-80℃）
Mechanical;
Product dimensions:		20.04*12.4cm
Product weigiht:		479
Install method:		Suction mount

In The Box

Main device

AUX cable

Car Charger

Suction Mount

User Manual

Accessories
