Design N3 CarPlay
Experience safe and secure driving with our new version of model 720, and remove the camera recording, the price is significantly decreased, in the meanwhile, the product becomes more simplified with better performance through upgrade intuitive GUI, truly a good option of driving assistance gadget.
USP
-
01
Supporting CarPlay and Android Auto.
-
02
Equipping auto dimming, adjust display brightness automatically via inbuild light-sensor to accommodate ambient light naturally.
-
03
Offering seamless Bluetooth integration, allowing you to easily connect your devices without the hassle of cables, enhancing your driving experience
-
04
Featuring an optional rear cam and Multiple Installation Methods.

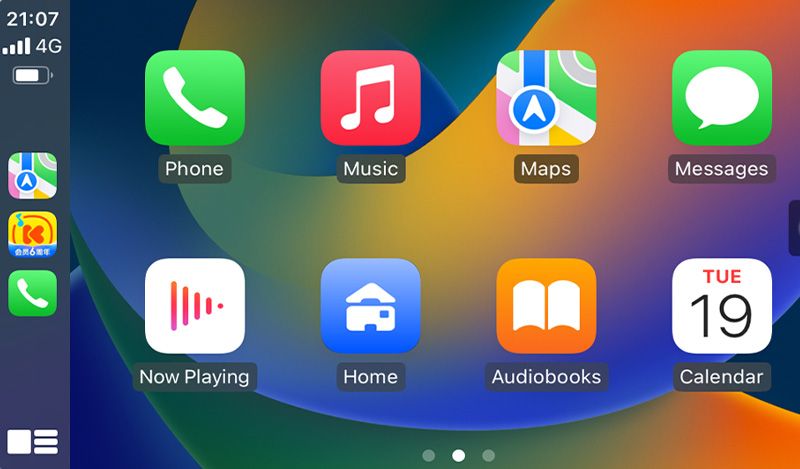

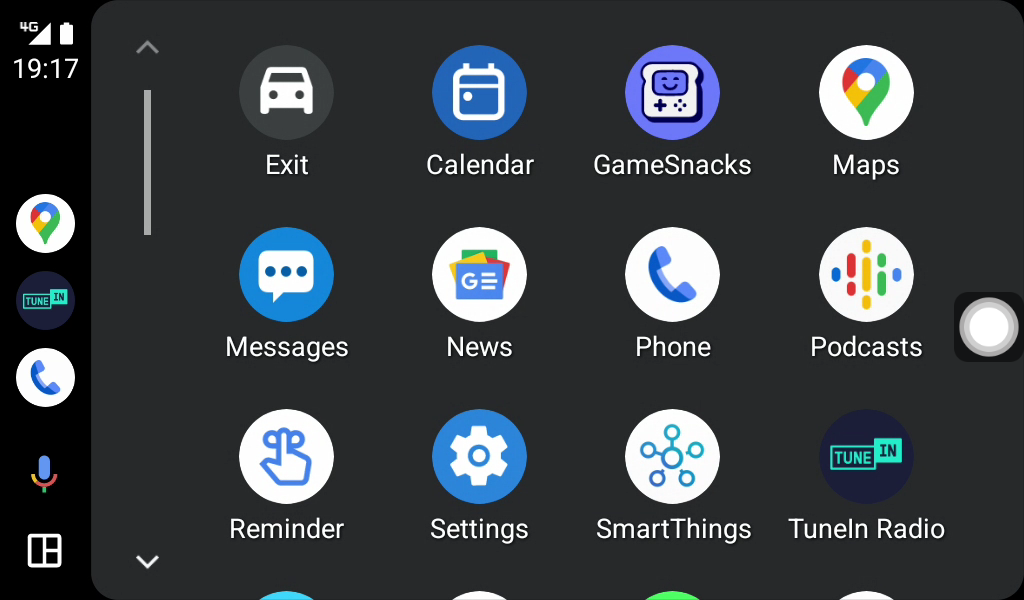

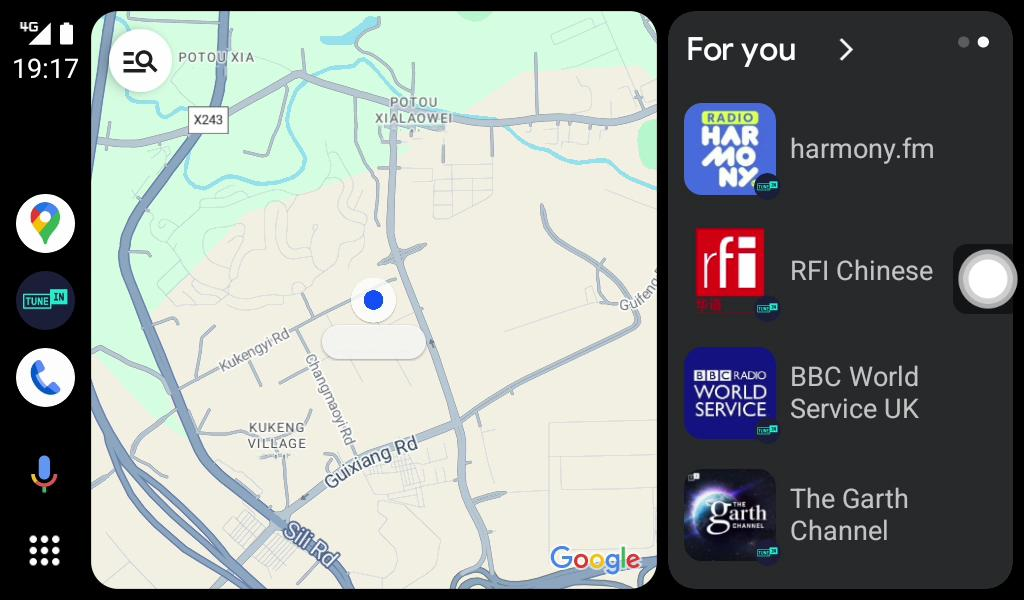

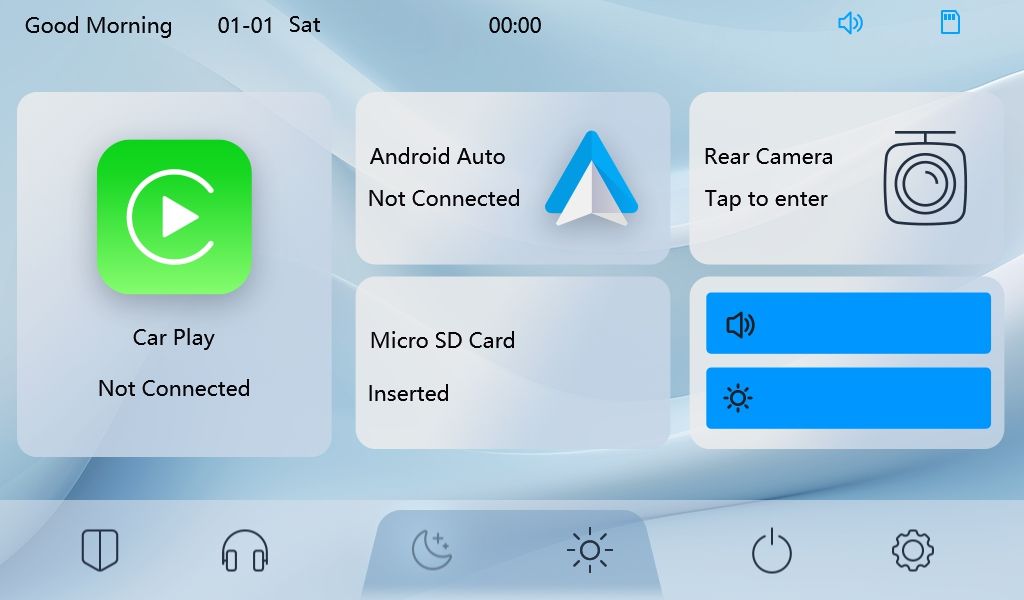

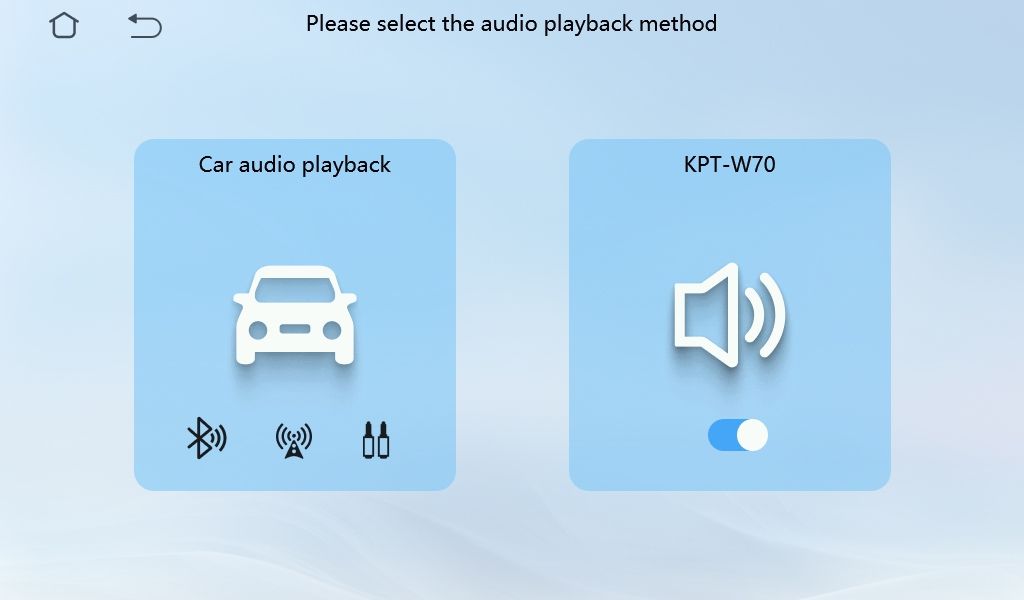

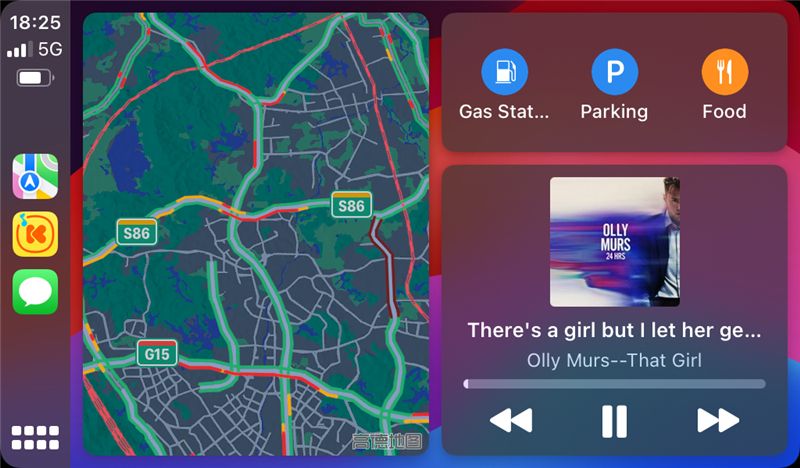

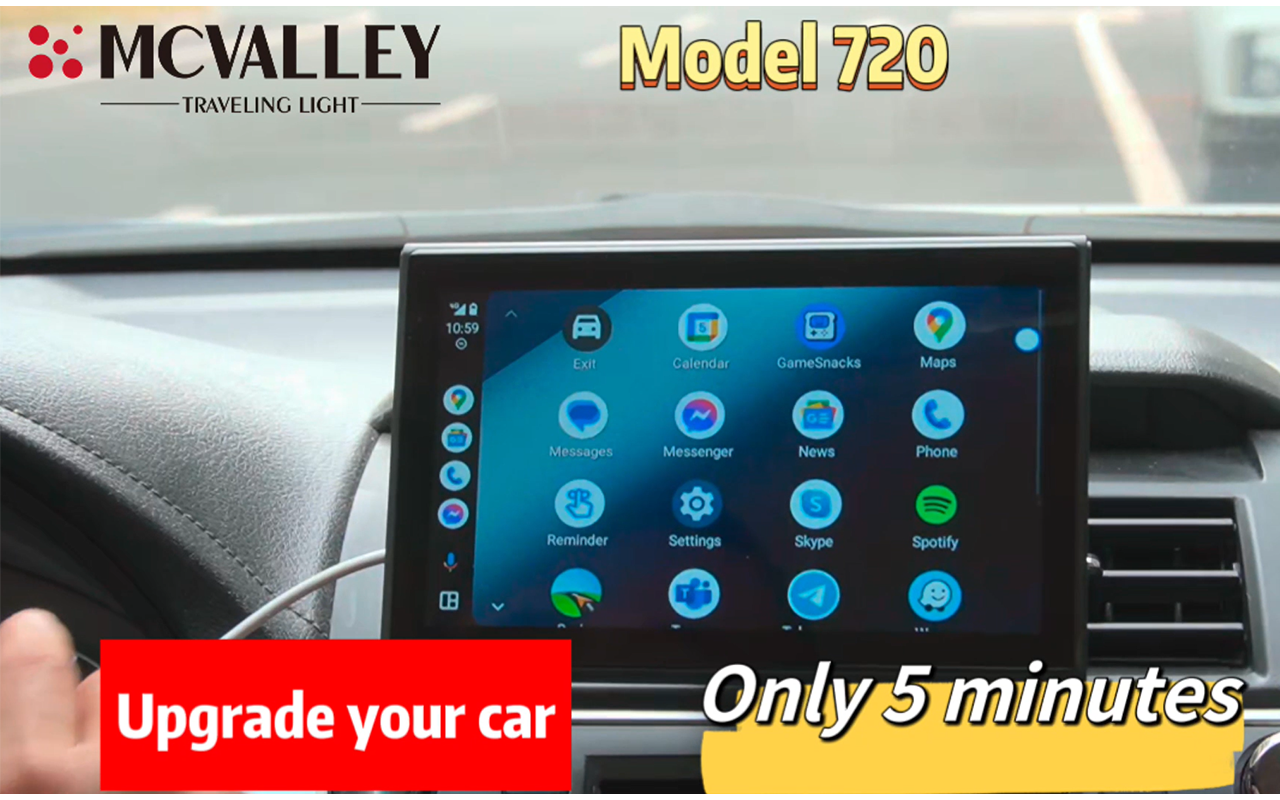

720 GUI

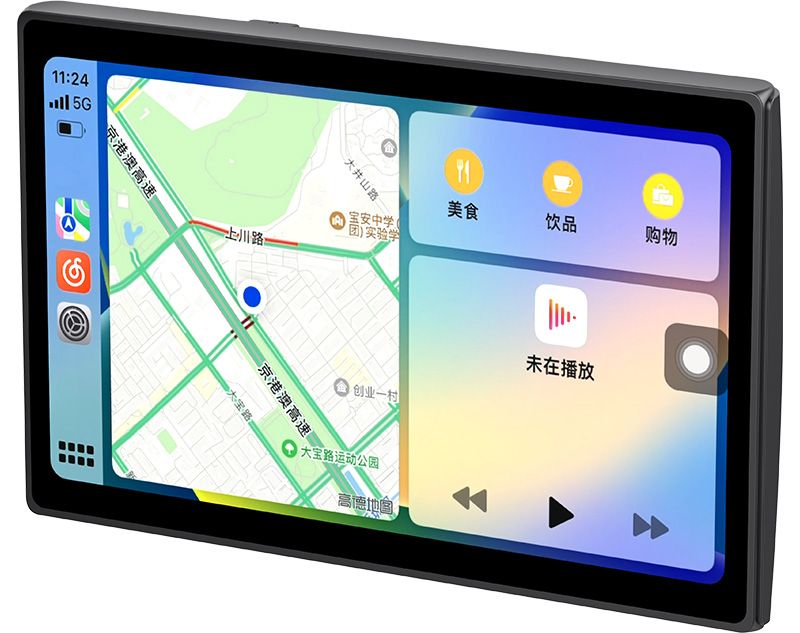

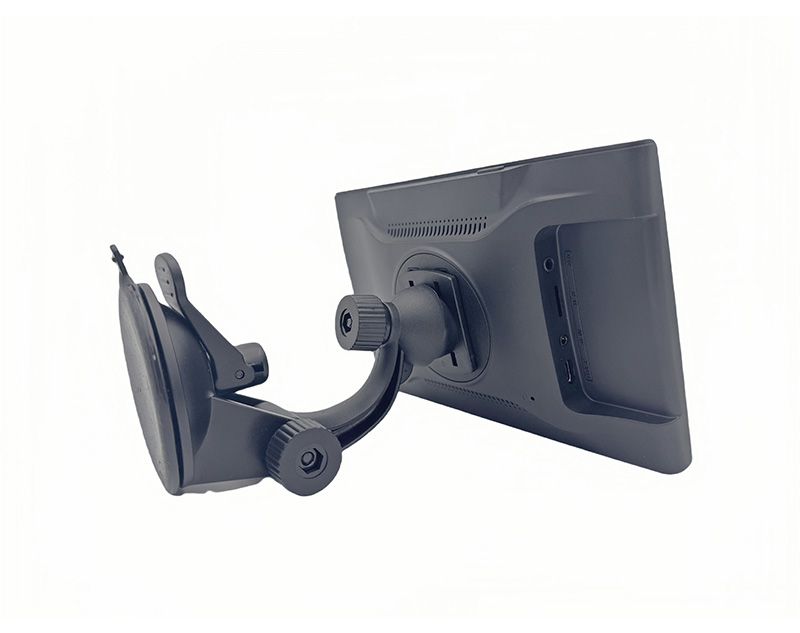

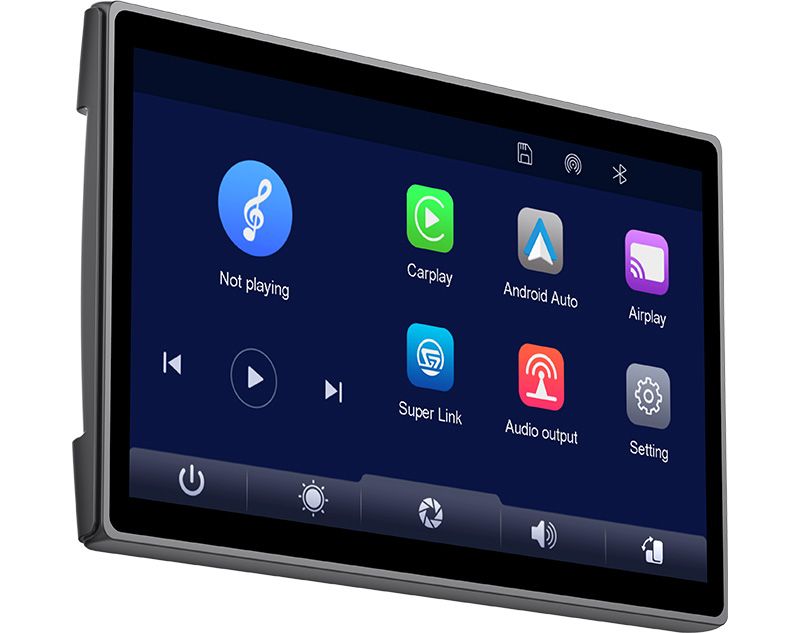

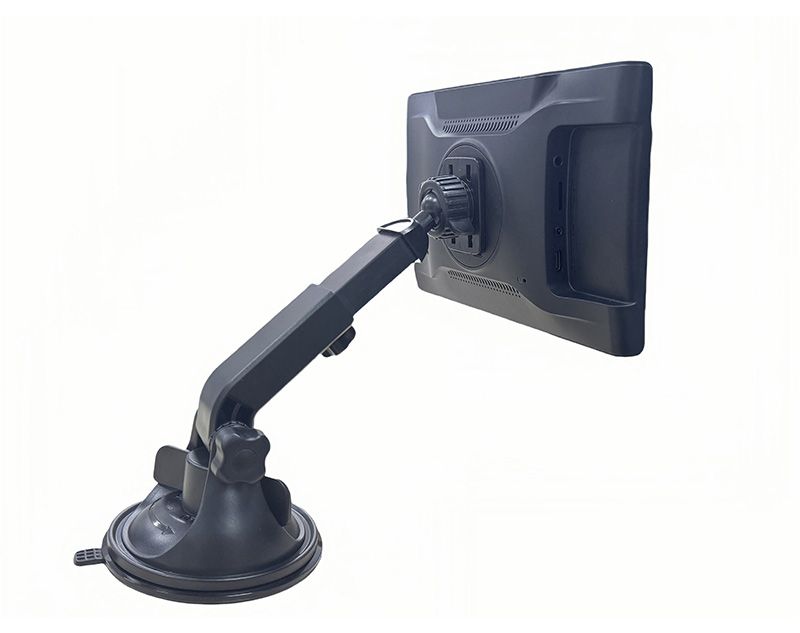

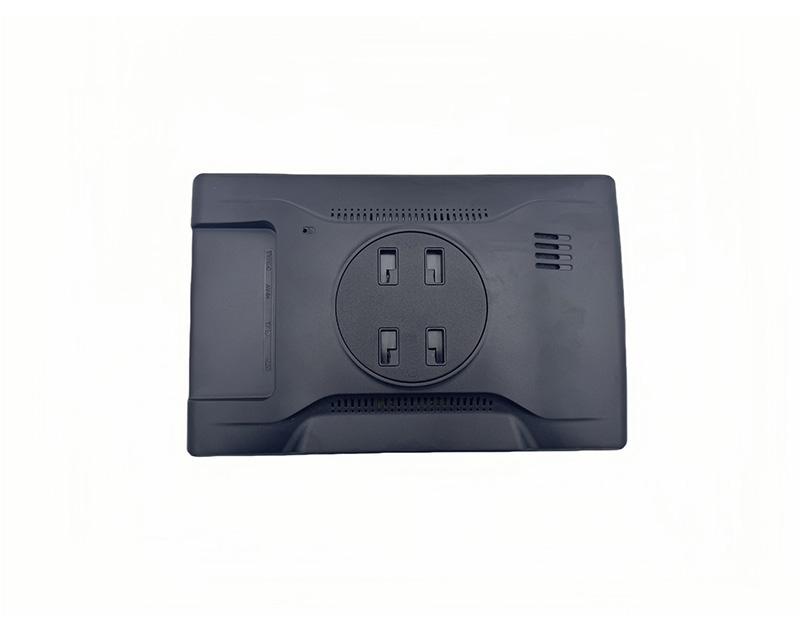

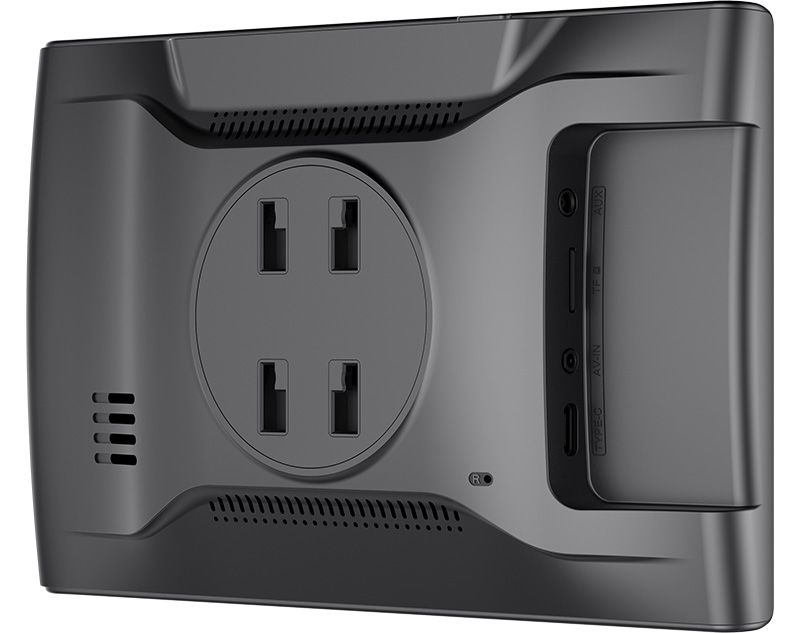

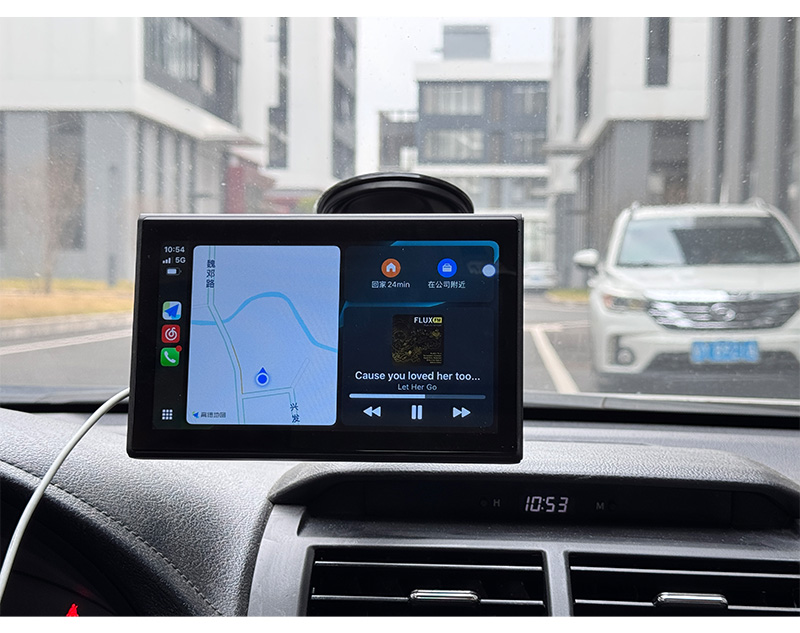

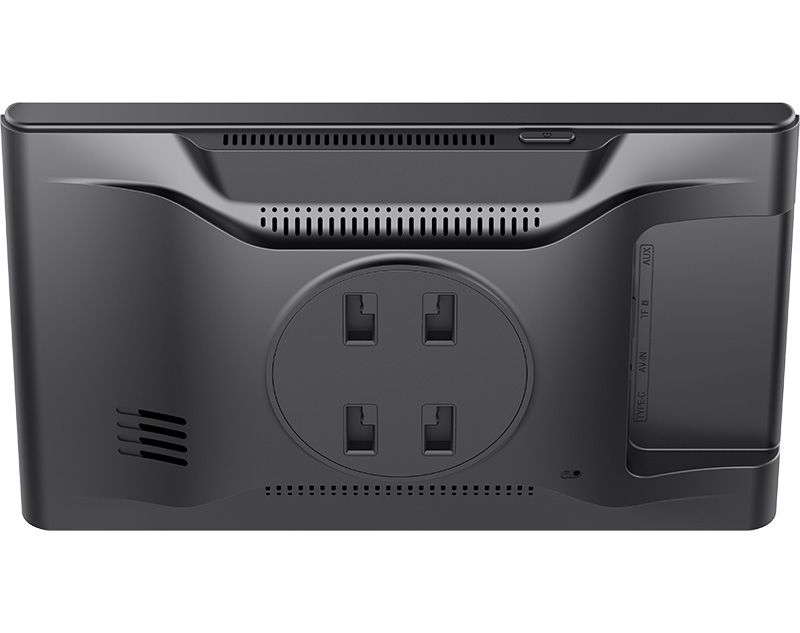

PRODUCT PHOTOS
SPECIFICATION
| 720 Specifications | ||
| General | ||
| Processor: | F133-B, RISC CPU | |
| FLASH： | 16MB | |
| DDR: | 64MB | |
| Display type: | Glass capacitive multi-touch IPS | |
| Display size&resolution: | 7.0inch, 1024*600 | |
| Display brightness: | 495Nit | |
| Battery： | NO | |
| Camera Features | ||
| Front lens | Resolution/FPS | N/A |
| Aperture/construction: | N/A | |
| Rear lens | Resolution/FPS | AHD 1080p/25fps |
| Aperture/construction: | F2.0/2G4P | |
| extention Cable length: | 5.5M | |
| Other features: | Switch to rear view image automatically while reversing, parking assistance line is adjustable | |
| Loop recording | N/A | |
| Parking monitor: | N/A | |
| Wireless connections&sensors | ||
| WiFi: | Support carplay or Android Auto | |
| BT: | 5.0 | |
| FM transmitter: | Yes | |
| GPS: | No | |
| G-sensor: | No | |
| I/O Ports | ||
| Mic: | Yes-Electret MIC-1.5*4MM, -34DB | |
| Speaker: | 8ohm,2W | |
| Voice command: | Via Siri/Google assistant | |
| AUX socket | Yes, 3.5mm | |
| Rear Camera connector: | 2.5mm socket | |
| Micro SD card slot: | Yes, up to 128GB | |
| External GPS antenna socket | N/A | |
| Power input： | Type C | |
| Physical Buttons: | Power, Reset | |
| Advanced features | ||
| Light sensor | N/A | |
| ADAS | N/A | |
| Power consumption: | ||
| Working voltage： | DC5V | |
| Working current： | <1A | |
| Quiescent current： | <10MA | |
| Power supply: | Car charger or hardwire kit(optional) | |
| Software and update | ||
| OS: | RTOS | |
| Firmware update: | Through Micro SD card, OTA will be available in future | |
| Environment | ||
| Operating Temp： | （-10℃-70℃） | |
| Storage Temp： | （-20℃-80℃） | |
| Mechanical; | ||
| Product dimensions: | 17.5*11.2*2.7cm | |
| Product weigiht: | 343g | |

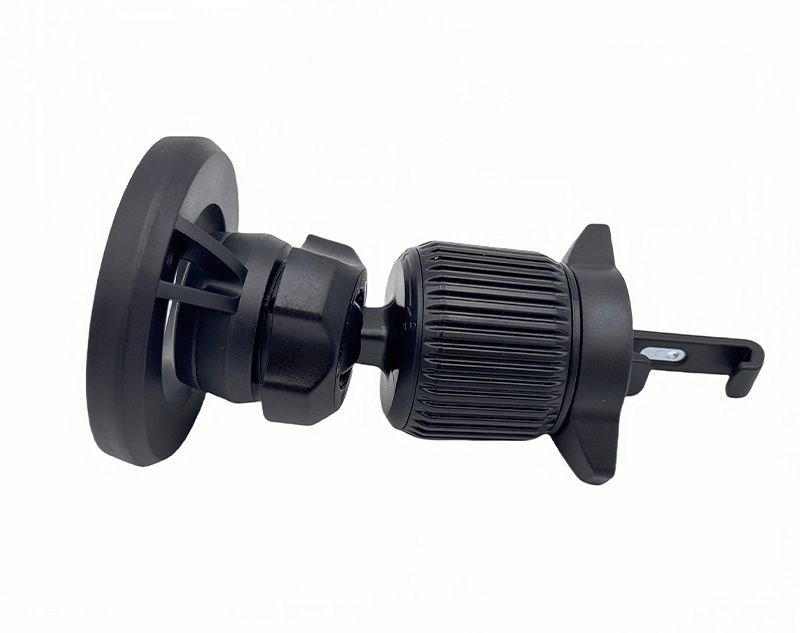

| Install method: | Suction mount, dashboard mount, airvent mount | |
In The Box
Main device
Suction Mount

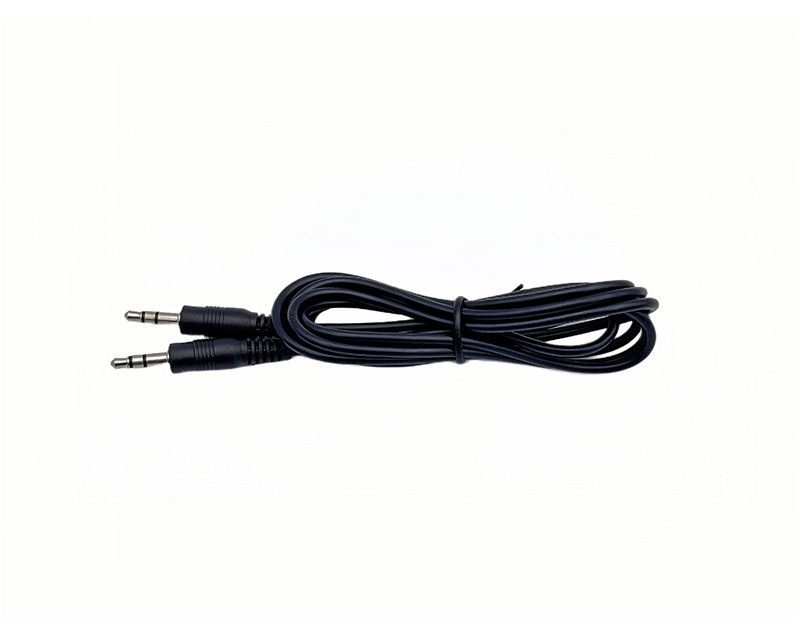

AUX cable

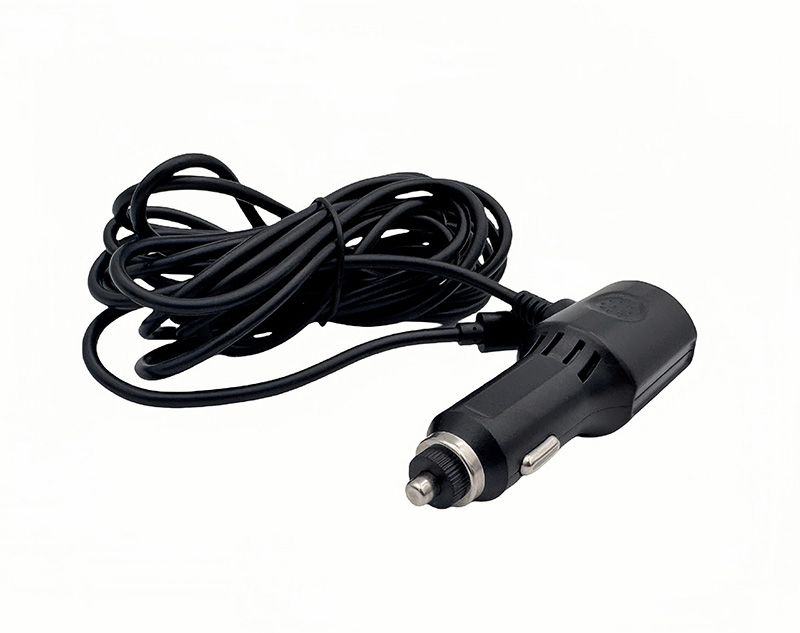

Car Charger
User Manual
Accessories
ALL IN ALL, WE CARE THE CUSTOMER EXPERIENCE A LOT, AND WE PAY BIG EFFORT TO MAKE OUR PRODUCT BEST POSSIBLE.
