Smart Rear Mirror M112

This universal rear mirror fits all vehicle models and offers two installation options: OE-fit mount or straps for a secure fit. Featuring an 11.26-inch widescreen, it provides a clear view of the road. Equipped with dual-channel recording, LOOP RECORDING, and PARKING MONITOR functions, this mirror ensures comprehensive coverage and security while parked. Upgrade your driving experience with this advanced rear mirror.

USP

01 01

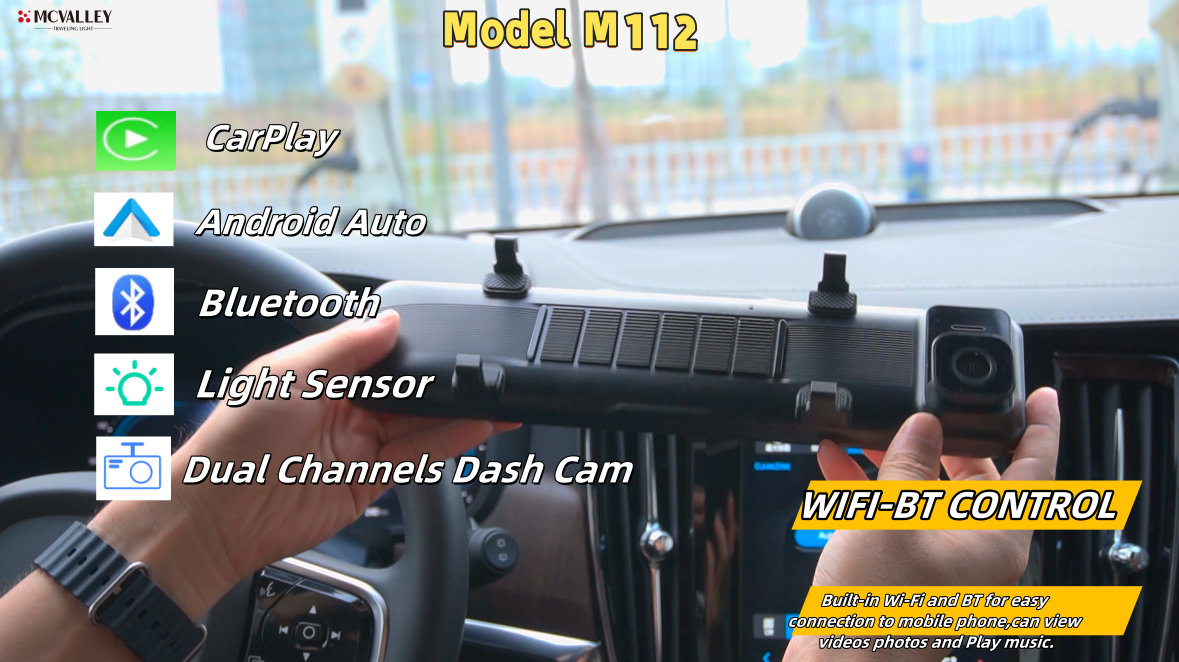

Supporting CarPlay and Android Auto, allows users to connect their smartphones to the rear mirror via wireless or wired connections, enabling seamless synchronization and interaction between the phone and the car
02 02

Boasting 11.26-inch large widescreen display, this rear mirror provides a crystal-clear view of the road ahead
03 03

Equipped with a dual-channel recorder, this rearview mirror allows for simultaneous front and rear recording, capturing every moment of your journey in stunning detail.
04 04

The LOOP RECORDING feature ensures that your device continuously records new footage by automatically overwriting the oldest files when the memory is full, so you never miss out on important moments.
05 05

Providing Parking monitoring, allows the rear view mirror to continue recording video when the vehicle is parked.

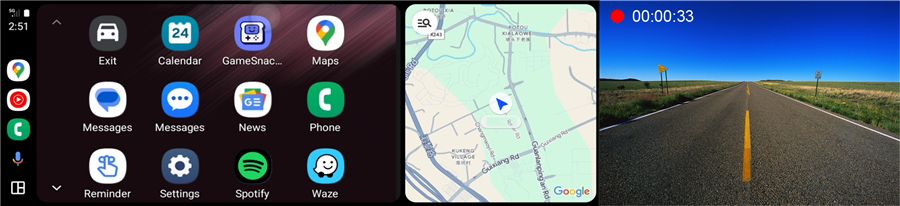

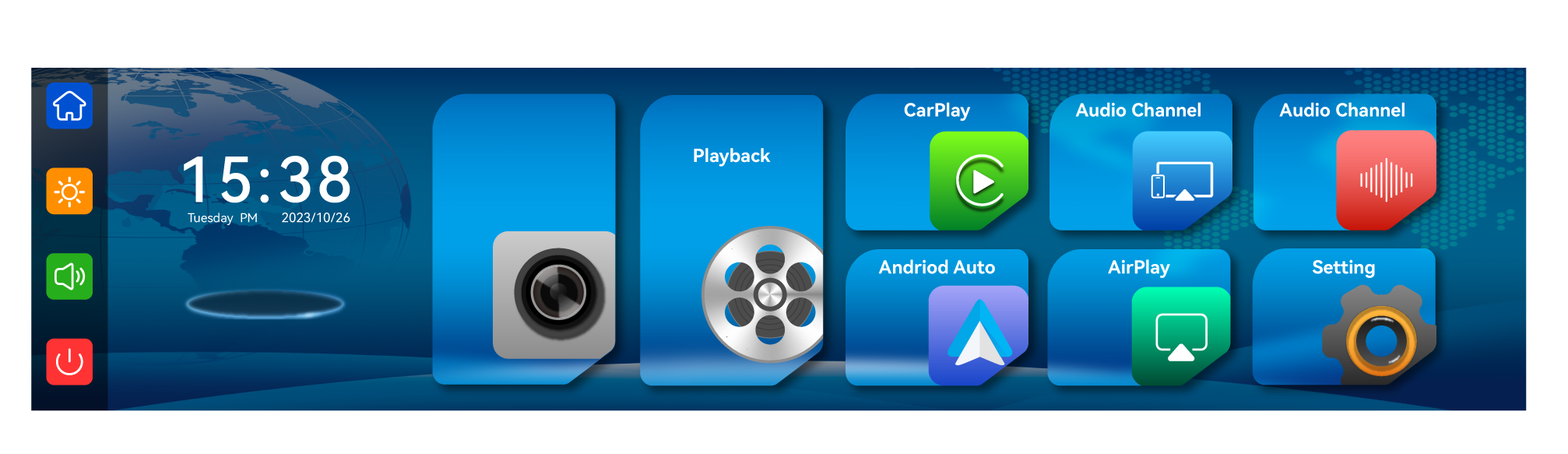

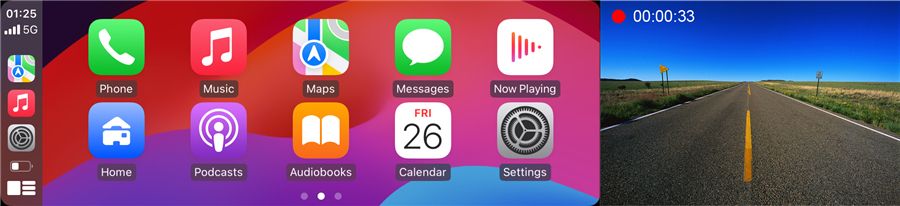

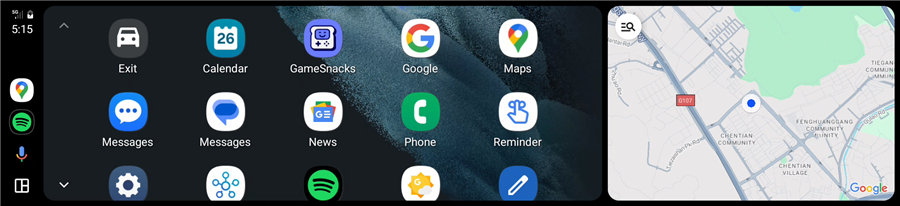

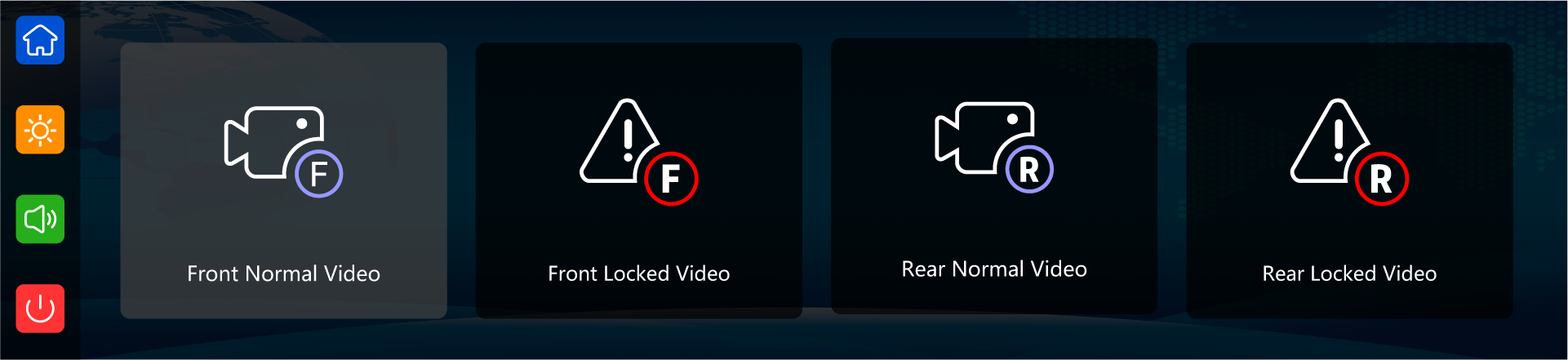

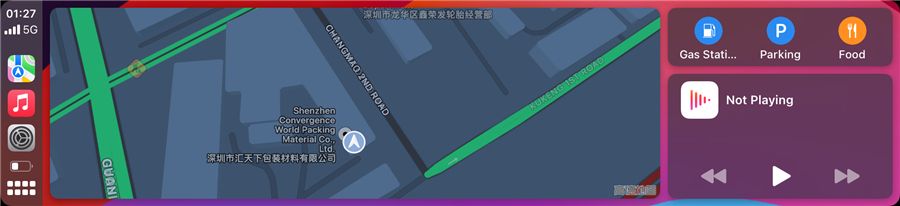

M112 GUI

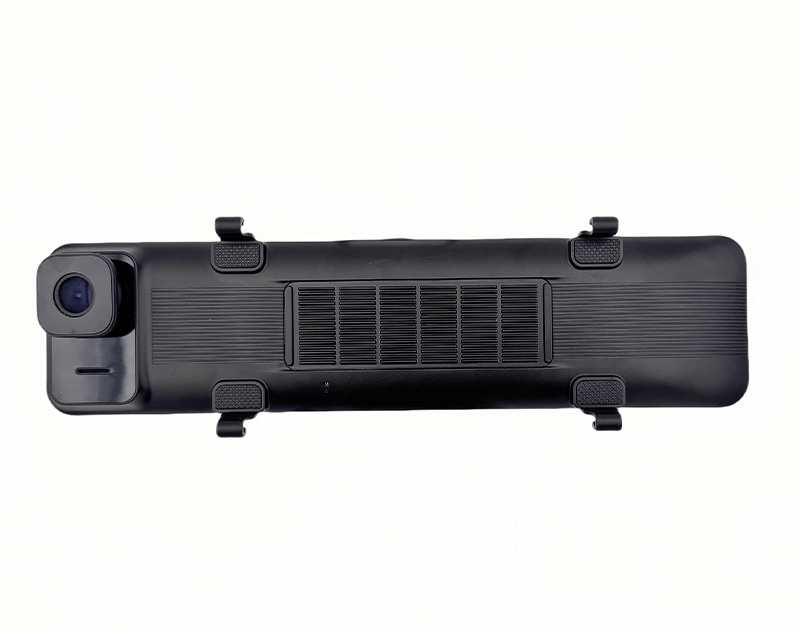

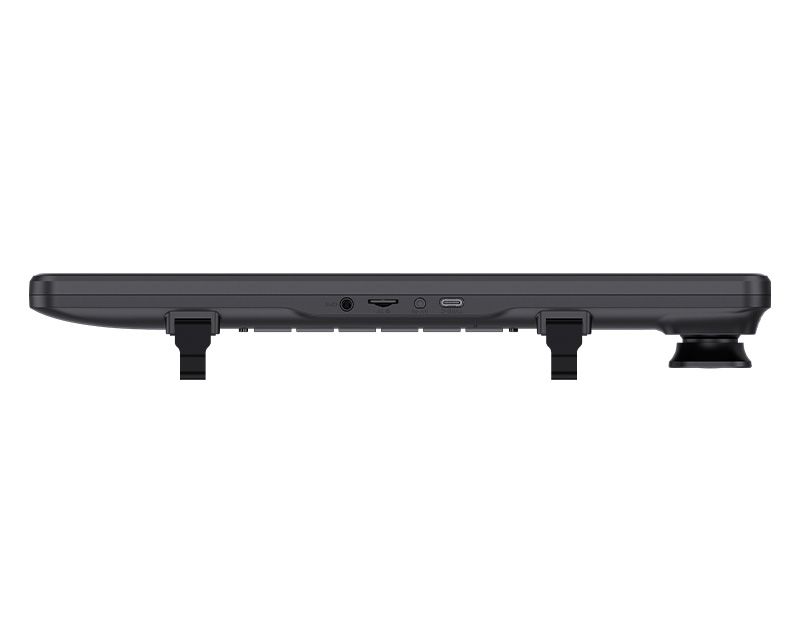

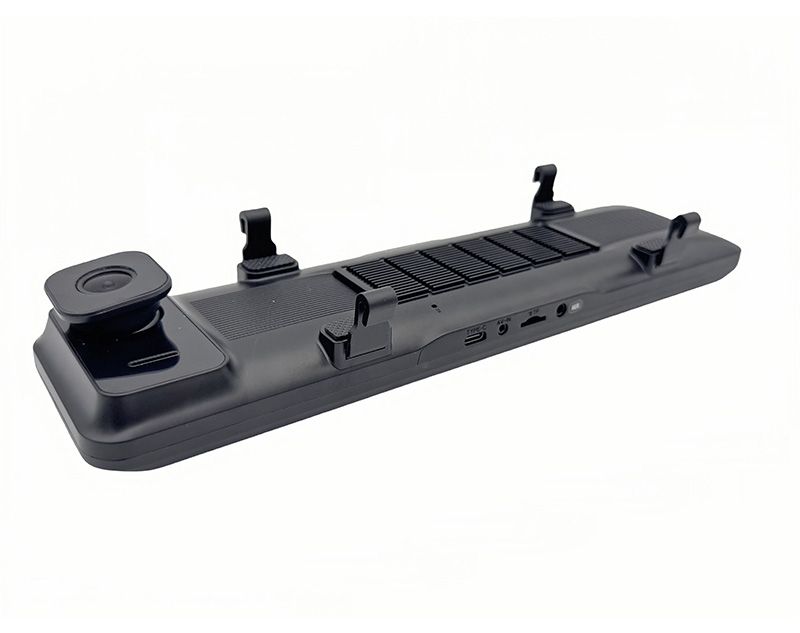

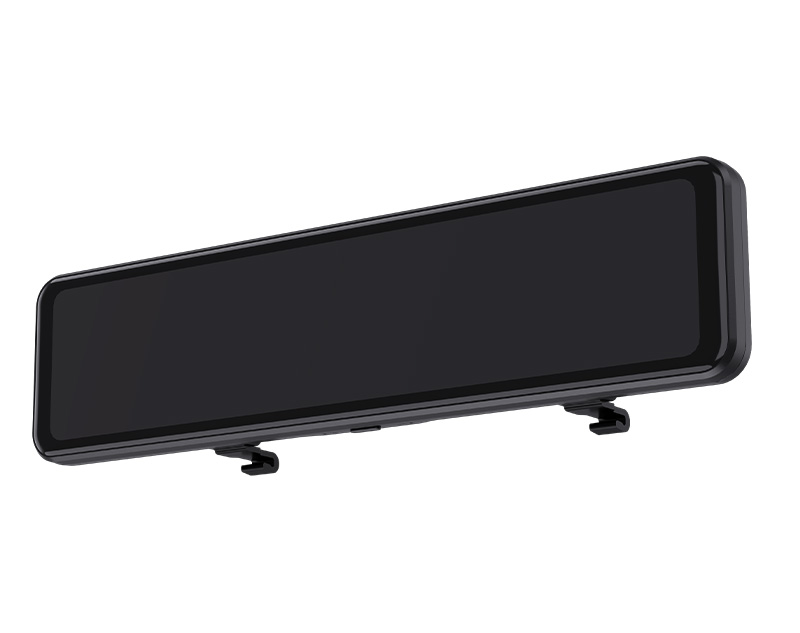

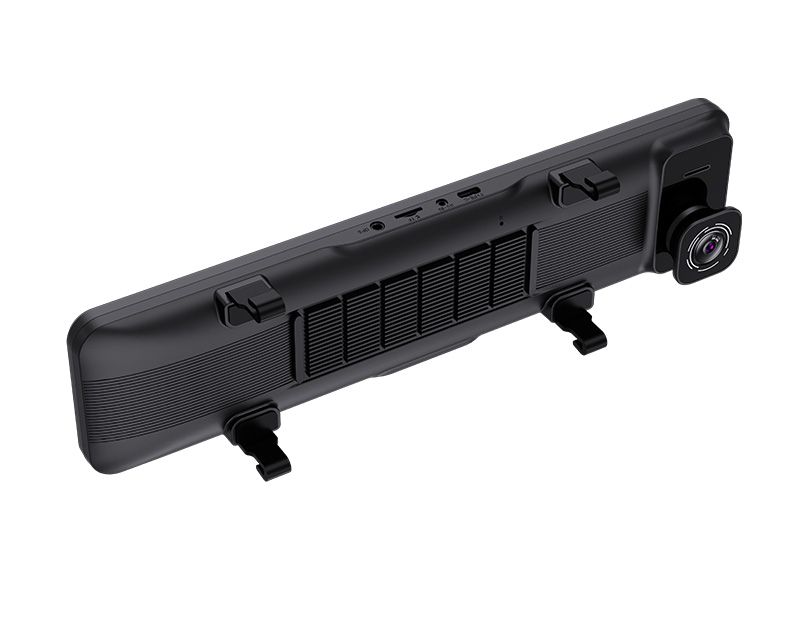

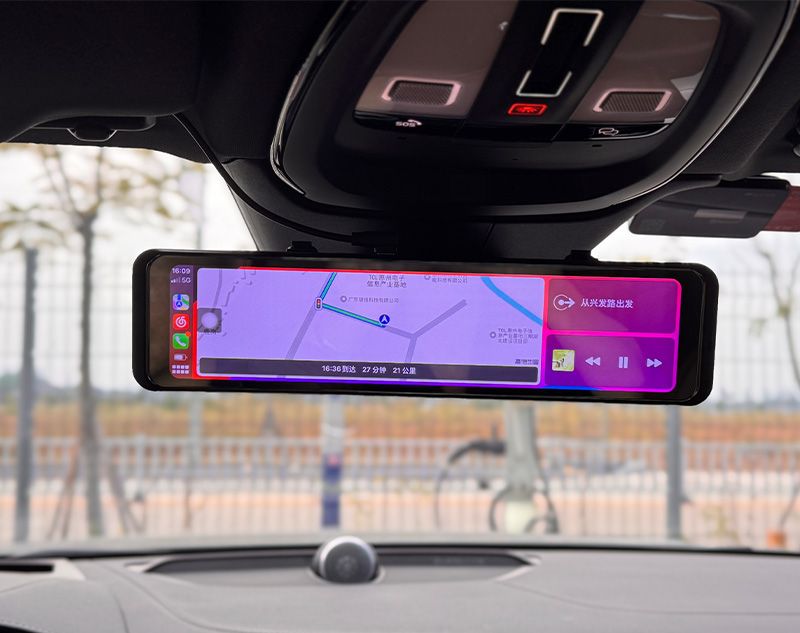

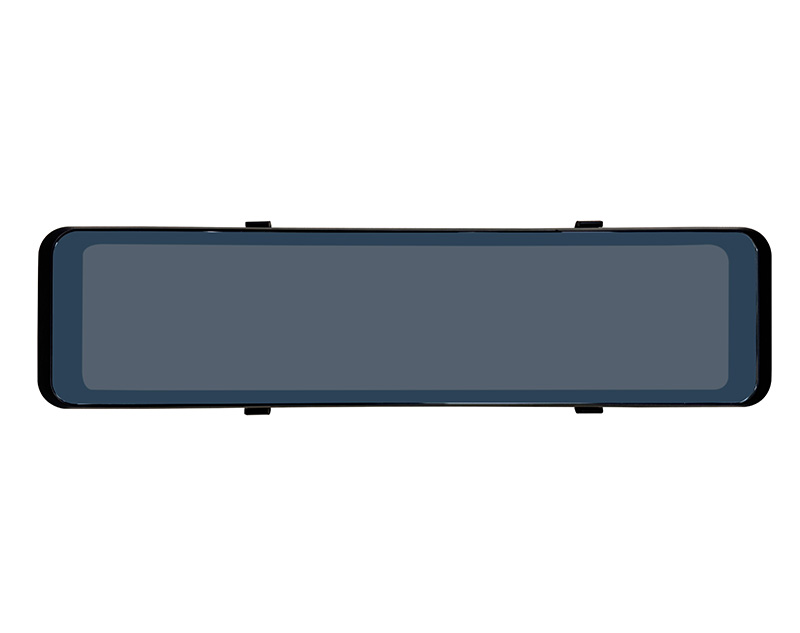

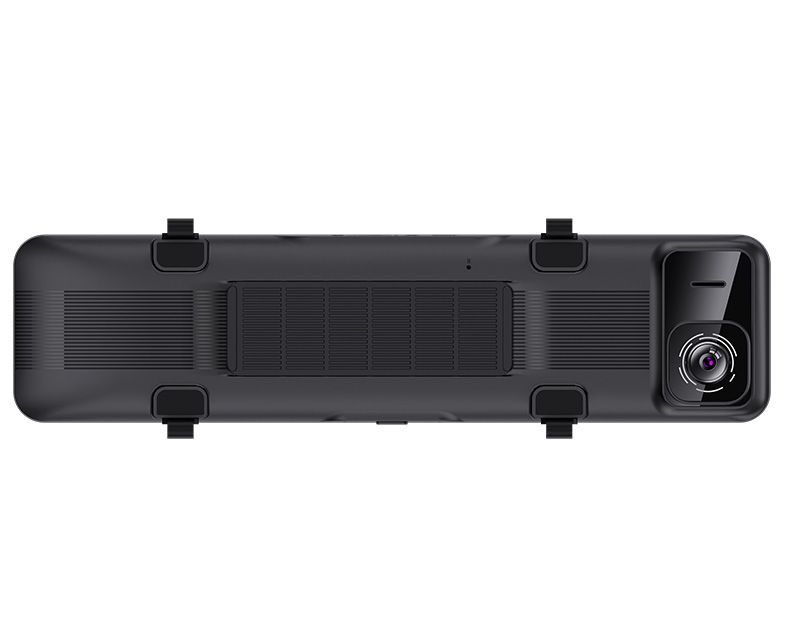

PRODUCT PHOTOS

SPECIFICATION

M112 Specifications
General
Processor:		Dual core A53-1.2Ghz
FLASH：		128MB
DDR:		256MB
Display type:		Glass capacitive multi-touch IPS
Display size&resolution:		11.26inch, 1920*440
Display brightness:		450Nit
Battery：		Cell battery（for RTC）
Camera Features
Front lens	Resolution/FPS	Onboard type, 1080p/25fps
	Aperture/construction:	F2.0/2G2P
Rear lens	Resolution/FPS	AHD 1080p/25fps
	Aperture/construction:	F2.0/2G4P
	extention Cable length:	5.5M
	Other features:	Switch to rear view image automatically while reversing, parking assistance line is adjustable
Loop recording		yes, 1min/3min/5min
Parking monitor:		Optional (has to be used together with 3 wires hardwire kit)
Wireless connections&sensors
WiFi:		Support carplay or Android Auto
BT:		4.2
FM transmitter:		Yes
GPS:		No
G-sensor:		Yes
I/O Ports
Mic:		Yes-Electret MIC-1.5*4MM, -34DB
Speaker:		8ohm,2W
Voice command:		Via Siri/Google assistant
AUX socket		Yes, 3.5mm
Rear Camera connector:		2.5mm socket
Micro SD card slot:		Yes, up to 256GB
External GPS antenna socket		N/A
Power input：		Type C
Physical Buttons:		Power, Reset
Advanced features
Light sensor		Through front camera lens
ADAS		Optional
Power consumption:
Working voltage：		DC5V
Working current：		<1A
Quiescent current：		<10MA
Power supply:		Car charger or hardwire kit(optional)
Software and update
OS:		LINUX 4.9
Firmware update:		Through Micro SD card, OTA will be available in future
Environment
Operating Temp：		（-10℃-70℃）
Storage Temp：		（-20℃-80℃）
Mechanical;
Product dimensions:		29.3*7.2cm（11.5″ x 2.8″ x 11.26″)
Product weigiht:		433g
Install method:		Fastener Clips

In The Box

Main device

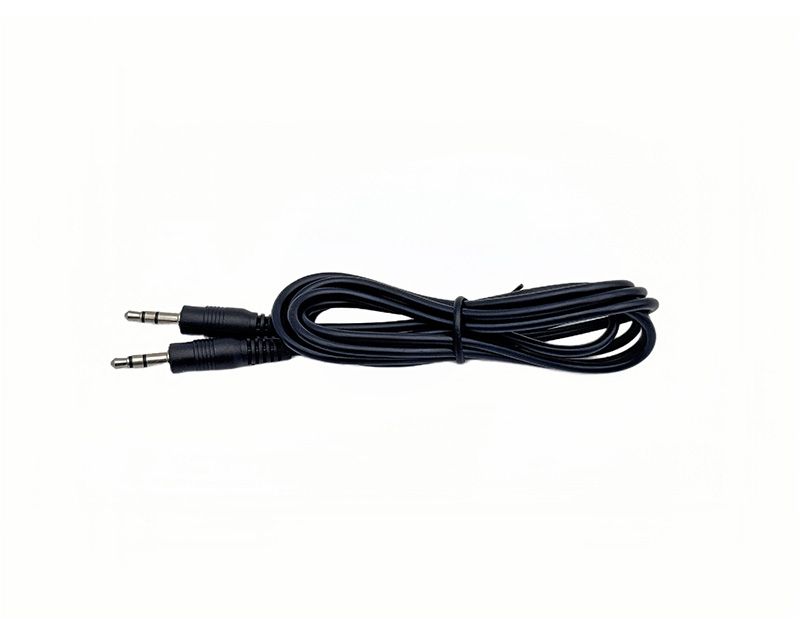

AUX cable

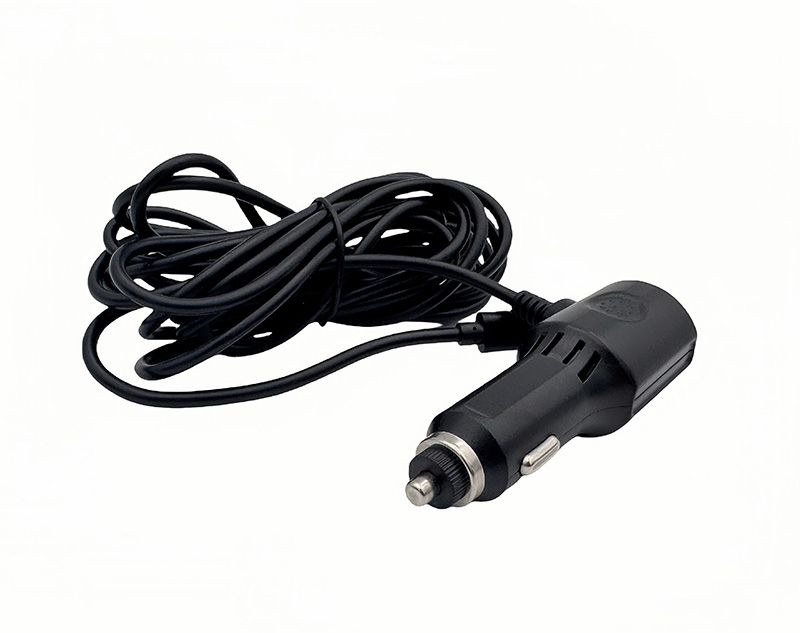

Car Charger

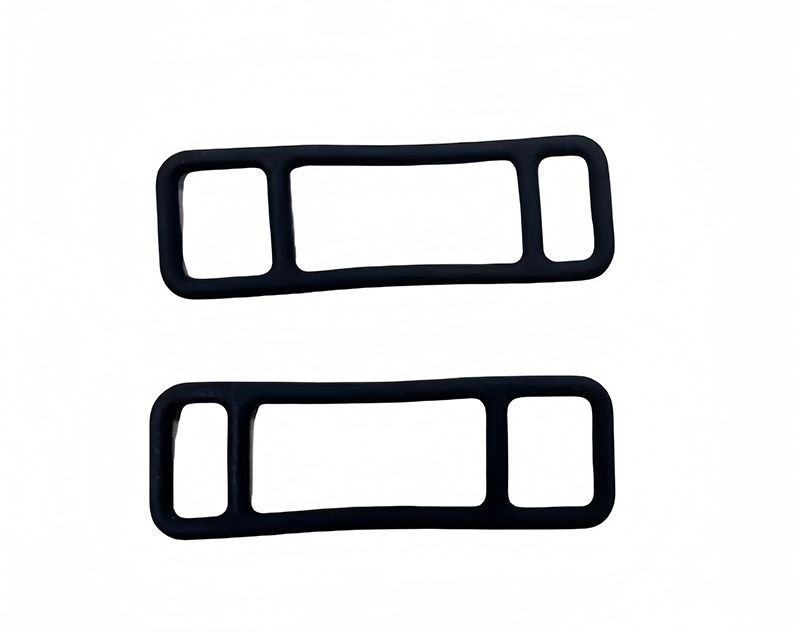

Fastener Clips

User Manual

Accessories
