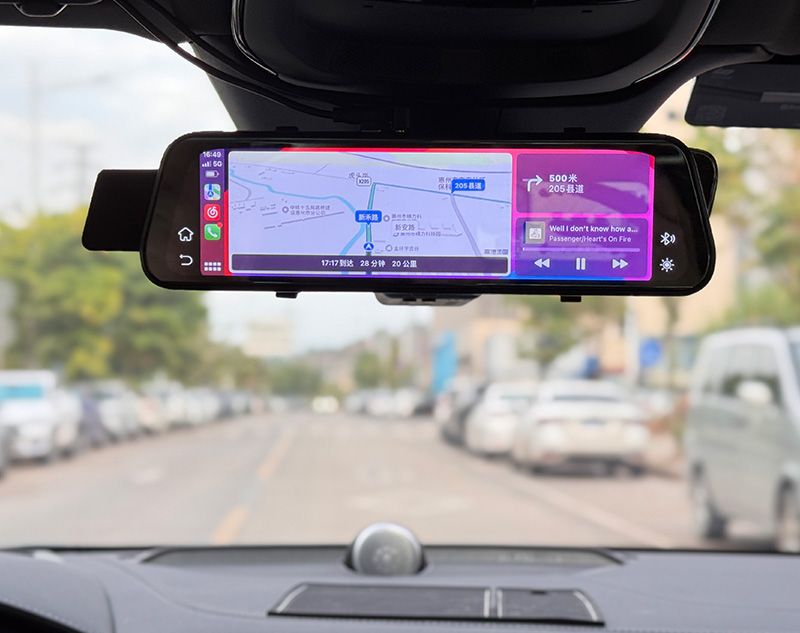

Smart Rear Mirror M096

The Smart Rear Mirror a smart driving recorder that blends advanced technology with convenient installation options, tailored for modern drivers. It not only offers clear driving recording capabilities but also integrates wireless/wired Apple CarPlay and Android Auto connectivity, enhancing the driving experience with intelligence and safety.

USP

01

Supporting CarPlay and Android Auto, allows users to connect their smartphones to the rear\mirror via wireless or wired connections, enabling seamless synchronization and interaction between the phone and the car
02

Offering Dual Cameras and Loop Recording, provide comprehensive driving views and reliable video recording
03

Providing Parking monitoring, allows the rear mirror to continue recording video when the vehicle is parked, often in a low-power mode.
04

This feature helps owners monitor their vehicle's surroundings, preventing theft or damage

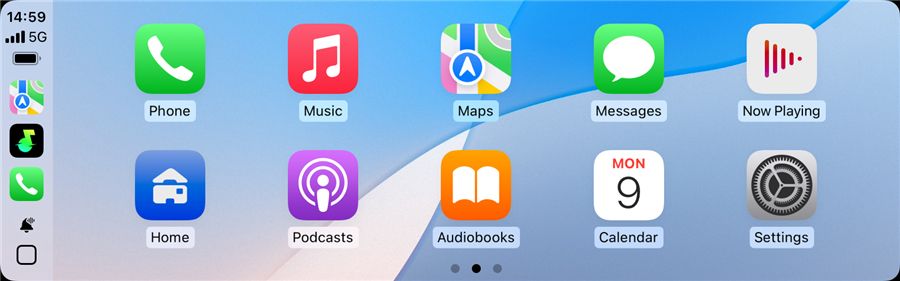

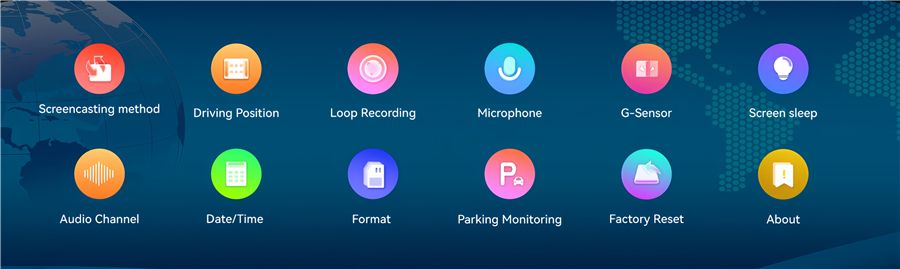

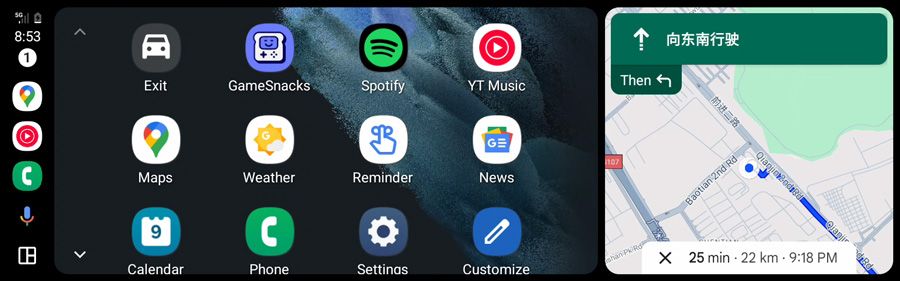

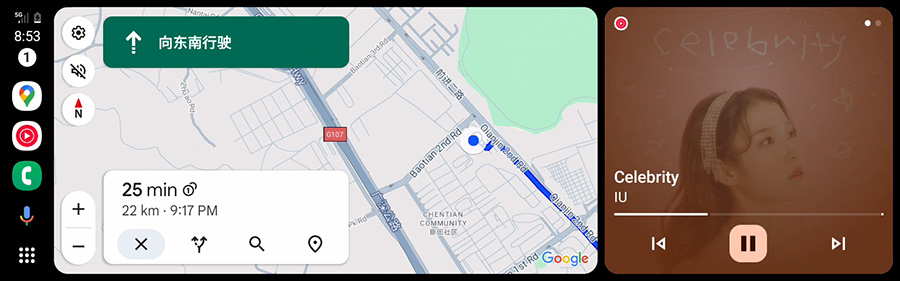

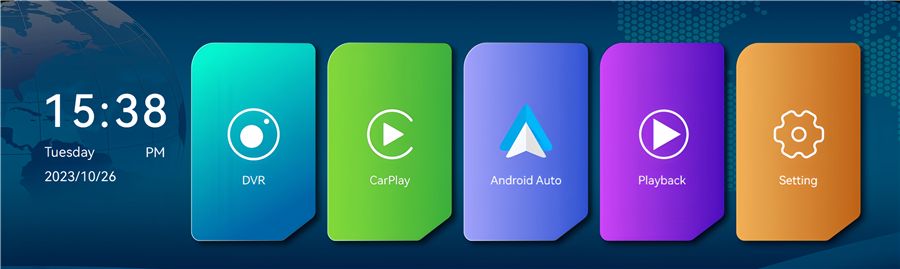

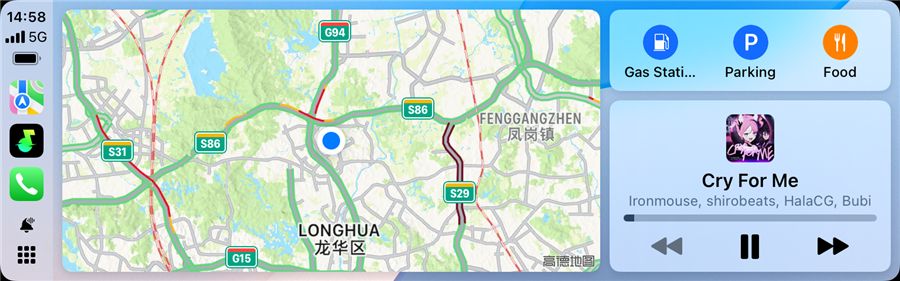

M096 GUI

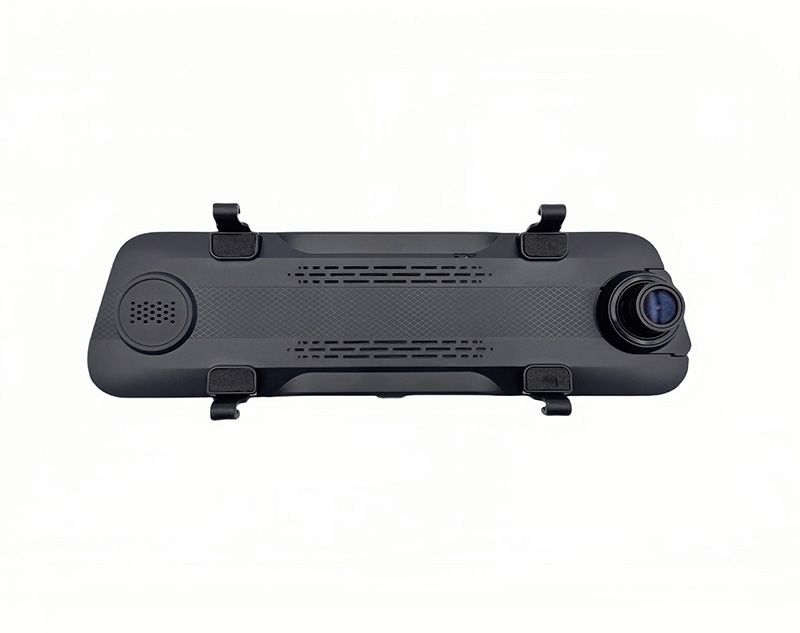

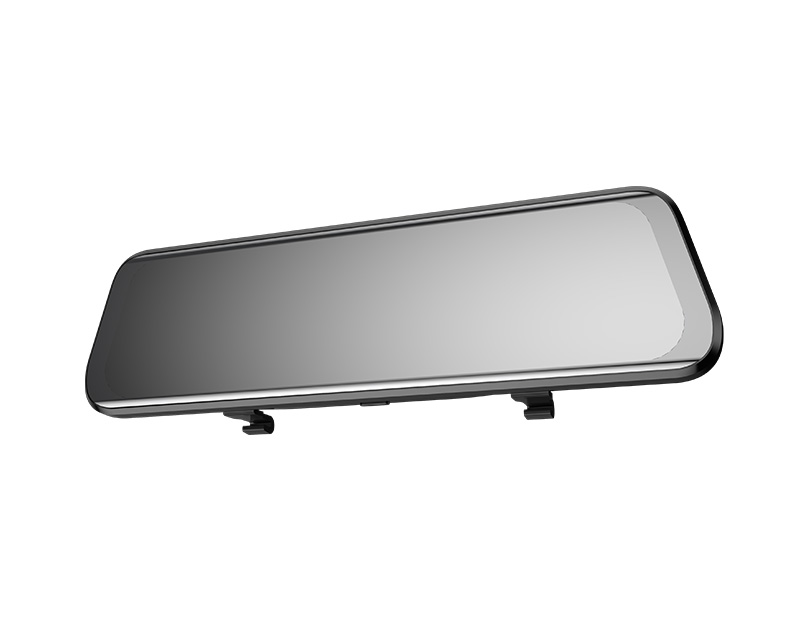

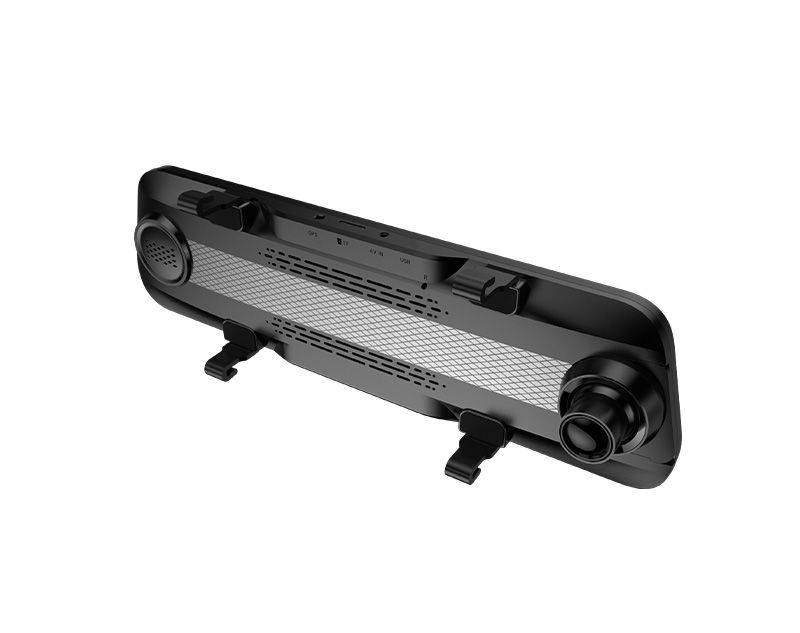

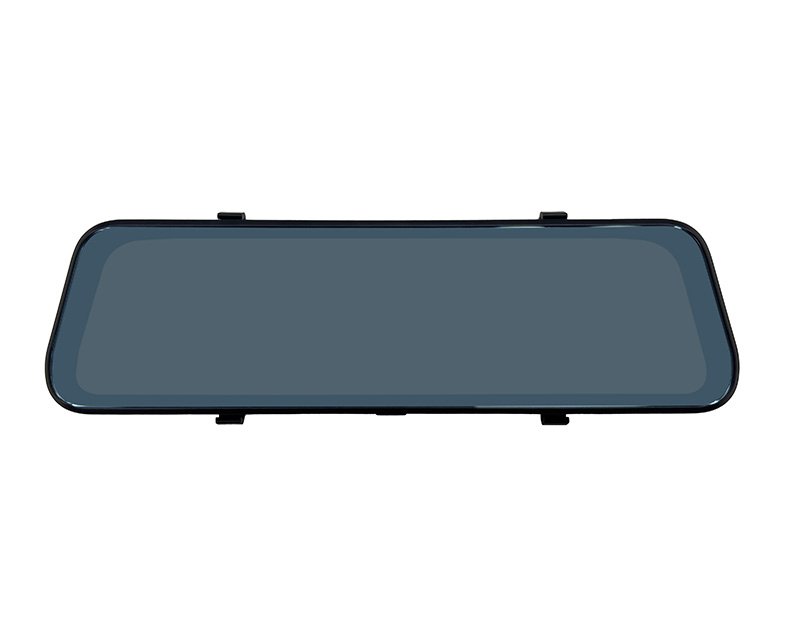

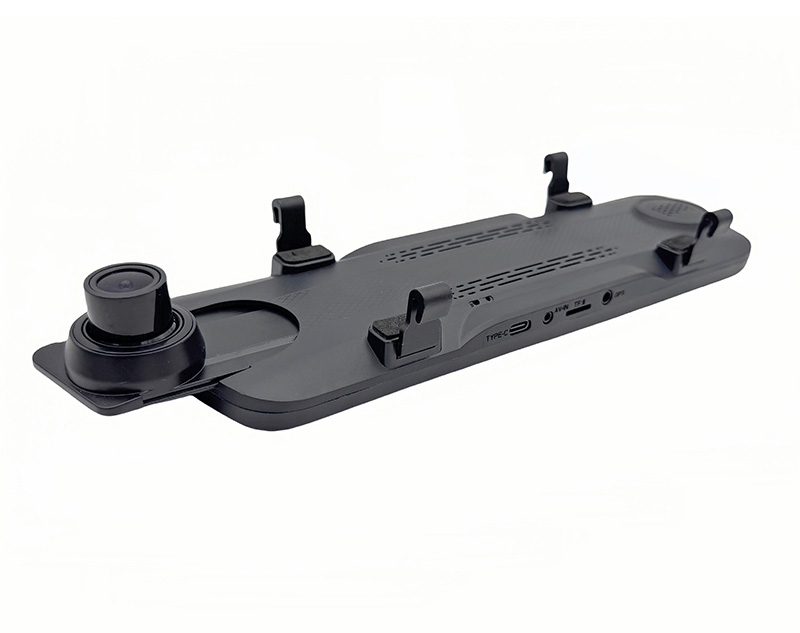

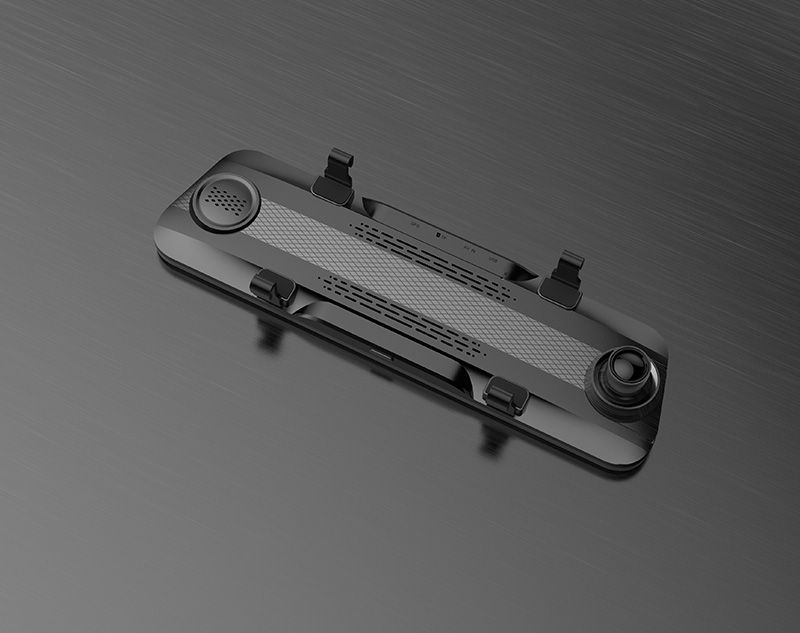

PRODUCT PHOTOS

SPECIFICATION

M096 Specifications
General
Processor:		Dual core A53-1.2Ghz
FLASH：		128MB
DDR:		256MB
Display type:		Glass capacitive multi-touch IPS
Display size&resolution:		9.66inch, 1280*320
Display brightness:		500Nit
Battery：		Cell battery （for RTC）
Camera Features
Front lens	Resolution/FPS	Onboard type, 1080p/25fps
	Aperture/construction:	F2.0/2G2P
Rear lens	Resolution/FPS	AHD 1080p/25fps
	Aperture/construction:	F2.0/2G4P
	extention Cable length:	5.5M
	Other features:	Switch to rear view image automatically while reversing, parking assistance line is adjustable
Loop recording		yes, 1min/3min/5min
Parking monitor:		optional (has to be used together with 3 wires hardwire kit)
Wireless connections&sensors
WiFi:		Support carplay or Android Auto
BT:		4.2
FM transmitter:		Yes
GPS:		no
G-sensor:		Yes
I/O Ports
Mic:		Yes-Electret MIC-1.5*4MM, -34DB
Speaker:		8ohm,2W
Voice command:		Via Siri/Google assistant
AUX socket		Yes, 3.5mm
Rear Camera connector:		2.5mm socket
Micro SD card slot:		Yes, up to 256GB
External GPS antenna socket		N/A
Power input：		Type C
Physical Buttons:		Power, Reset
Advanced features
Light sensor		through front camera lens
ADAS		Optional
Power consumption:
Working voltage：		DC5V
Working current：		<1A
Quiescent current：		<10MA
Power supply:		Car charger or hardwire kit(optional)
Software and update
OS:		LINUX 4.9
Firmware update:		Through Micro SD card, OTA will be available in future
Environment
Operating Temp：		（-10℃-70℃）
Storage Temp：		（-20℃-80℃）
Mechanical;
Product dimensions:		28.971.73*2.45
Product weigiht:		430g
Install method:		Fastener Clips，0E-fit Mount.

In The Box

Main device

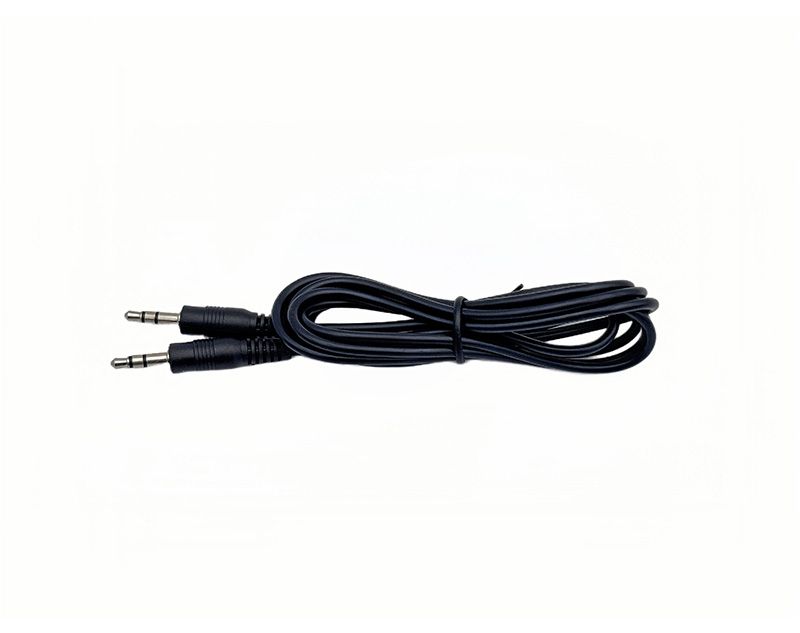

AUX cable

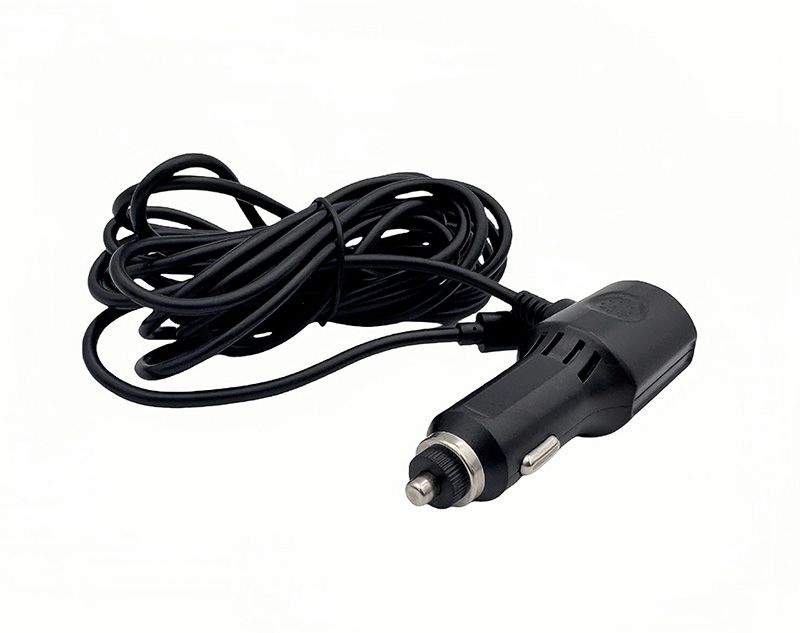

Car Charger

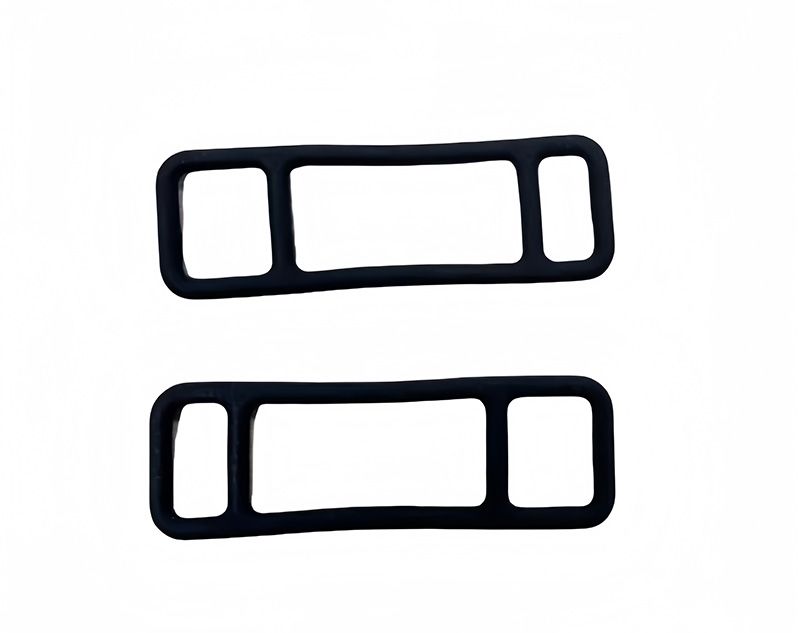

Fastener Clips

User Manual

Accessories
