DESIGN KN3 Android
Motorcycle Monitor 623S
Motorcycle Carplay supports Wireless CarPlay and Android Auto
Display size
This motorcycle carplay employs Android OS 13 and Quad-Core SoC，supports both Apple and Android, features HD 1080P 30FPS 140° wide-angle front and rear cameras, boasts P67 waterproof & anti-theft protection,and includes tire pressure monitoring for enhanced safety. Equipped withGPS and Light-Sensor. Installing the Portable CarPlay screen on your motorcycle is effortless with the provided bracket kits and tools.
USP
-
01
Cutting-Edge Technology with Android OS 13 and Quad-Core SoC, 4GB+64GB Memory
-
02
3.Supporting CarPlay and Android Auto, providing universal compatibility with your smartphone
-
03
6.3 inch moto screen is equipped with HD 1080P 60FPS 140° wide-angle front and rear cameras, allowing you to clearly see the road conditions in front and behind your vehicle, making driving safer
-
04
IP67 Waterproof & Anti-theft.IP67 waterproof, can withstand various weather conditions. Equipped with special anti-theft screws and nuts.
-
05

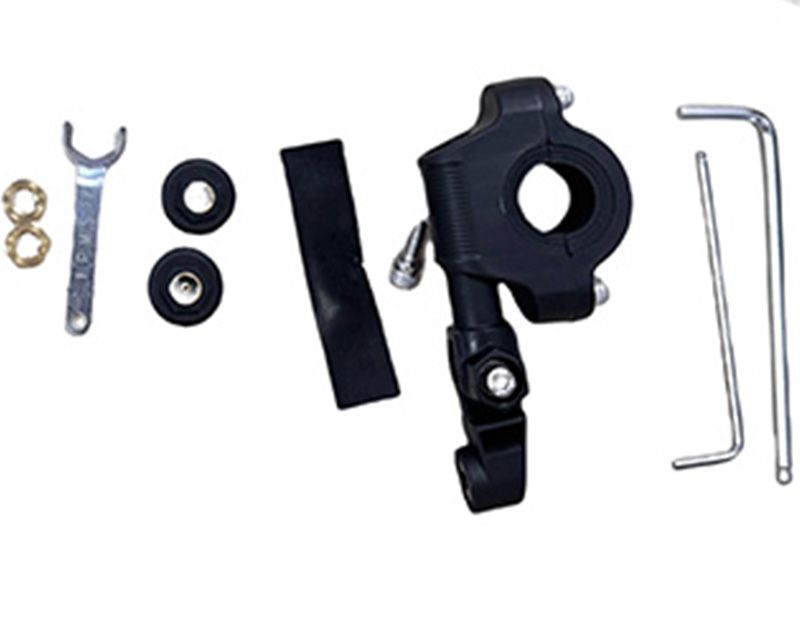

Universal Compatibility,Easy Installation, motorcycle camera carplay kit bracket kits and tools for easy mounting.
-
06
.Precision GPS Positioning: Stay on course with unparalleled accuracy thanks to the precise GPS positioning system.

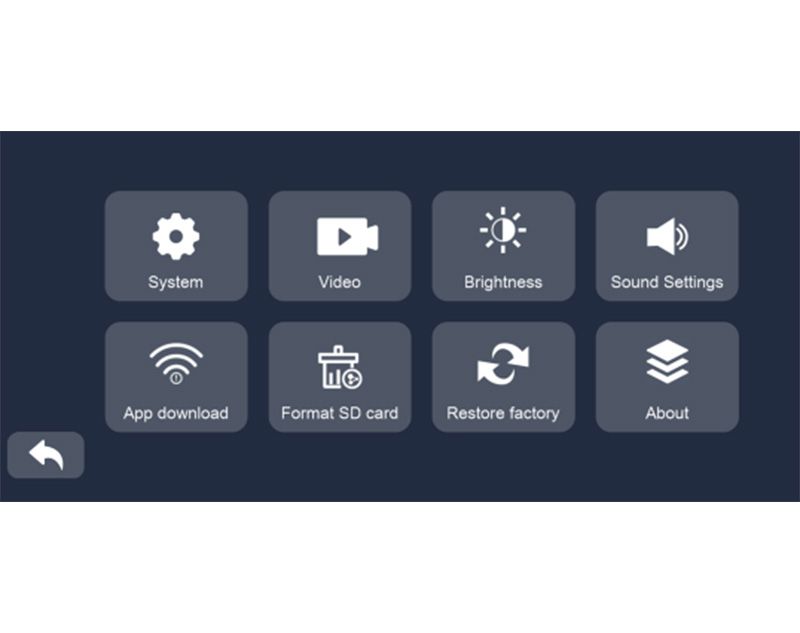

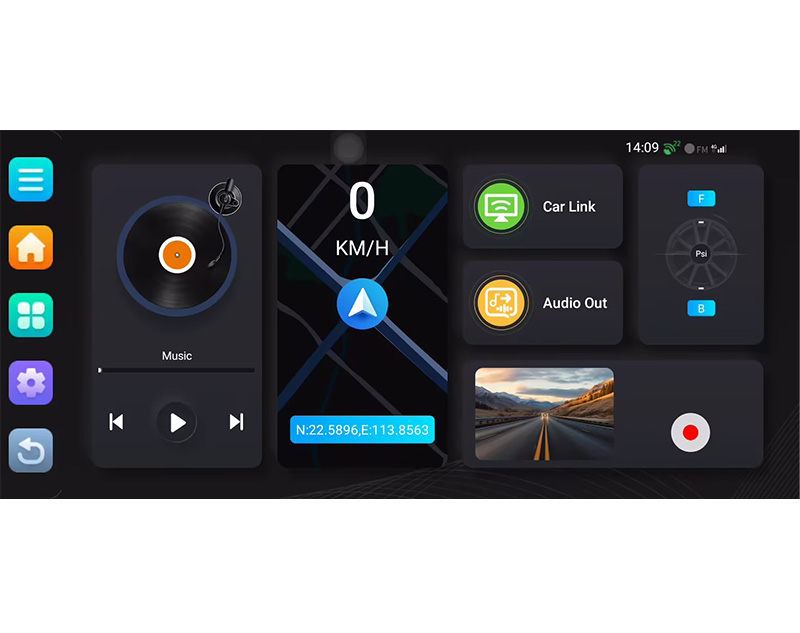

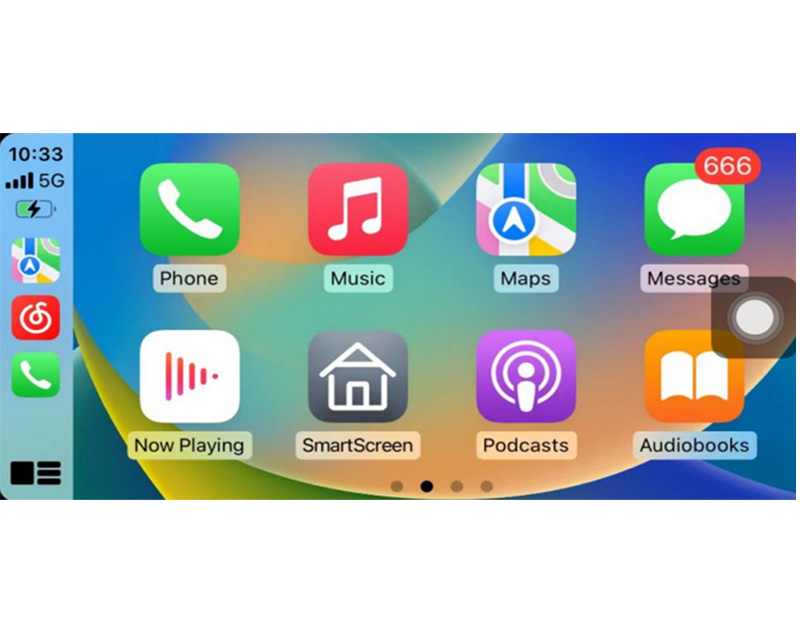

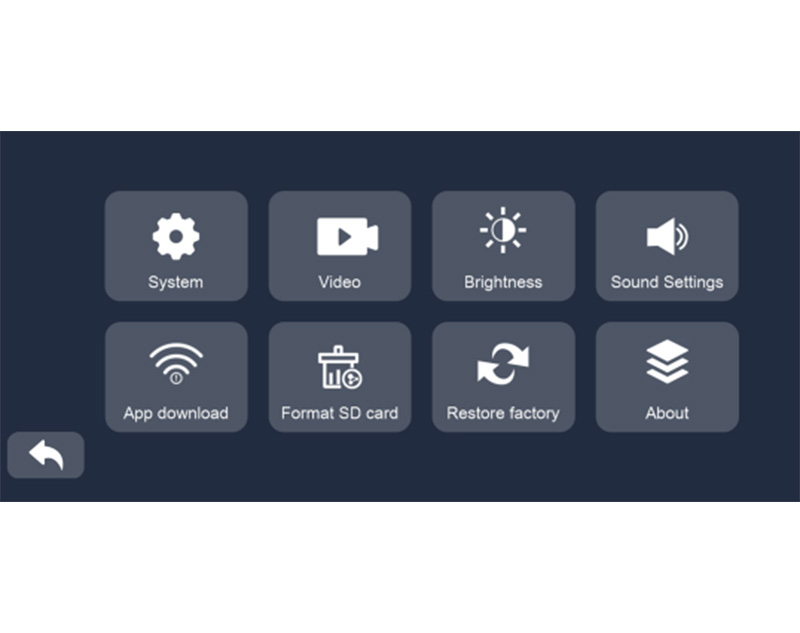

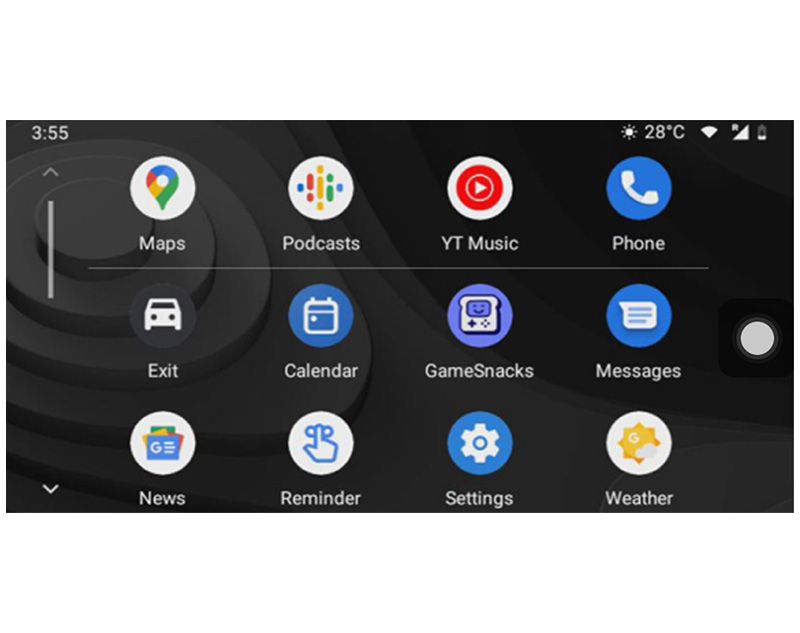

623S GUI

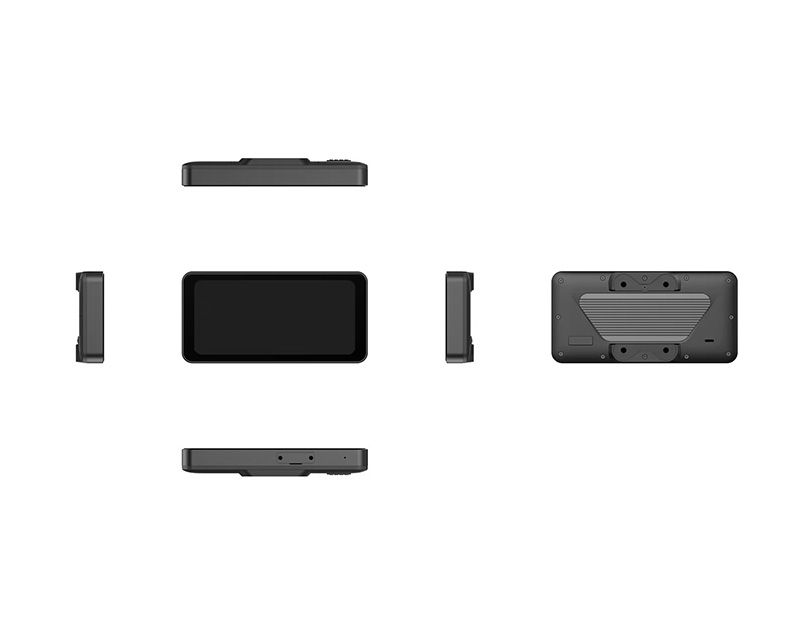

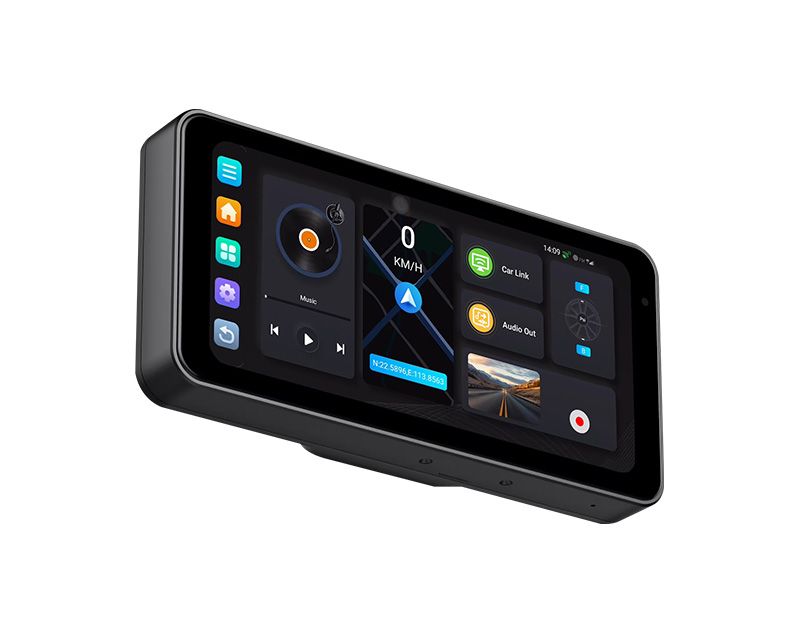

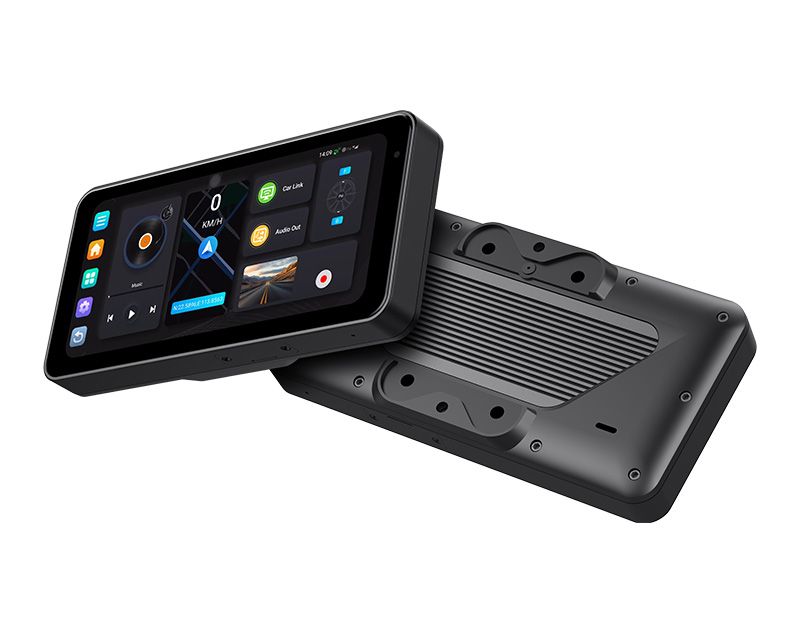

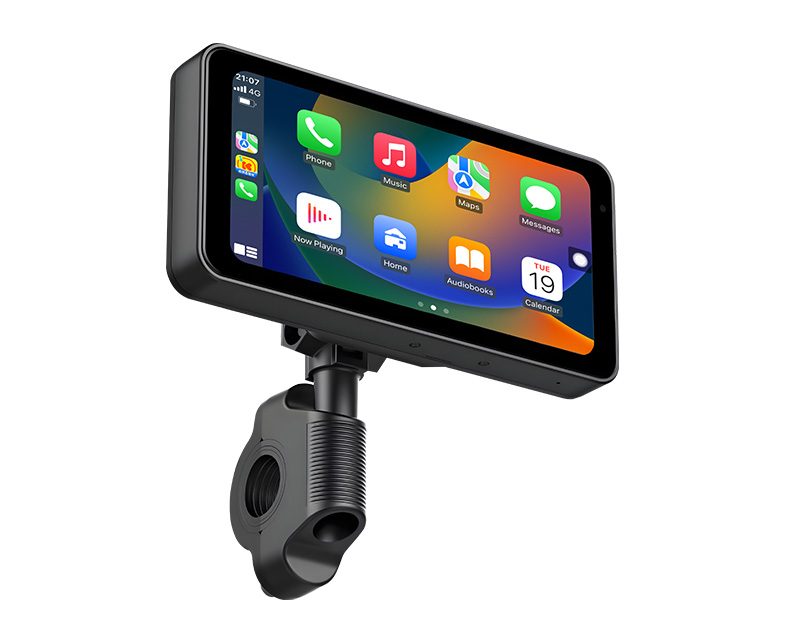

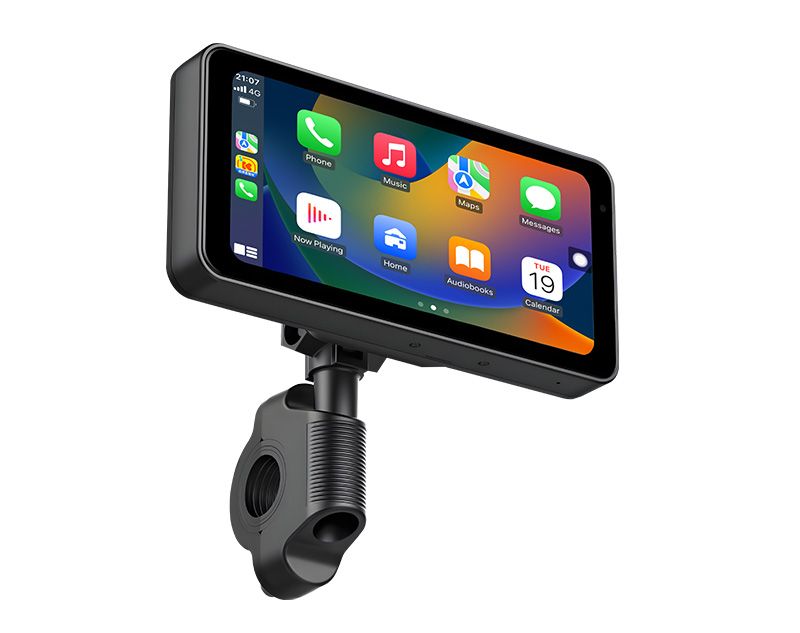

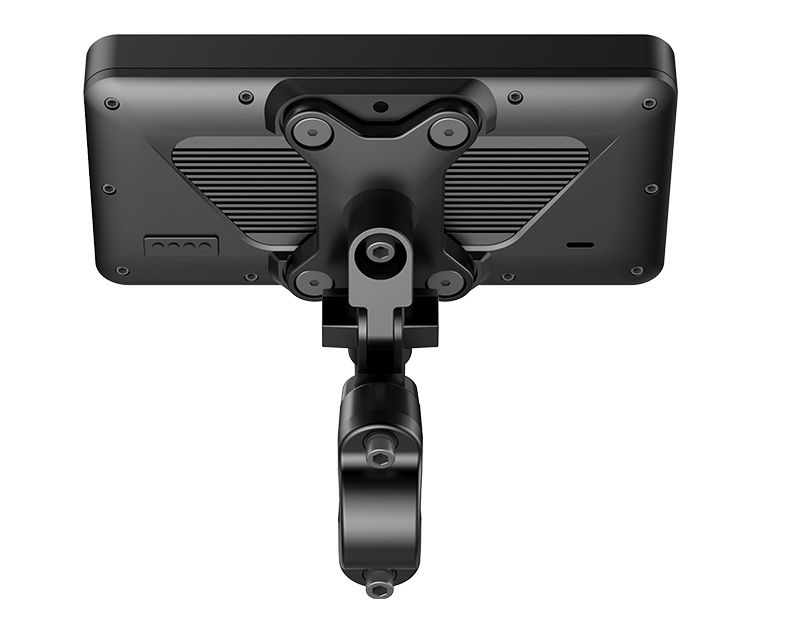

PRODUCT PHOTOS
SPECIFICATION
| 623S Specifications | ||
| General | ||
| Processor: | UIS7861, OCTA CORE, 2*A75 1.6GHz+6*A55 1.6GHz， OS: Android 12 | |
| SDRAM: | 4G+64GB | |
| WIFI: | 2.4G+5G | |
| Display type: | Capacitive touch | |
| Display size&resolution: | 6.25" 720*1560 IPS | |
| Battery： | Cell battery | |
| Cameras&Audio | ||
| Camera Lens: | Resolution/FPS | Front 1080P/30FPS, Rear cam 1080P/30FPS |
| Aperture/construction: | front GC205+Rear AHD GC2053 | |
| Video encoding format: | TS | |
| Compression ratio: | H.264 | |
| Video recording: | cycle record 2Min/3Min/5Min | |
| Memory: | maximum 256GB | |
| Mic: | Buit-in, 1.8*4mm, 38dB+-2dB | |
| Power consumption: | ||
| Working voltage： | 5~30V | |
| Working current： | <2A | |
| Quiescent current： | <2MA | |
| Power supply: | Through hardwire kit harness, B+/ACC/GND (support battery voltage detection) | |
| Environment | ||
| Operating Temp： | （-20℃-60℃） | |
| Storage Temp： | （-30℃-70℃） | |
| Housing waterproof Rating: | IP67 | |
| Mechanical; | ||
| Product dimensions: | 166*82*37mm | |
| Product weigiht: | 344g | |
| Install method: | Mount kit | |

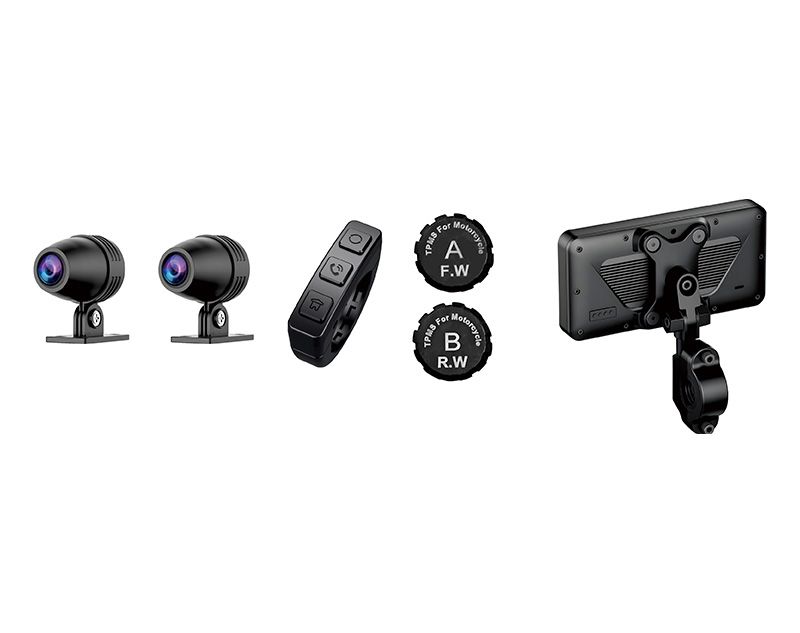

In The Box

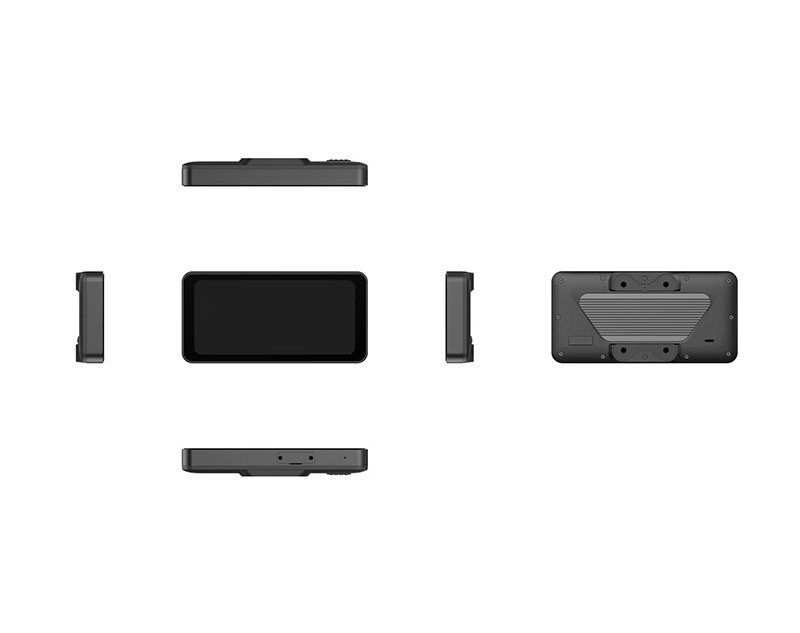

Main device

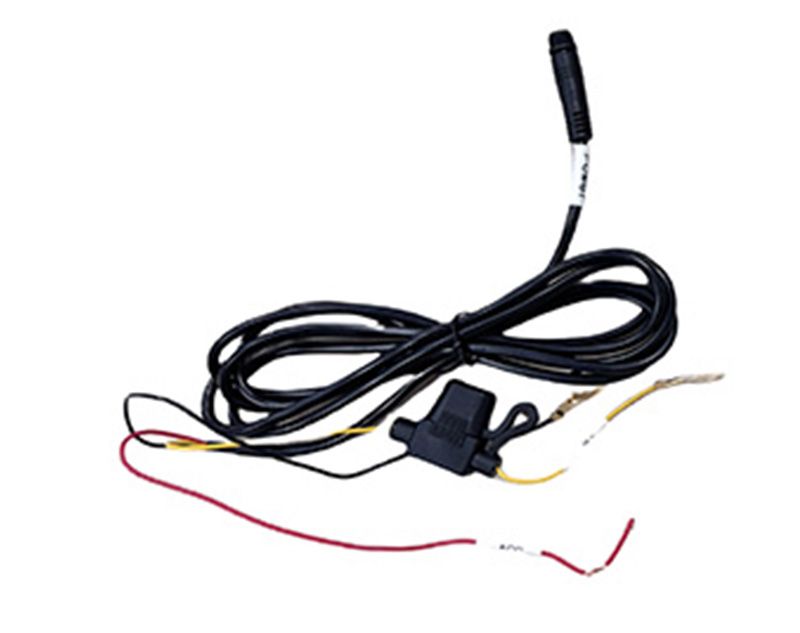

The power cord

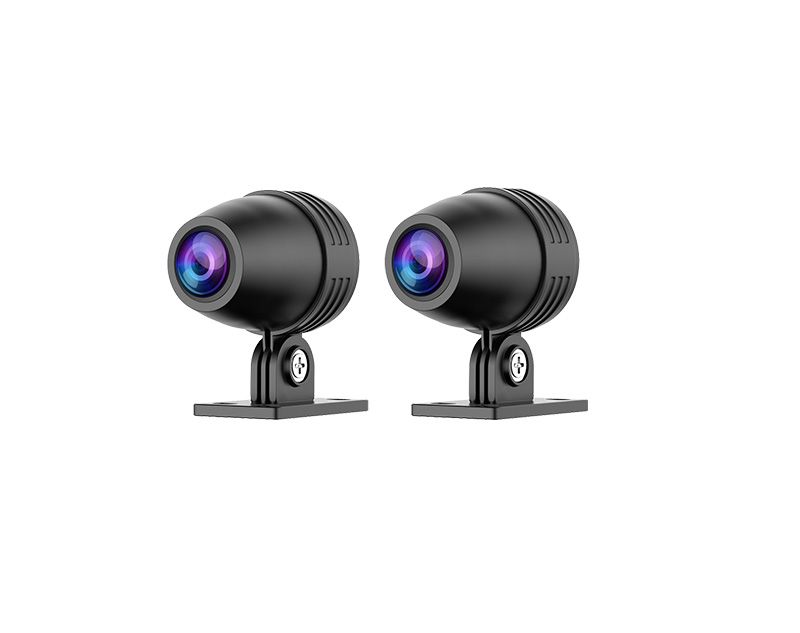

Camera*2

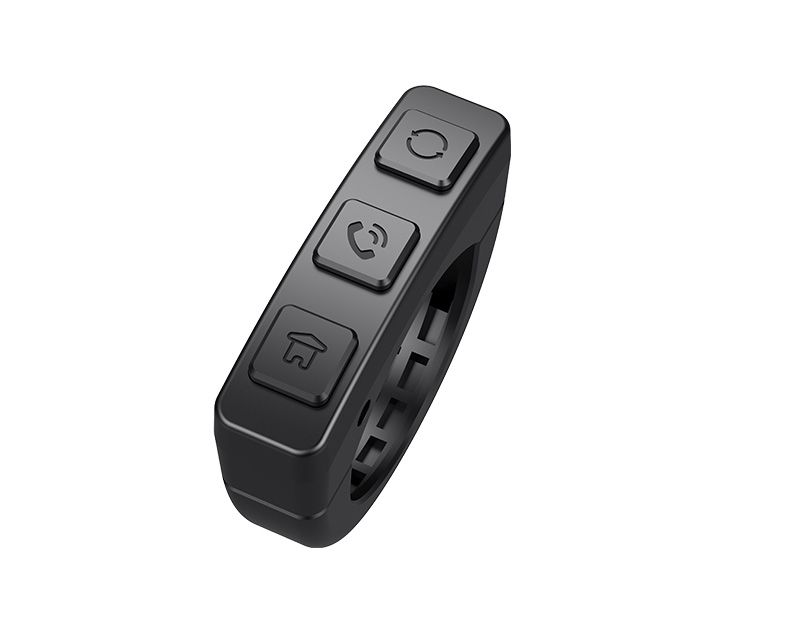

Wired Remote Control

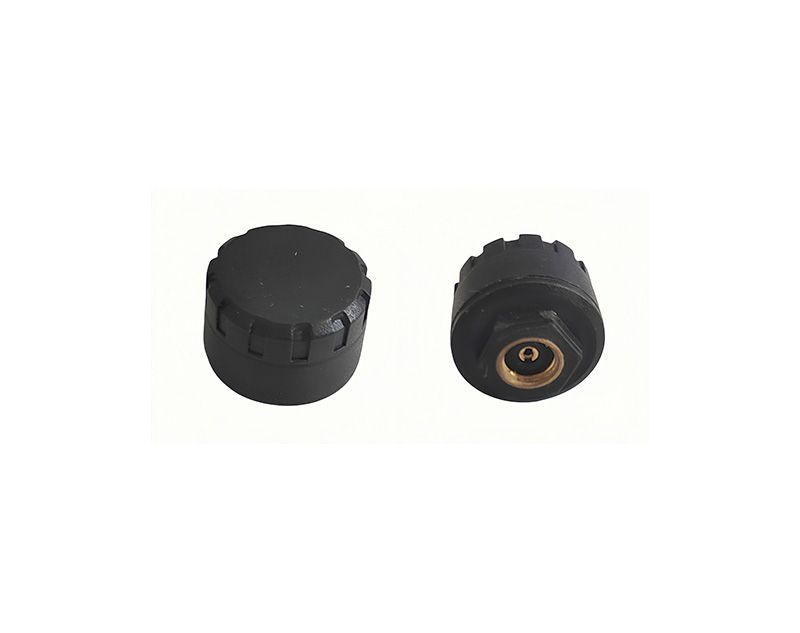

TPMS (Optional)
Mount

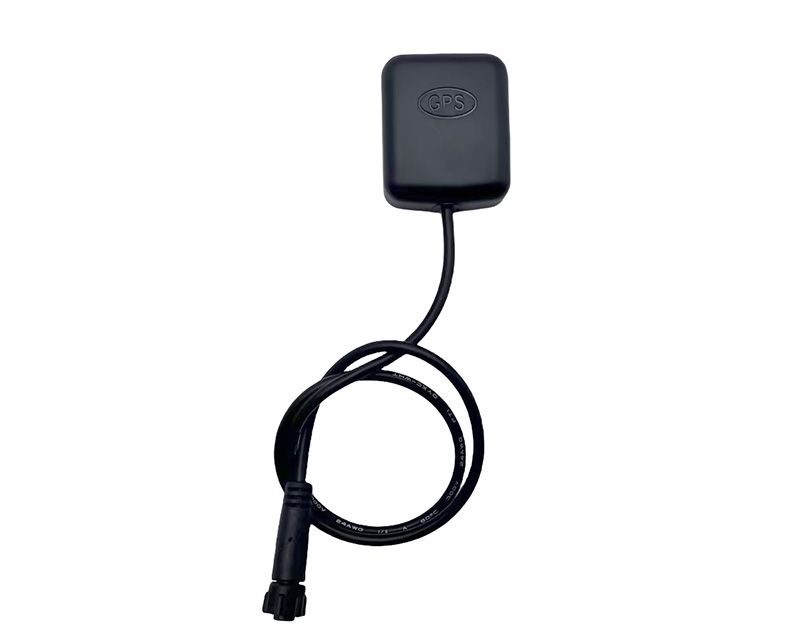

GPS
User manual
Accessories
