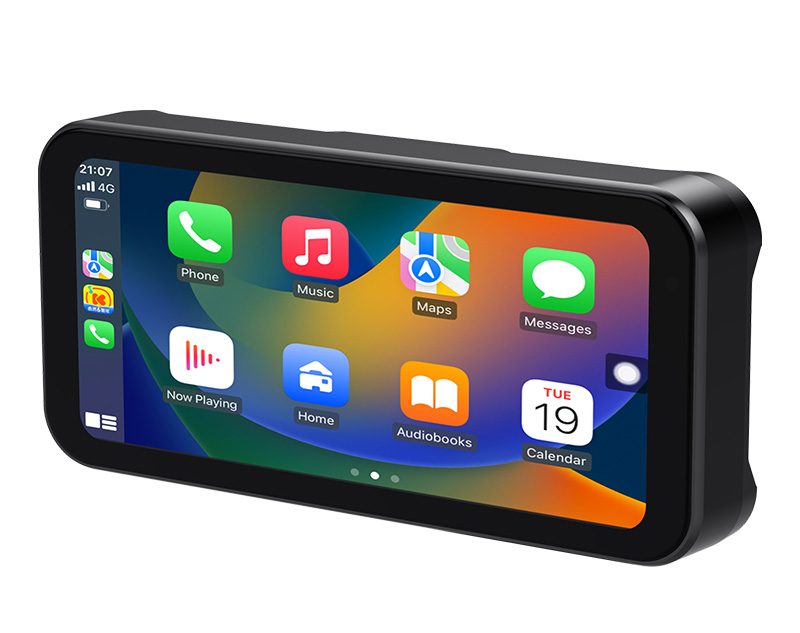

Motorcycle Monitor 622

Motorcycle Carplay supports Wireless CarPlay and Android Auto

Display size

6.25'

This motorcycle carplay supports both Apple and Android, features dual 1080P cameras, boasts P67 waterproof & anti-theft protection, and includes tire pressure monitoring for enhanced safety. Experience the ultimate in motorcycle infotainment and safety technology with our innovative CarPlay system.

USP

01

Supporting CarPlay and Android Auto, providing universal compatibility with your smartphone
02

Motorcycle DVR with Dual 1080P Cameras.Capture crystal-clear footage with front and rear view cameras for complete coverage. Automatic light-sensing chip adjusts screen brightness for optimal visibility in any lighting condition.
03

IP67 Waterproof & Anti-theft.IP67 waterproof, can withstand various weather conditions. Equipped with special anti-theft screws and nuts.
04

Universal Compatibility,Easy Installation. motorcycle camera carplay kit bracket kits and tools for easy mounting.

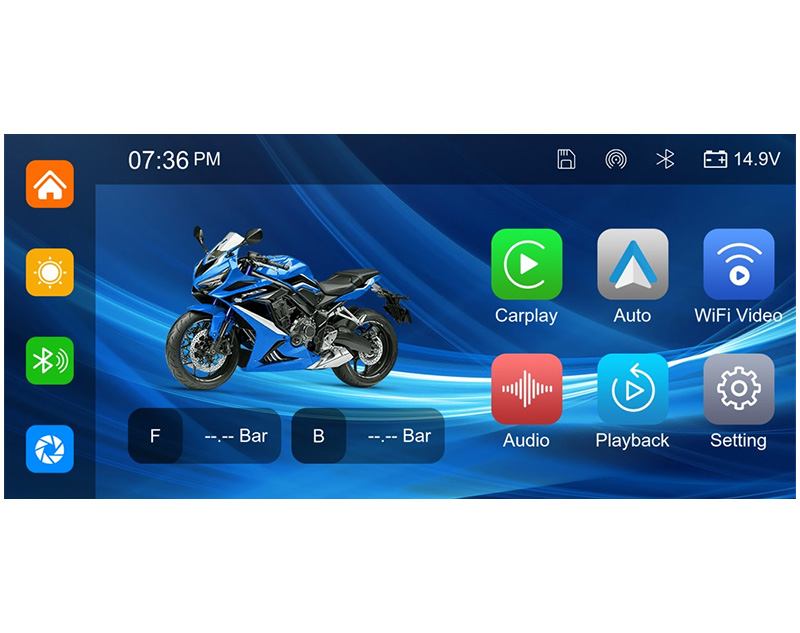

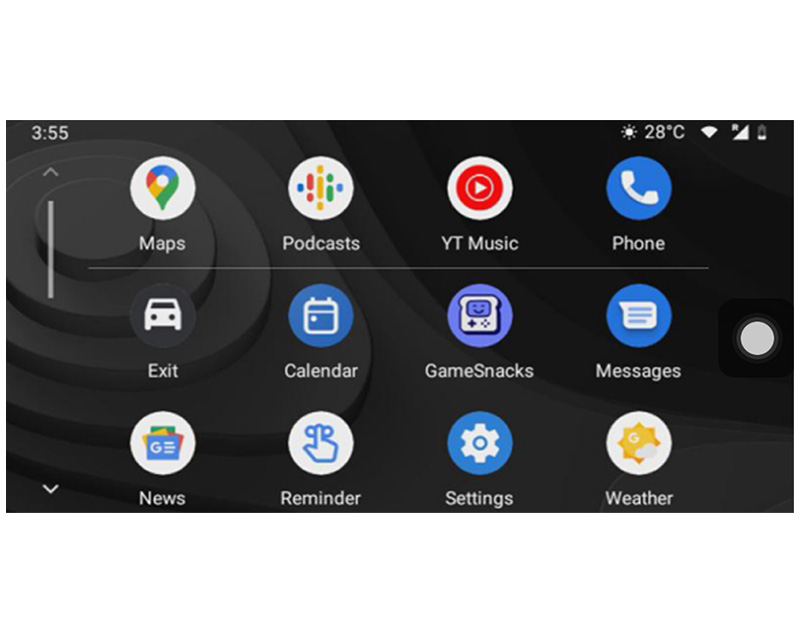

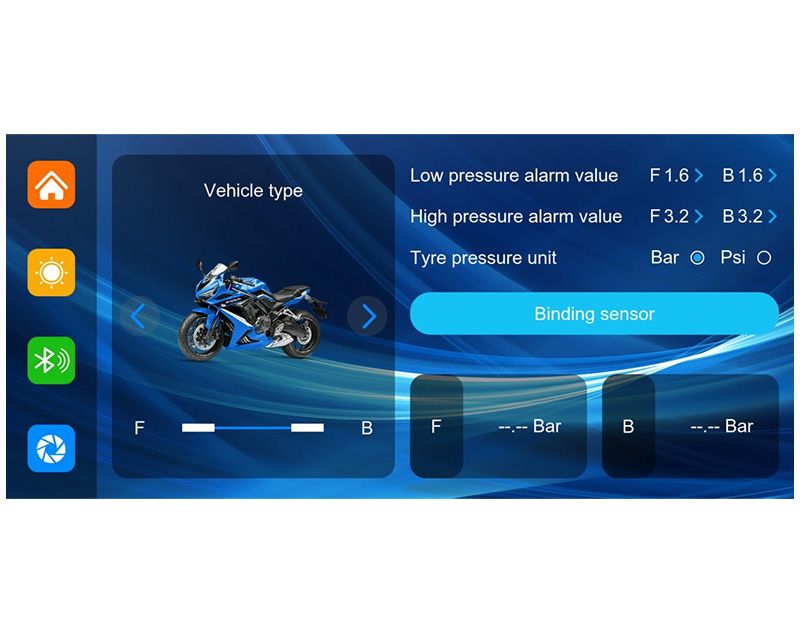

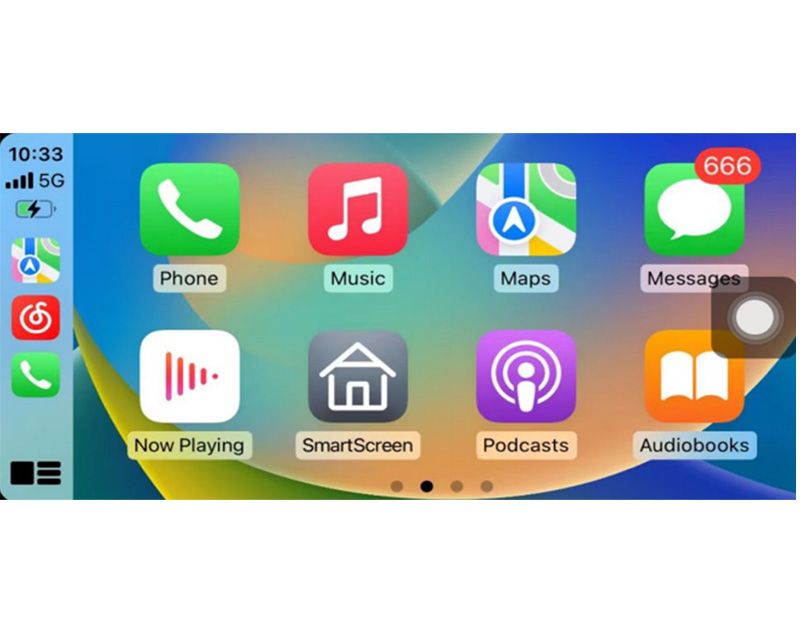

622 UI

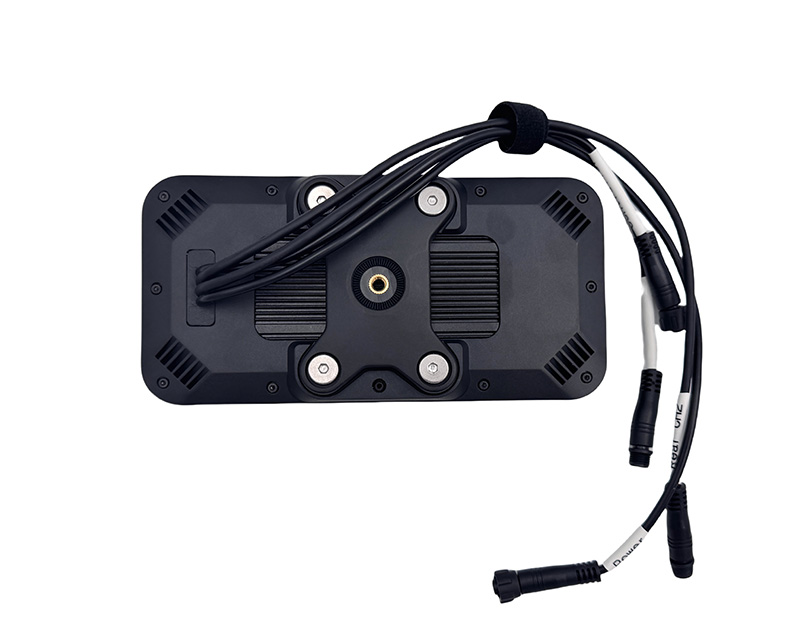

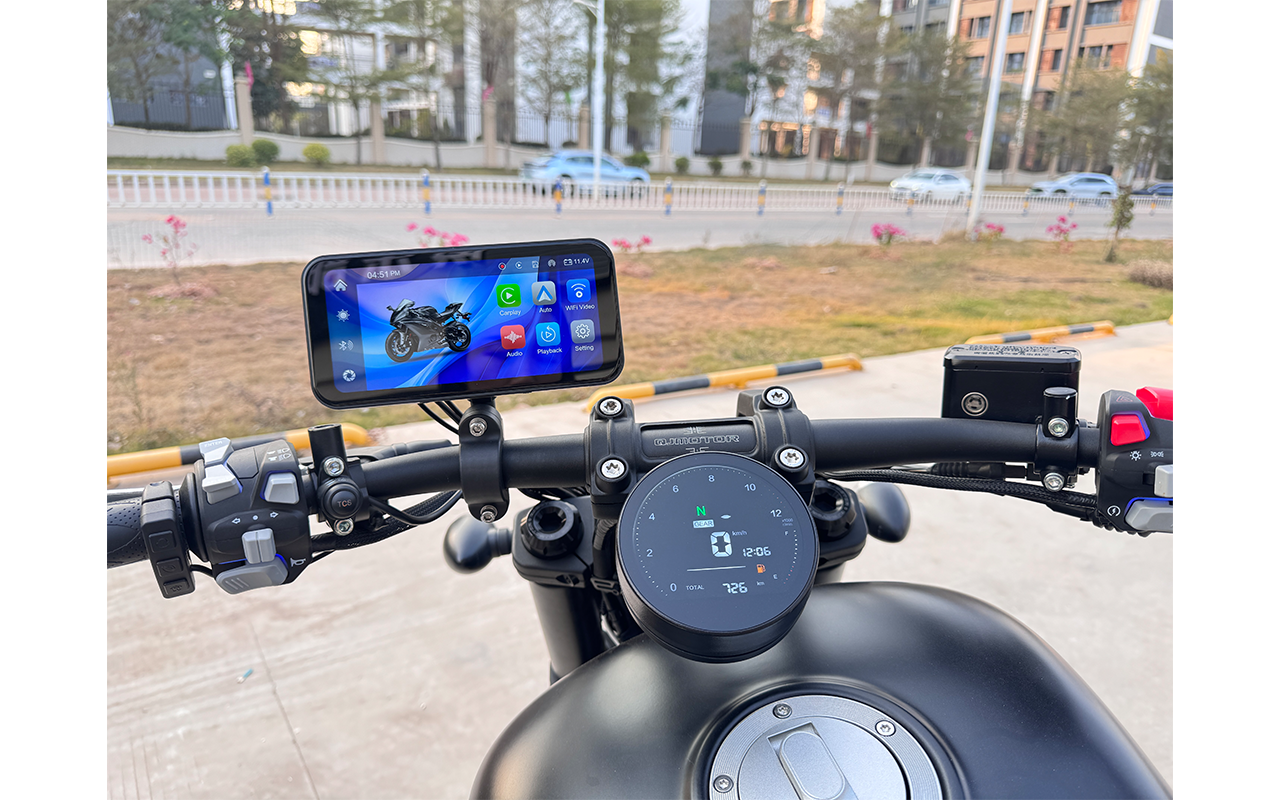

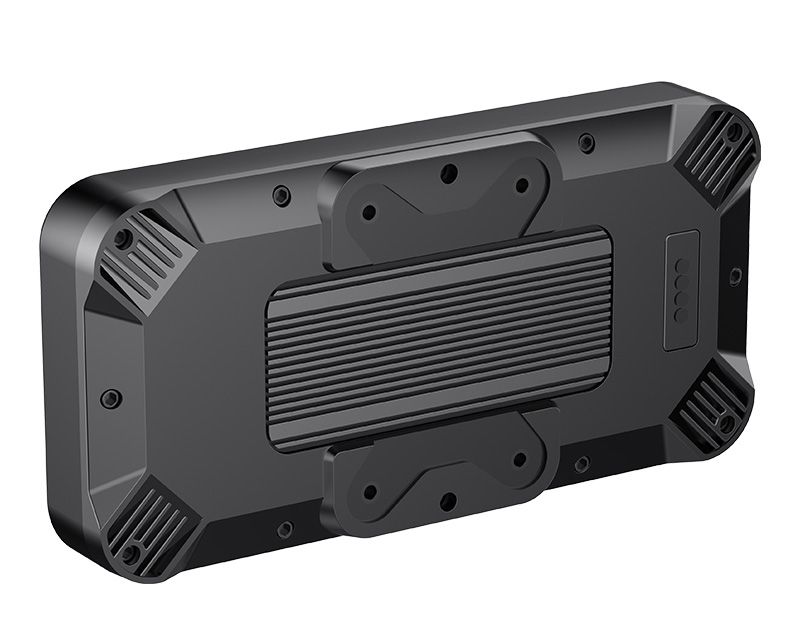

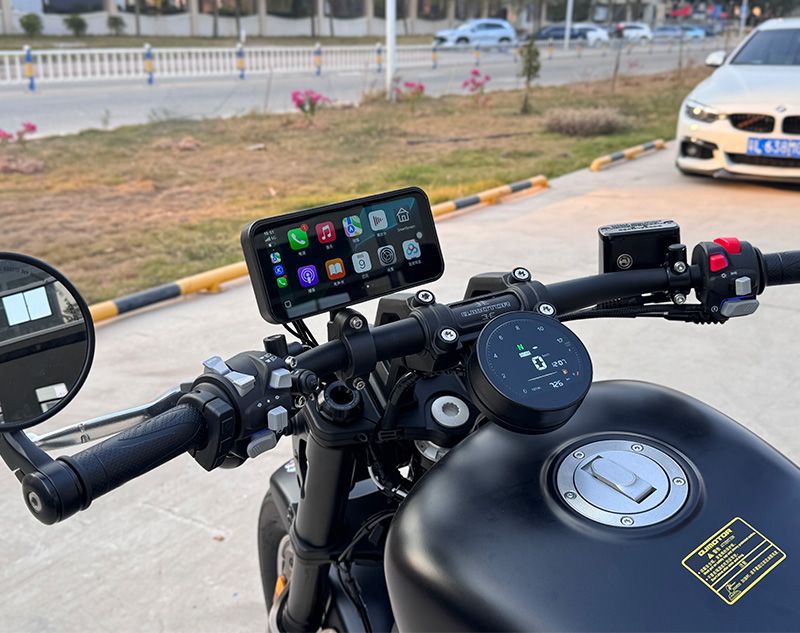

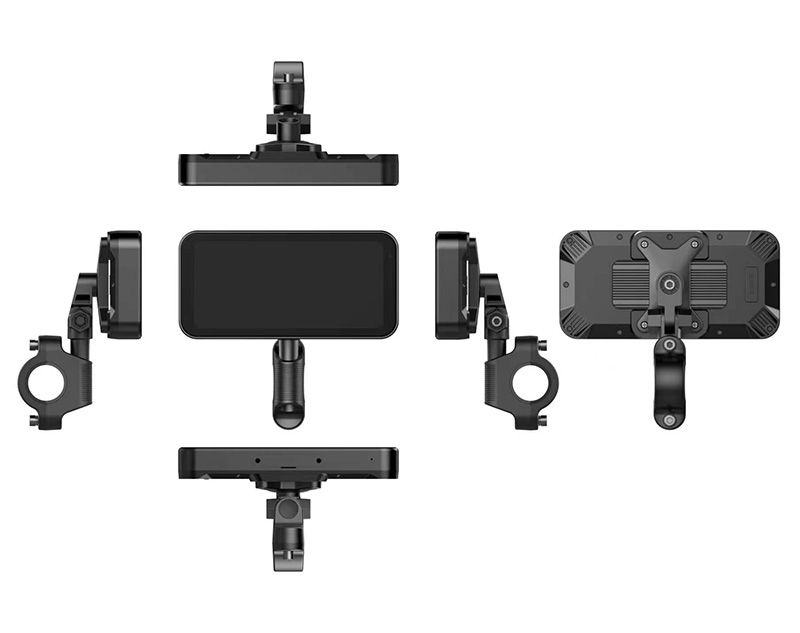

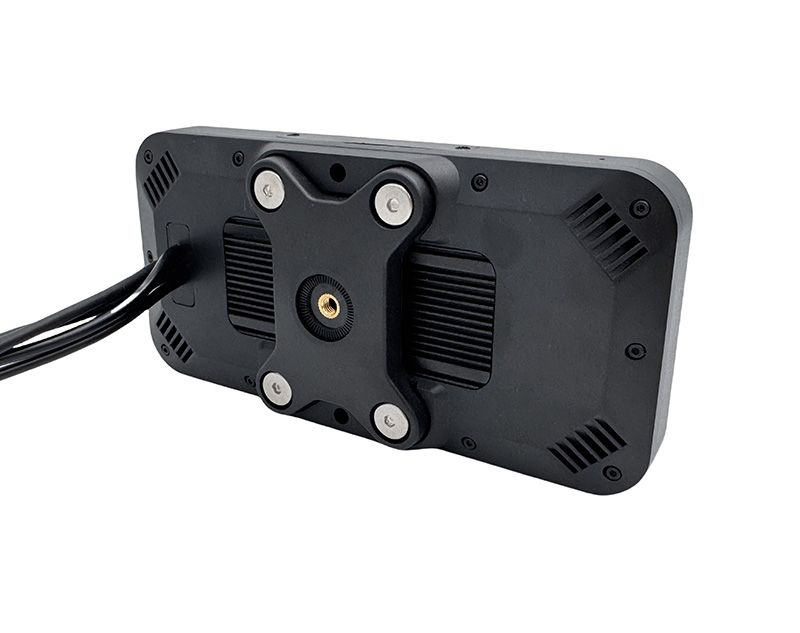

PRODUCT PHOTOS

SPECIFICATION

622 Specifications
General
Processor:		Allwinner V536 1.2G
SDRAM:		256MB
WIFI:		2.4G+5G
Display type:		Capacitive touch
Display size&resolution:		6.25" 720*1560 IPS
Battery：		Cell battery
Cameras&Audio
Camera Lens:	Resolution/FPS	Front 1080P/30FPS, Rear cam 1080P/30FPS
	Aperture/construction:	front GC205+Rear AHD GC2053
Video encoding format:		TS
Compression ratio:		H.264
Video recording:		cycle record 2Min/3Min/5Min
Memory:		maximum 256GB
Mic:		Buit-in, 1.8*4mm, 38dB+-2dB
Power consumption:
Working voltage：		5~30V
Working current：		<2A
Quiescent current：		<2MA
Power supply:		Through hardwire kit harness, B+/ACC/GND (support battery voltage detection)
Environment
Operating Temp：		（-20℃-60℃）
Storage Temp：		（-30℃-70℃）
Housing waterproof Rating:		IP67
Mechanical;
Product dimensions:		1668237mm
Product weigiht:		344g
Install method:		Mount kit

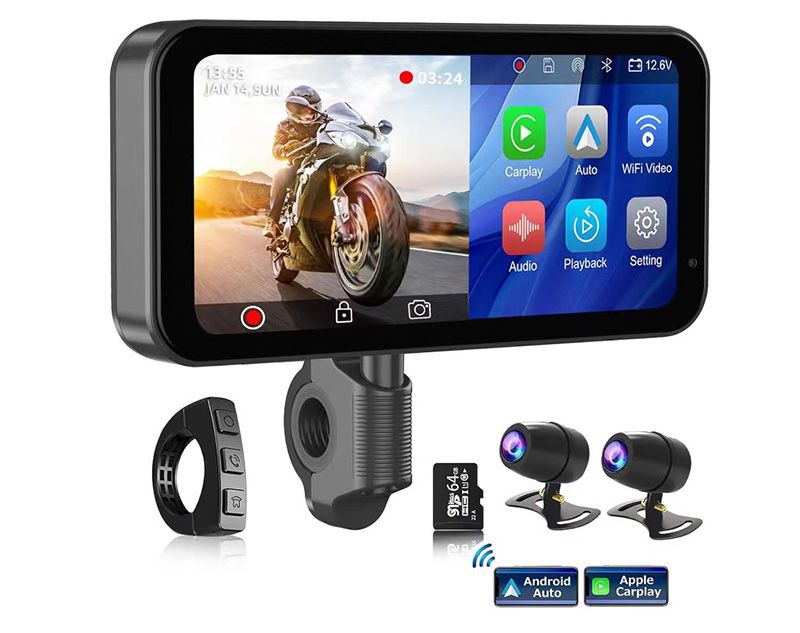

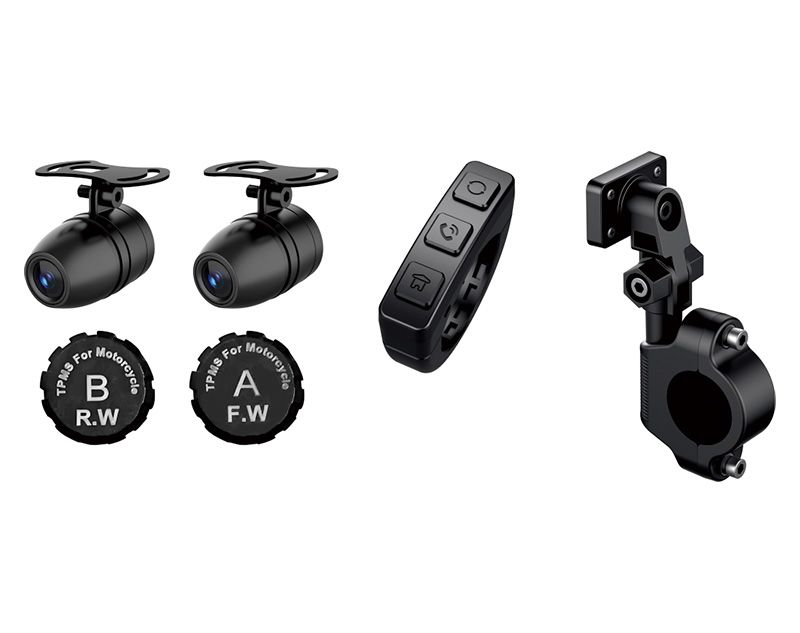

In The Box

Main device

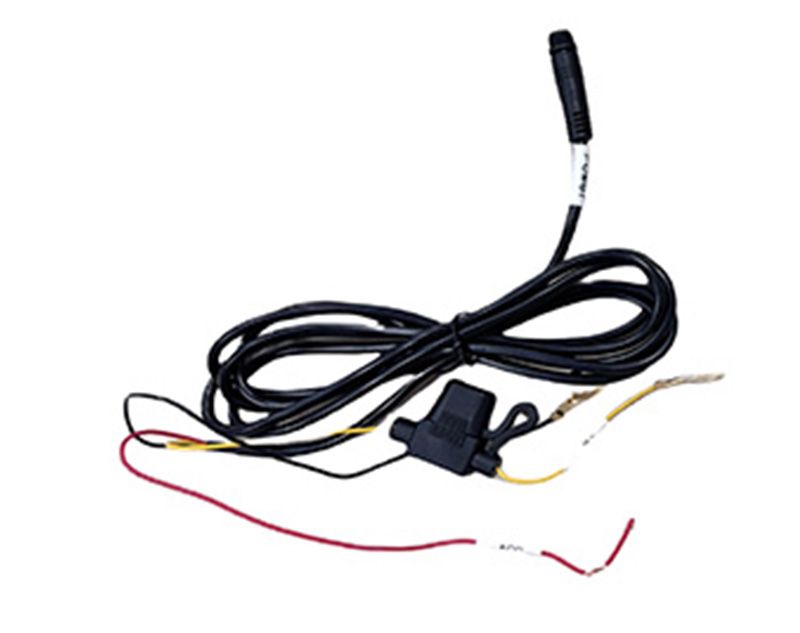

The power cord

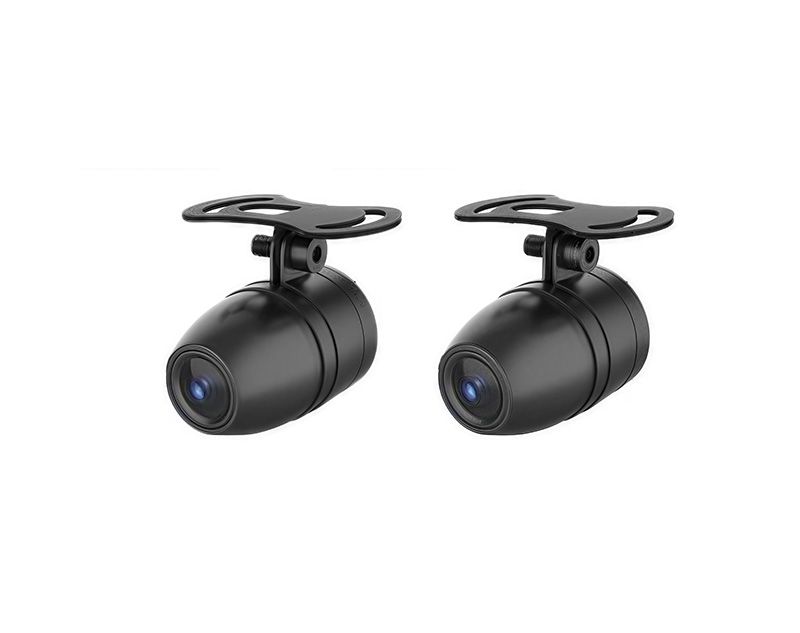

Camera*2

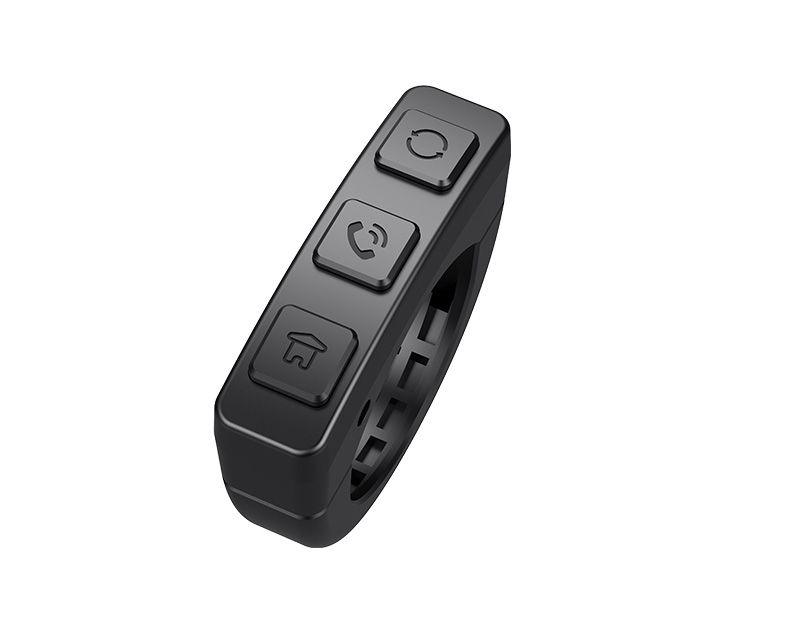

Wired Remote Control

TPMS (Optional)

Mount

User manual

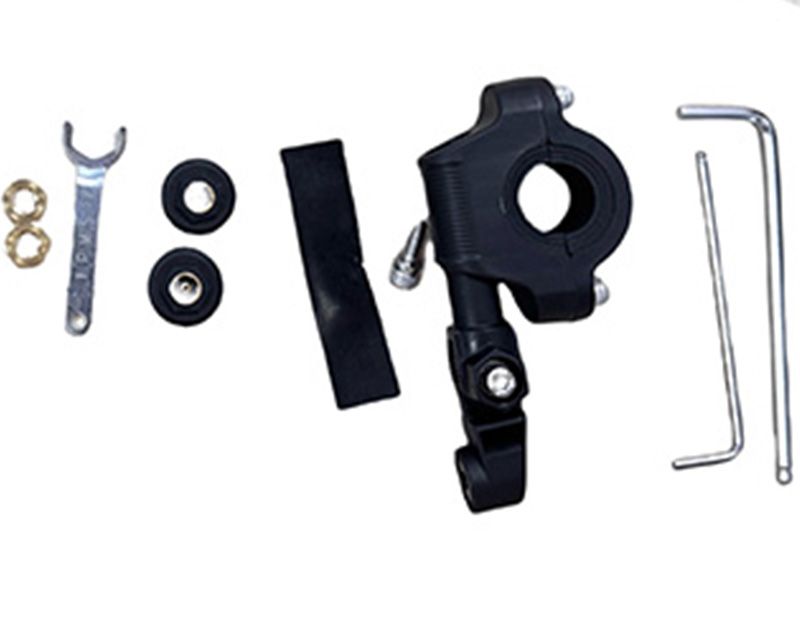

Accessories
