Connected Monitor System 810A

Wireless CarPlay and Android Auto

Display size

8.1'

Built-in Dash Cam

Yes No

This universal product is designed for all vehicles, offering a seamless plug-and-play experience that quickly syncs with your phone. Featuring an 8.1-inch IPS high-definition display, it delivers a vibrant and crisp visual experience.

USP

01

Exclusive private mold and supporting CarPlay and Android Auto.
02

Switching to rear view image automatically while reversing, parking assistance line is adjustable.
03

Equipped with a 8.1-inch Large HD Display.
04

Featuring multiple installation options.

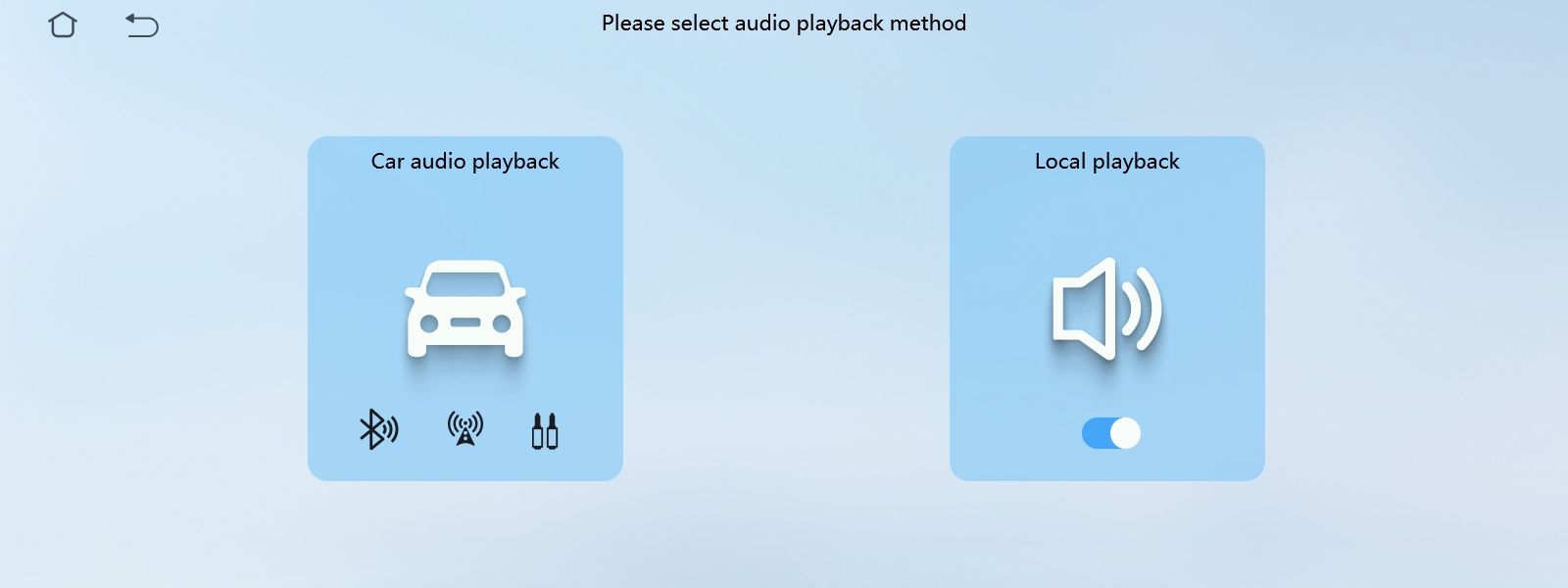

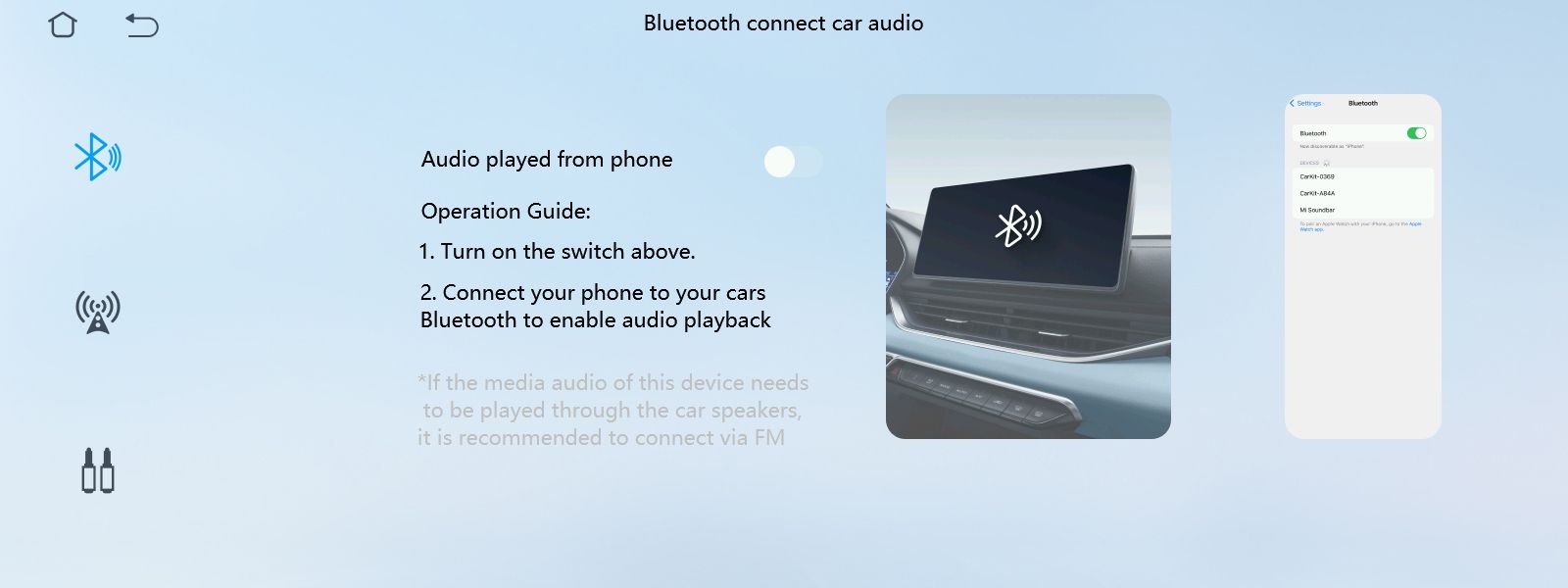

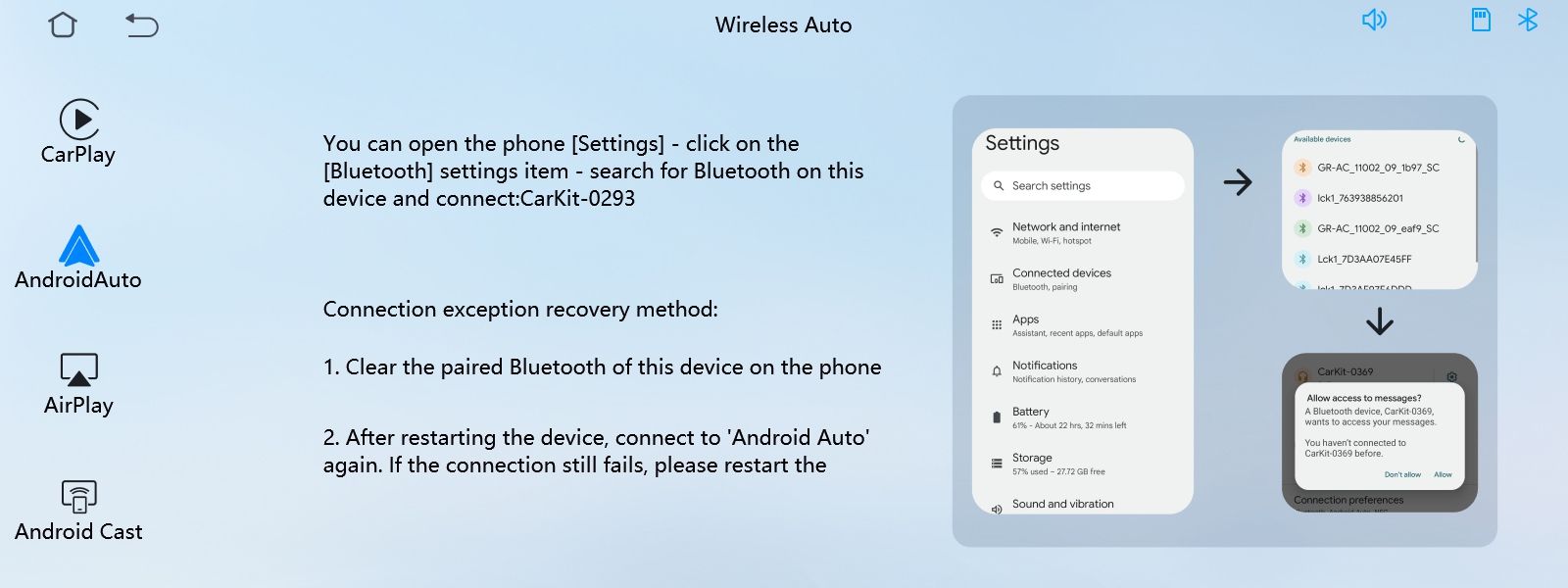

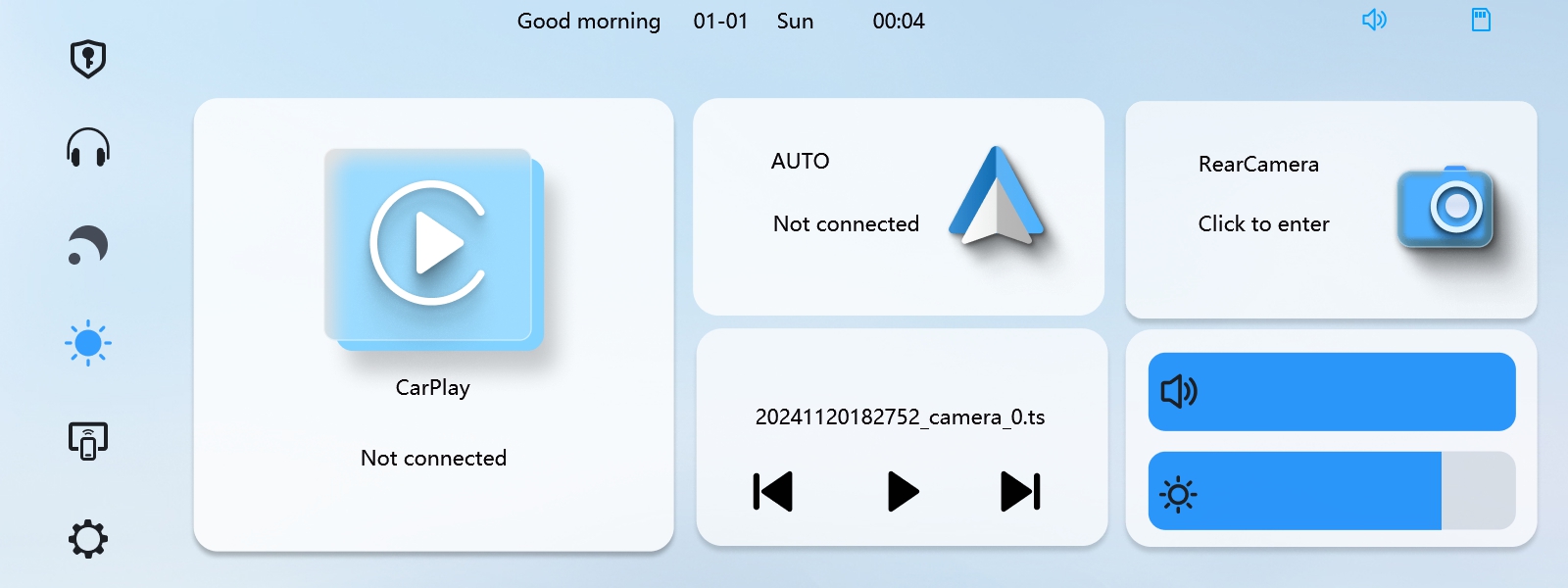

810A UI

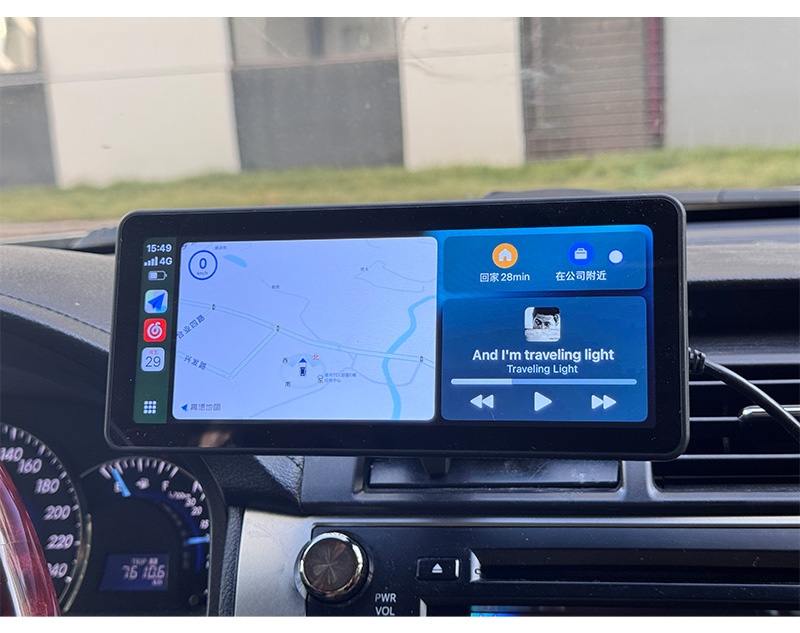

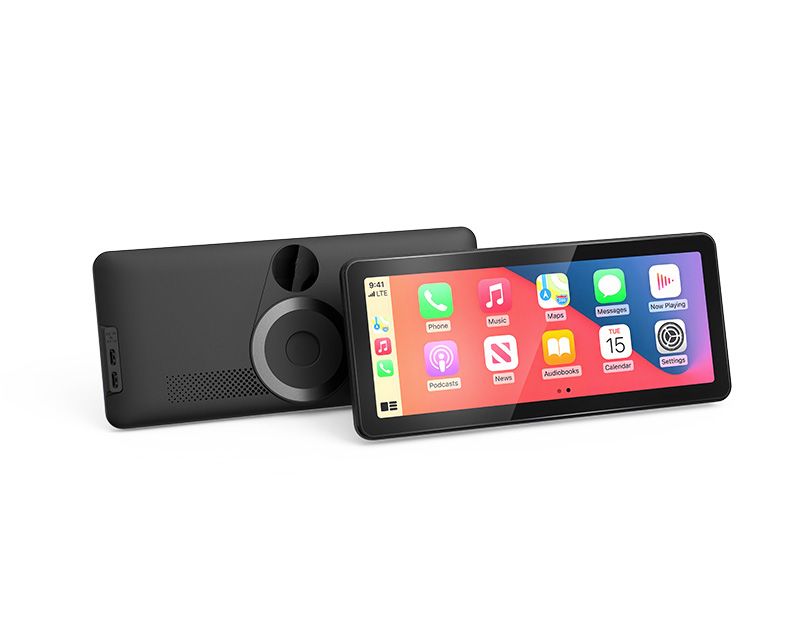

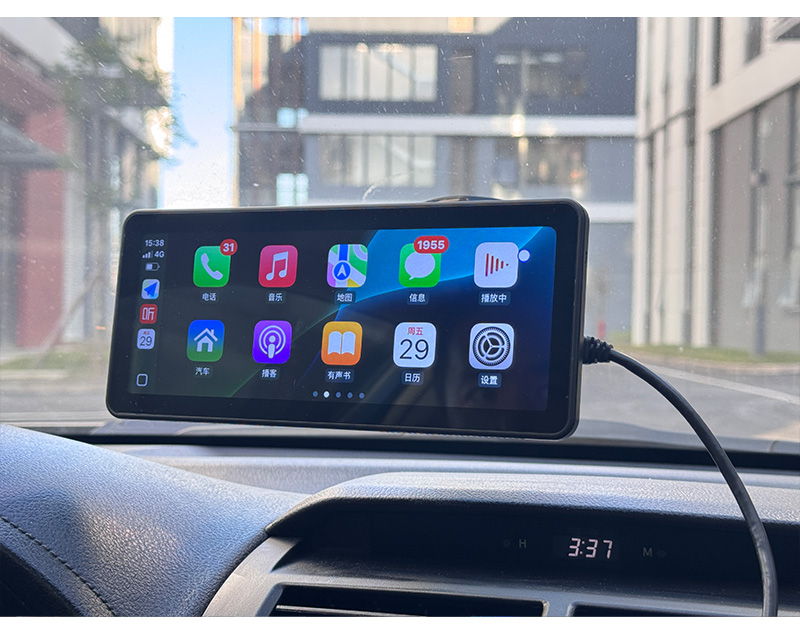

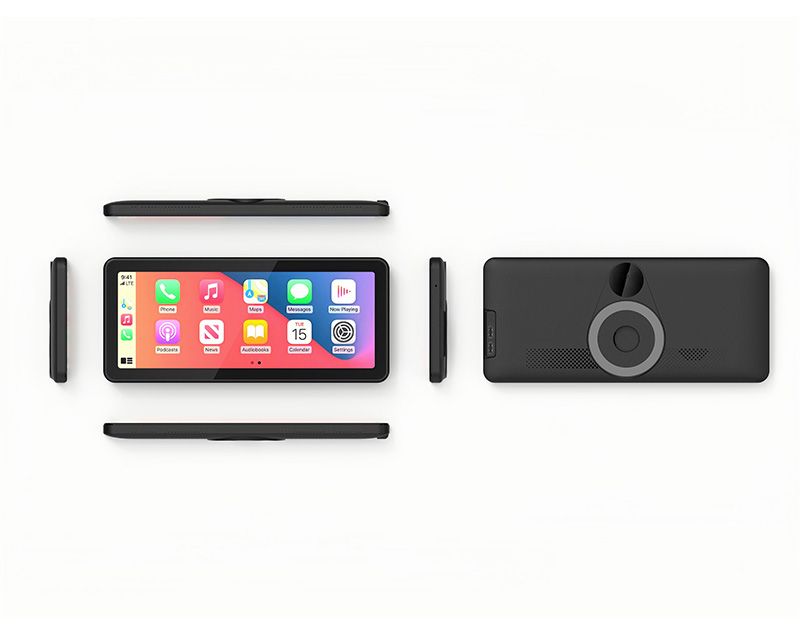

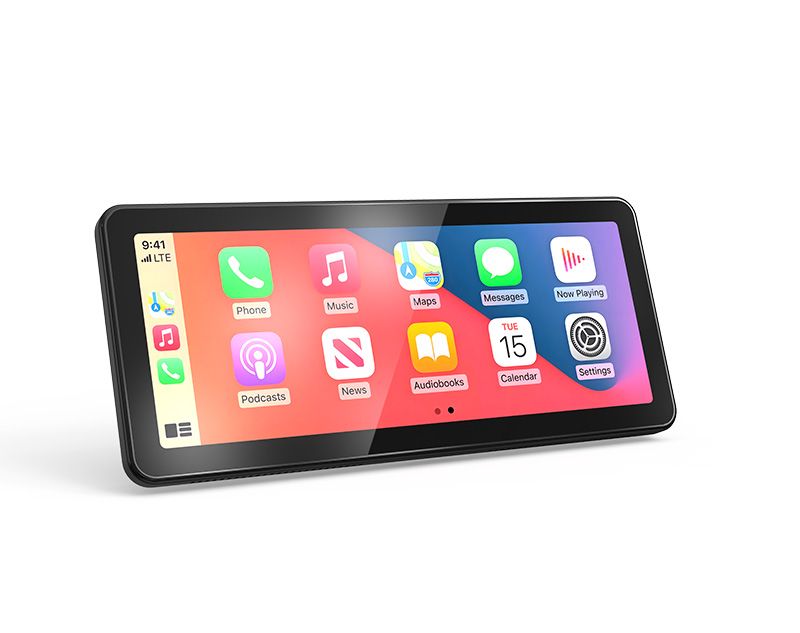

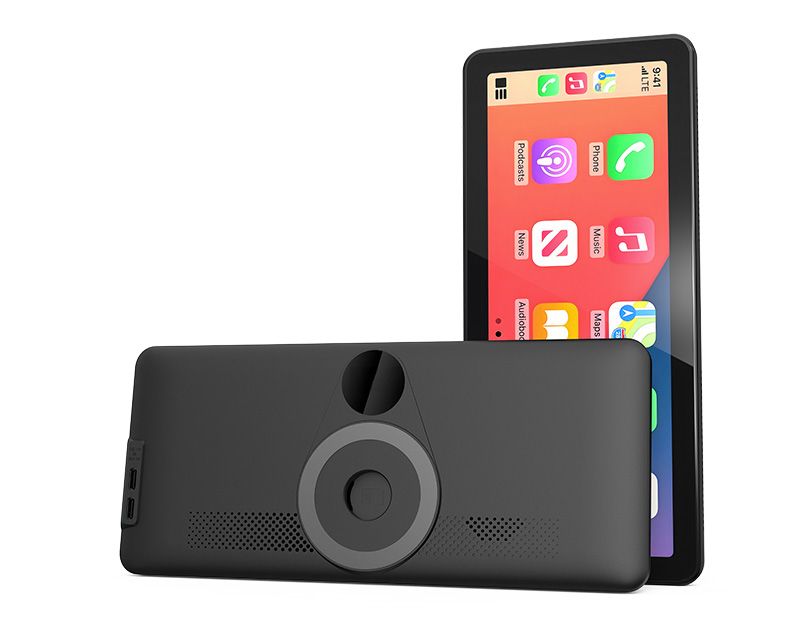

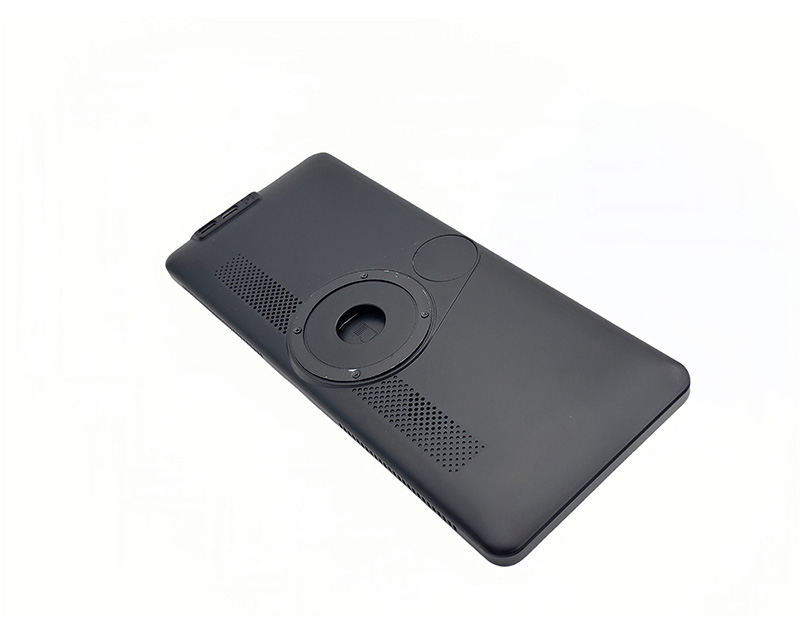

PRODUCT PHOTOS

SPECIFICATION

810A Specifications
General
Processor:		F133MX
FLASH：		16MB
DDR:		512MB
Display type:		Glass capacitive multi-touch IPS
Display size&resolution:		8.1inch, 1600*600
Display brightness:		495Nit
Battery：		NO
Camera Features
Front lens	Resolution/FPS	N/A
	Aperture/construction:	N/A
Rear lens	Resolution/FPS	AHD 1080p/25fps
	Aperture/construction:	F2.0/2G4P
	extention Cable length:	5.5M
	Other features:	Switch to rear view image automatically while reversing, parking assistance line is adjustable
Loop recording		N/A
Parking monitor:		N/A
Wireless connections&sensors
WiFi:		Support carplay or Android Auto
BT:		5.0
FM transmitter:		Yes
GPS:		No
G-sensor:		Yes
I/O Ports
Mic:		Yes-Electret MIC-1.5*4MM, -34DB
Speaker:		8ohm,2W
Voice command:		Via Siri/Google assistant
AUX socket		Yes, 3.5mm
Rear Camera connector:		Type C socket
Micro SD card slot:		Yes, up to 128GB
External GPS antenna socket		N/A
Power input：		Type C
Physical Buttons:		N/A
Advanced features
Light sensor		N/A
ADAS		N/A
Power consumption:
Working voltage：		DC5V
Working current：		<1A
Quiescent current：		<10MA
Power supply:		Car charger or hardwire kit(optional)
Software and update
OS:		RTOS
Firmware update:		Through Micro SD card, OTA will be available in future
Environment
Operating Temp：		（-10℃-70℃）
Storage Temp：		（-20℃-80℃）
Mechanical;
Product dimensions:		214mm*93mm
Product weigiht:		262g

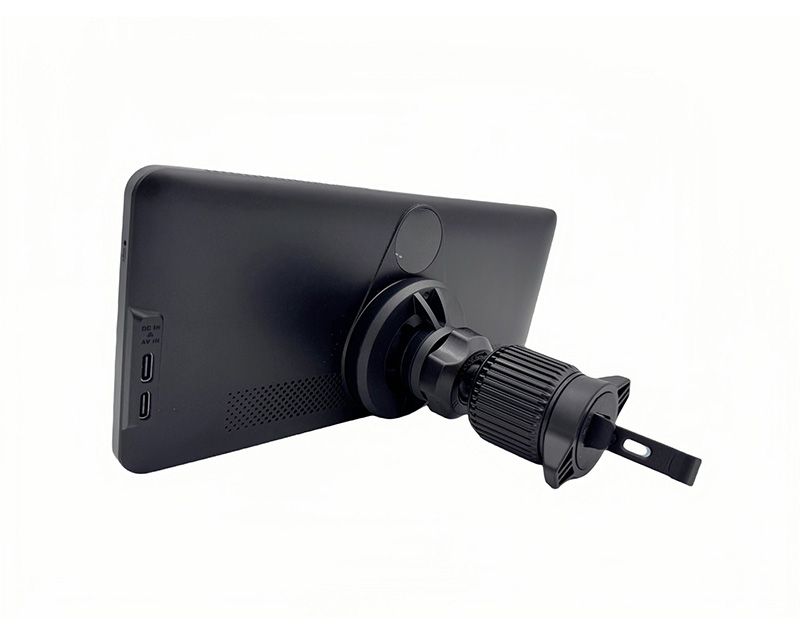

Install method:		Suction mount, dashboard mount, airvent mount

In The Box

Main device

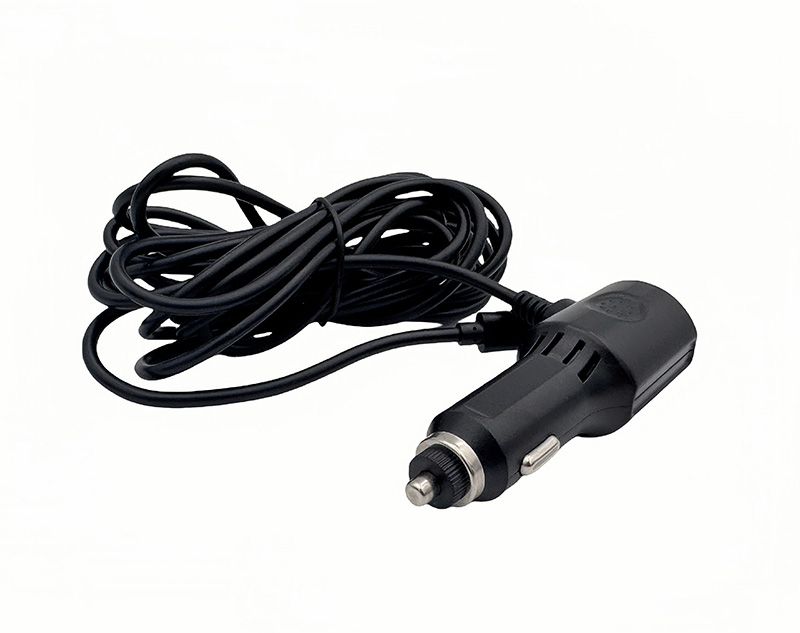

Car Charger

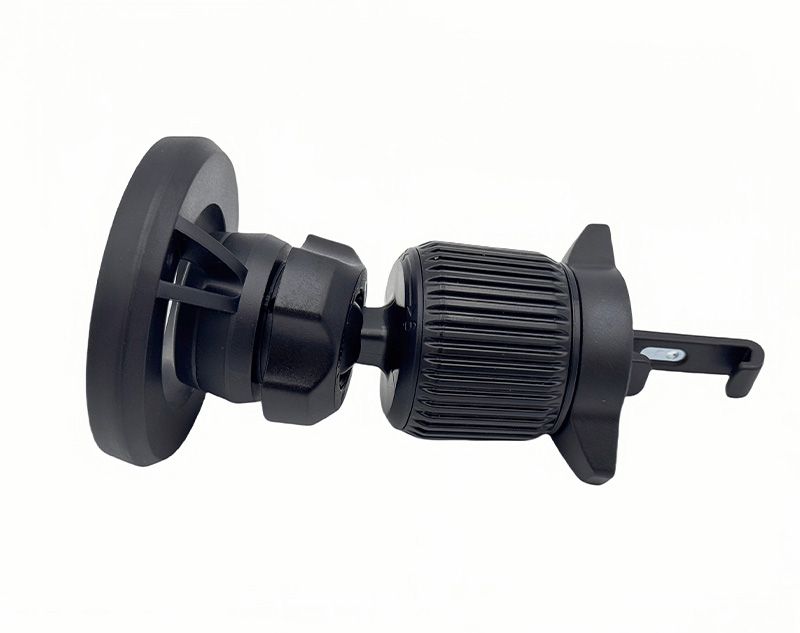

Vent Mount

User Manual
