Connected Monitor System 719

This product is compatible with all car models. Simply power it via the TYPE-C port using the car charger to upgrade your vehicle with wireless CarPlay. The device features a high-definition IPS screen, providing crystal-clear visuals for an immersive driving experience.

USP

01

Supporting CarPlay and Android Auto, providing universal compatibility with your smartphone
02

Offering seamless Bluetooth integration, allowing you to easily connect your devices without the hassle of cables, enhancing your driving experience
03

Providing an intuitive touch screen interface, navigate through apps and settings effortlessly.
04

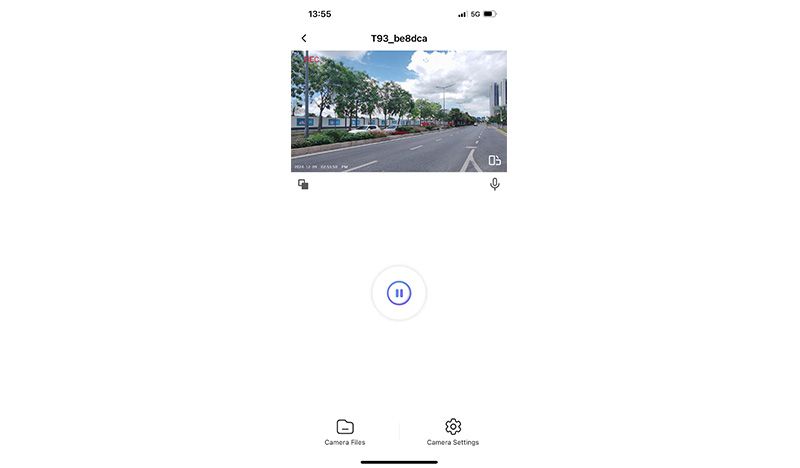

Equipping with a dual-channel dash camera, this wireless connected monitor enhances your vehicle's safety by providing clear, high-definition visuals of both front and rear views, helping to capture every moment on the road.
05

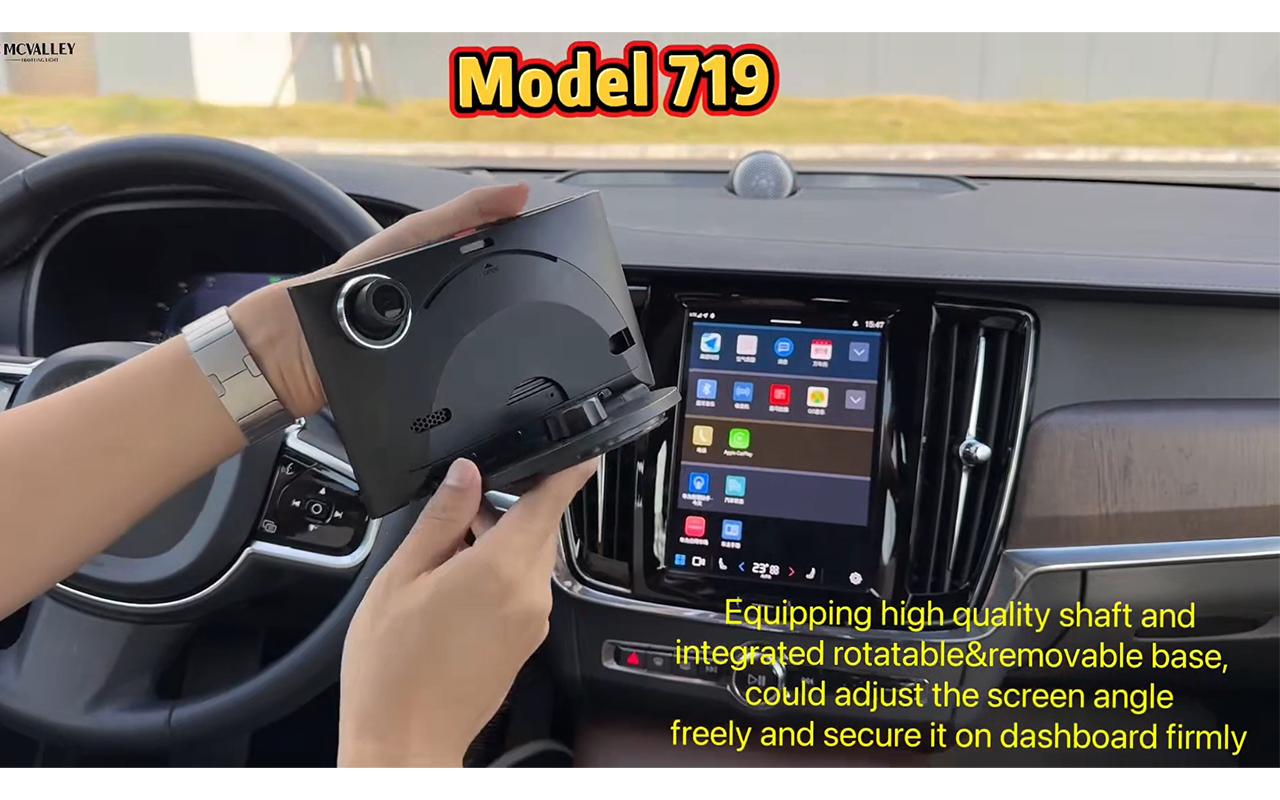

Equipping high quality shaft and integrated rotatable&removable base,so user could adjust the screen angle freely and secure it on dashboard firmly.

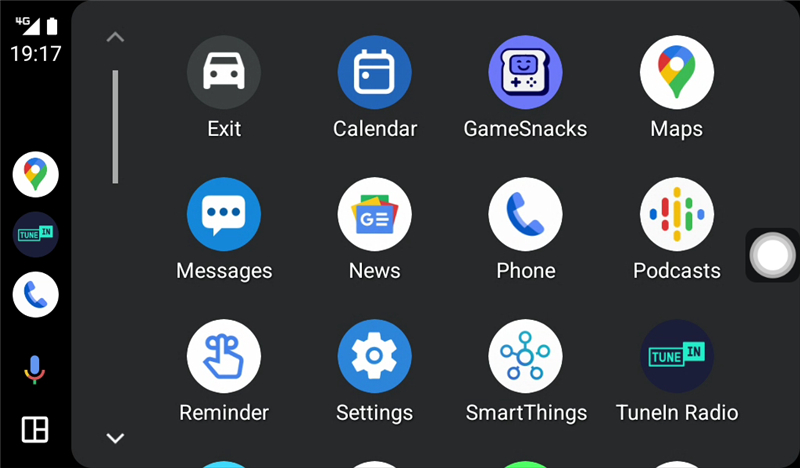

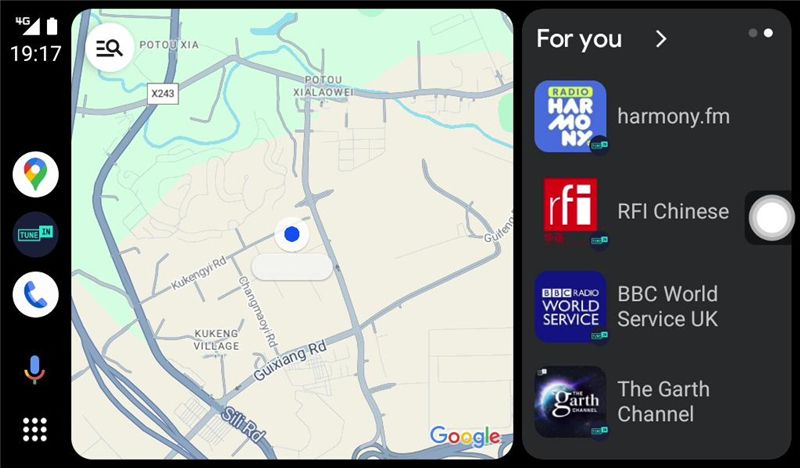

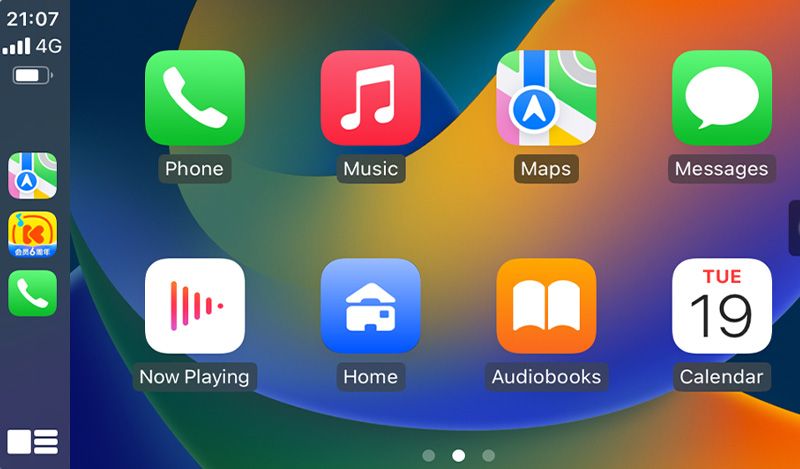

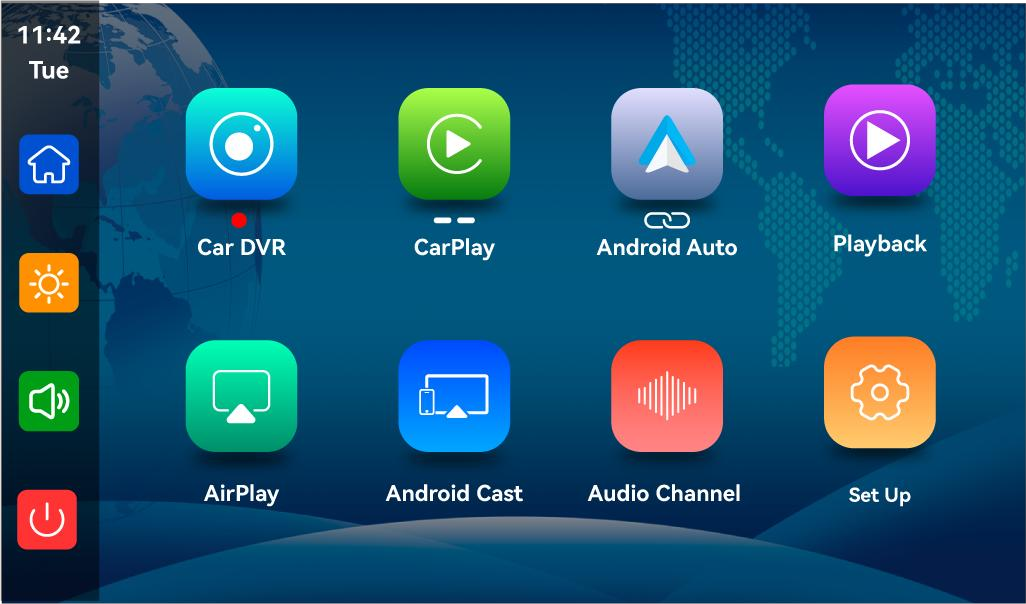

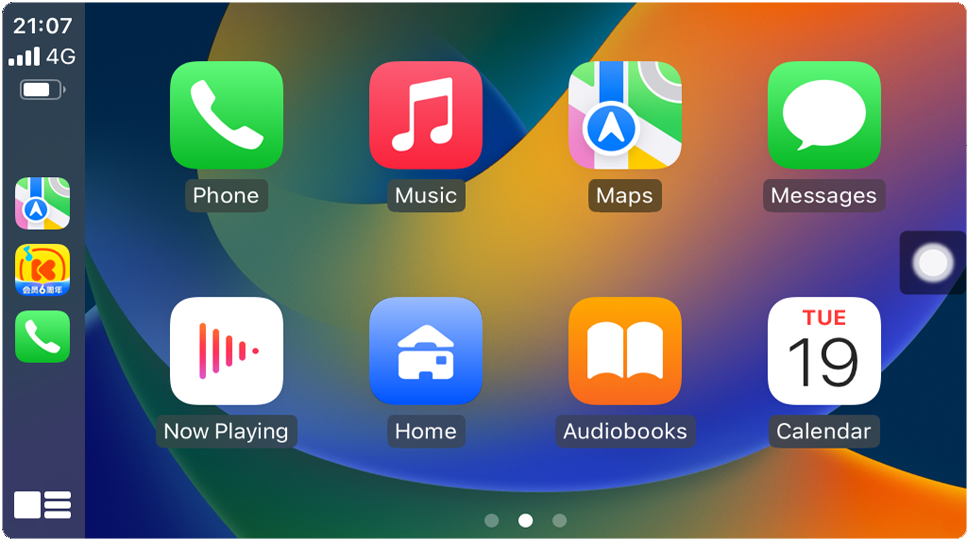

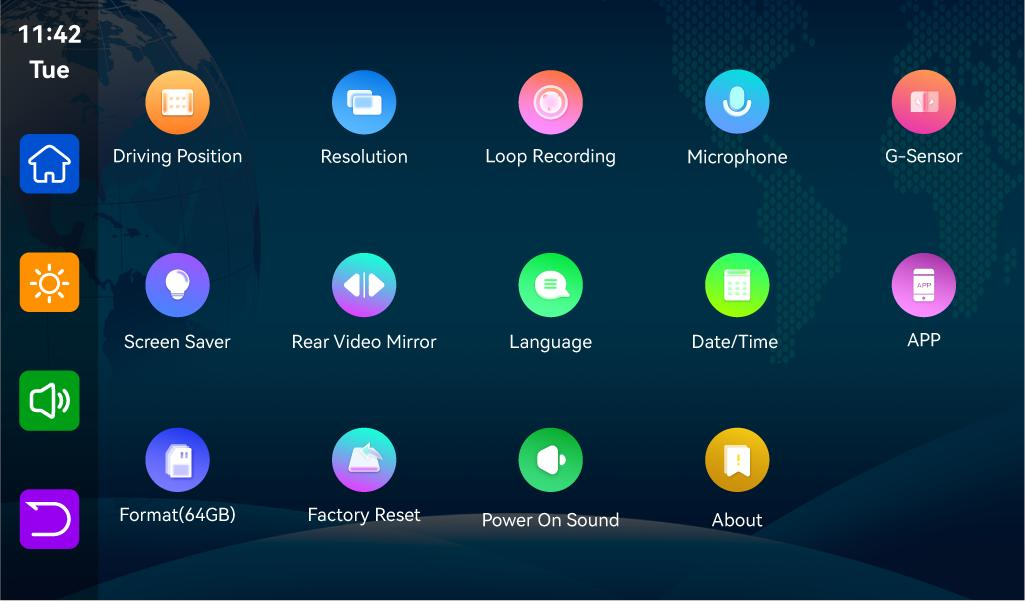

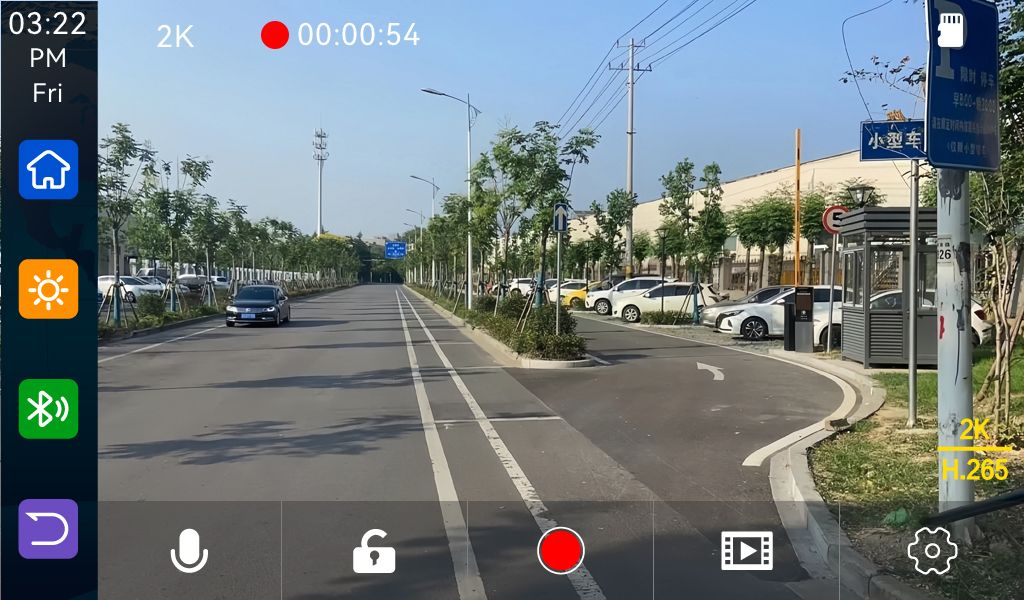

719 GUI

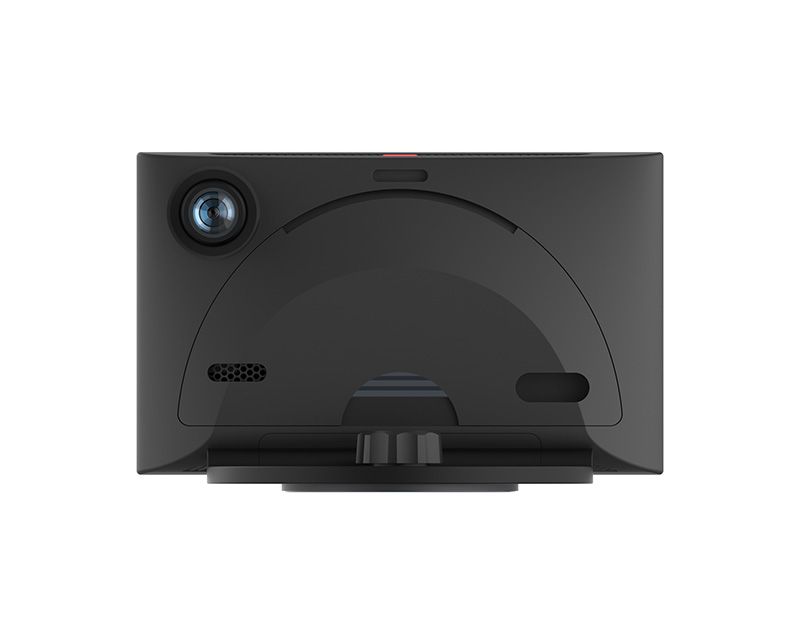

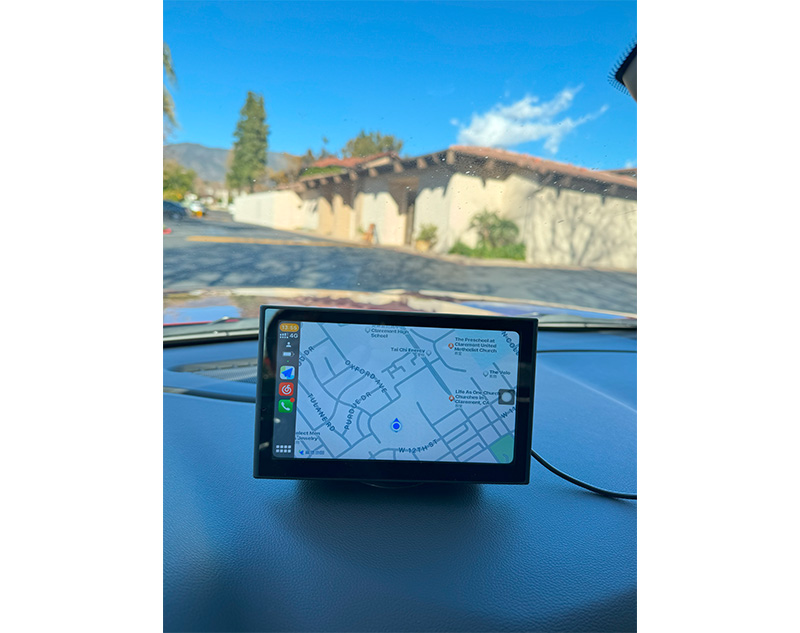

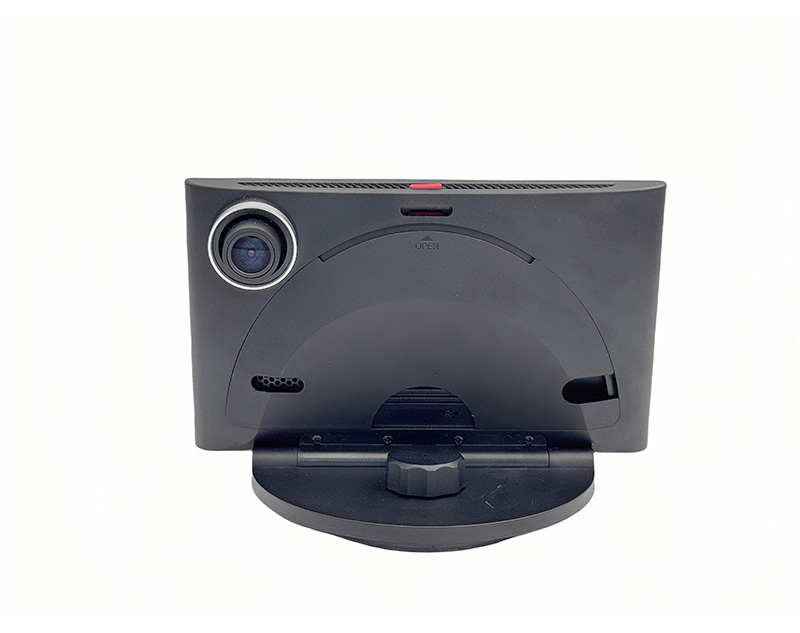

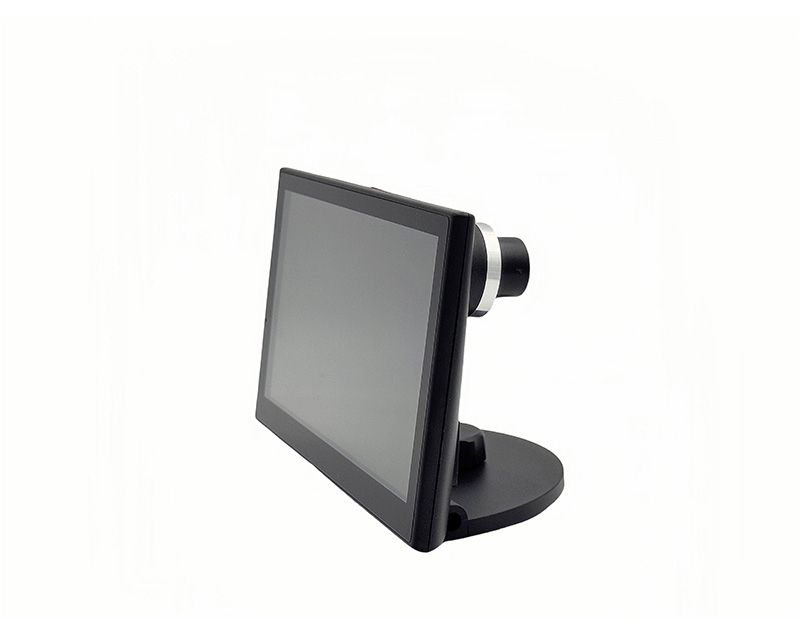

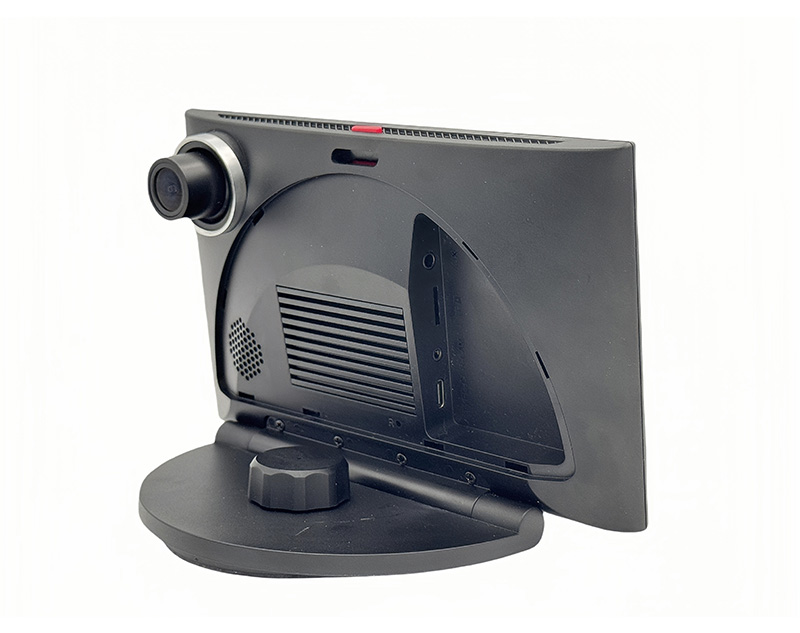

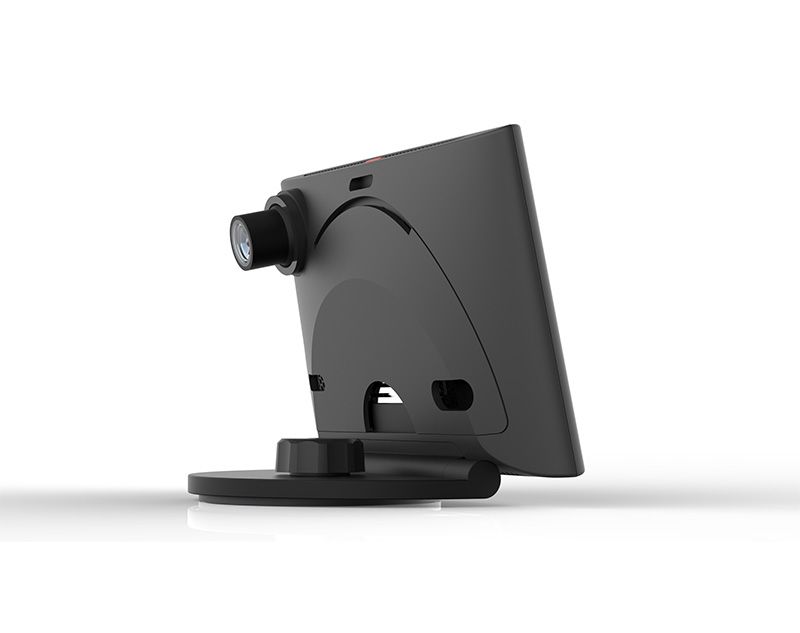

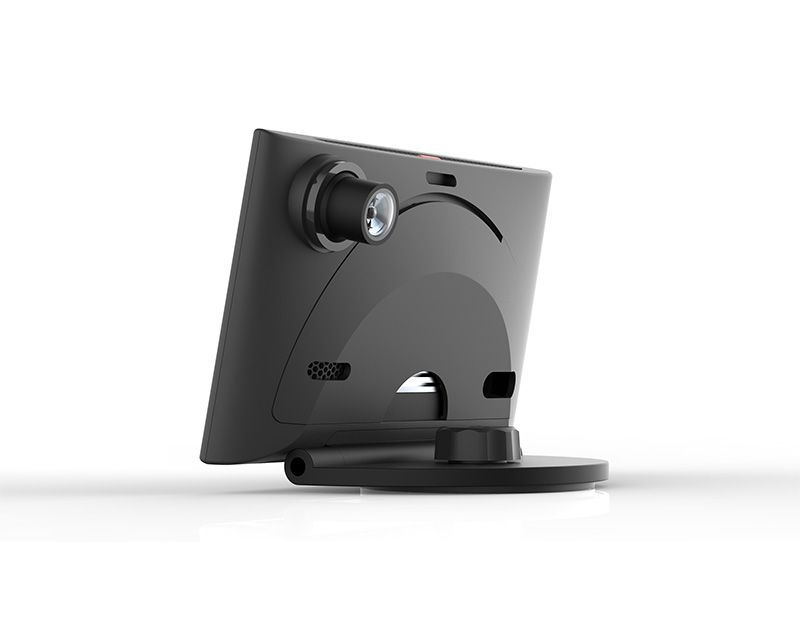

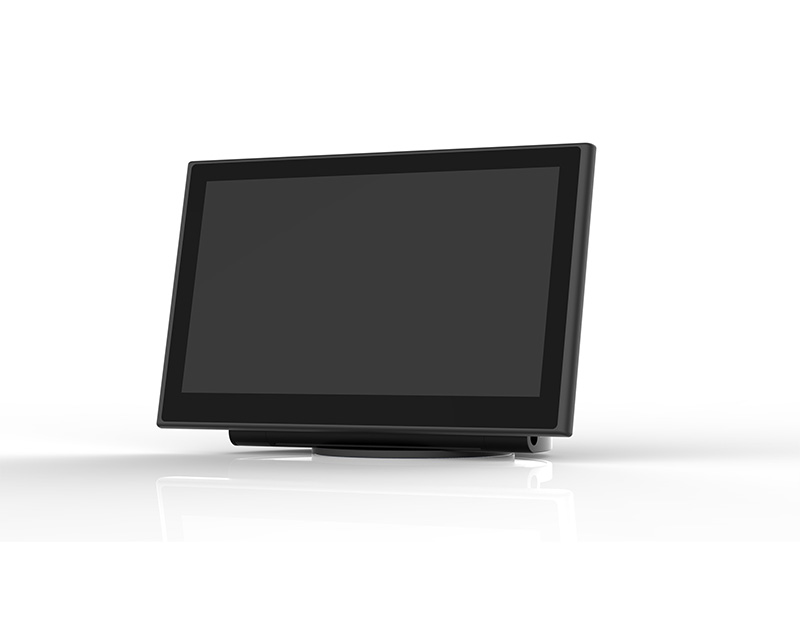

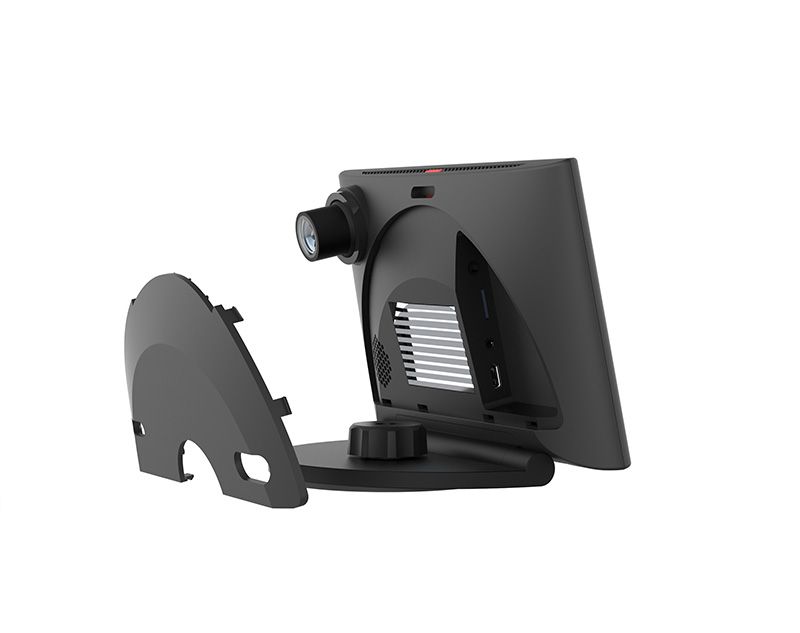

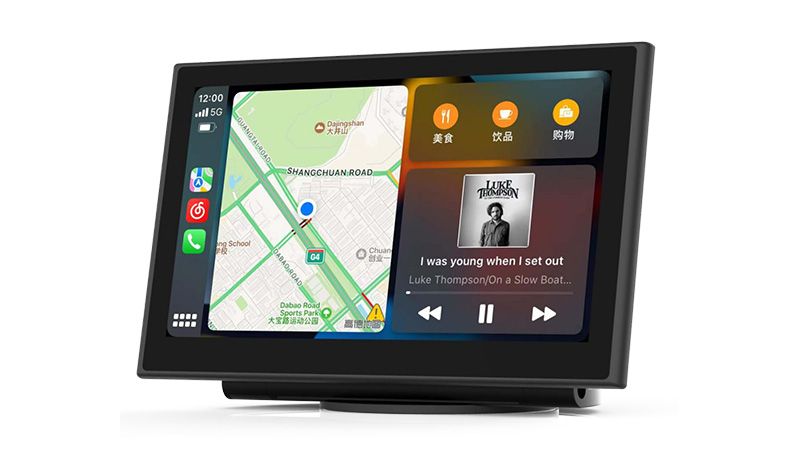

PRODUCT PHOTOS

SPECIFICATION

719 Specifications
General
Processor:		Dual core A53-1.2Ghz
FLASH：		128MB
DDR:		256MB
Display type:		Glass capacitive multi-touch IPS
Display size&resolution:		7.0inch, 1024*600
Display brightness:		495Nit
Battery：		Cell battery（for RTC）
Camera Features
Front lens	Resolution/FPS	Onboard type, 1080p/25fps
	Aperture/construction:	F2.0/2G2P
Rear lens	Resolution/FPS	AHD 1080p/25fps
	Aperture/construction:	F2.0/2G4P
	extention Cable length:	5.5M
	Other features:	Switch to rear view image automatically while reversing, parking assistance line is adjustable
Loop recording		yes, 1min/3min/5min
Parking monitor:		Optional (has to be used together with 3 wires hardwire kit)
Wireless connections&sensors
WiFi:		Support carplay or Android Auto
BT:		4.2
FM transmitter:		Yes
GPS:		No
G-sensor:		Yes
I/O Ports
Mic:		Yes-Electret MIC-1.5*4MM, -34DB
Speaker:		8ohm,2W
Voice command:		Via Siri/Google assistant
AUX socket		Yes, 3.5mm
Rear Camera connector:		2.5mm socket
Micro SD card slot:		Yes, up to 128GB
External GPS antenna socket		N/A
Power input：		Type C
Physical Buttons:		Power, Reset
Advanced features
Light sensor		Through front camera lens
ADAS		Optional
Power consumption:
Working voltage：		DC5V
Working current：		<1A
Quiescent current：		<10MA
Power supply:		Car charger or hardwire kit(optional)
Software and update
OS:		LINUX 4.9
Firmware update:		Through Micro SD card, OTA will be available in future
Environment
Operating Temp：		（-10℃-70℃）
Storage Temp：		（-20℃-80℃）
Mechanical;
Product dimensions:		17.7*10.6cm（6.96″ x 4.17″ x 8.14″)
Product weigiht:		433g
Install method:		Dashboard mount

In The Box

Main device

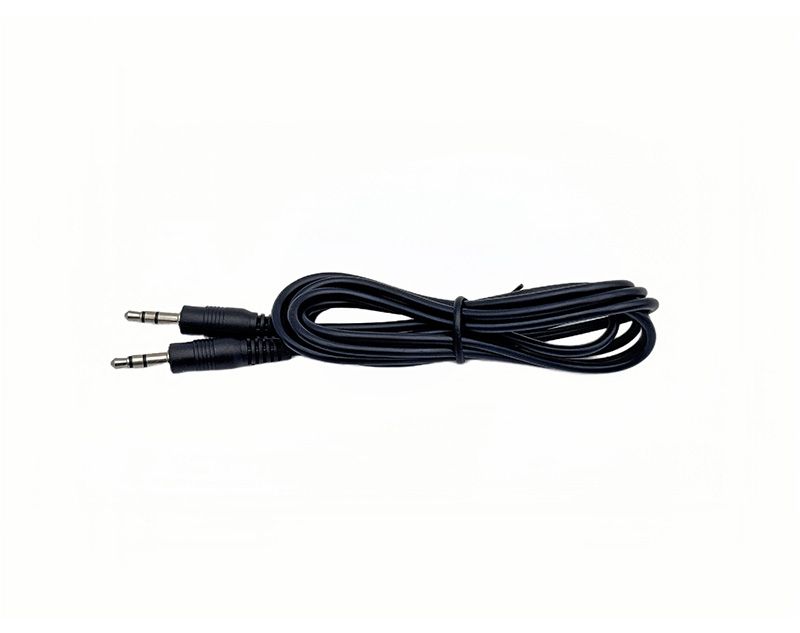

AUX cable

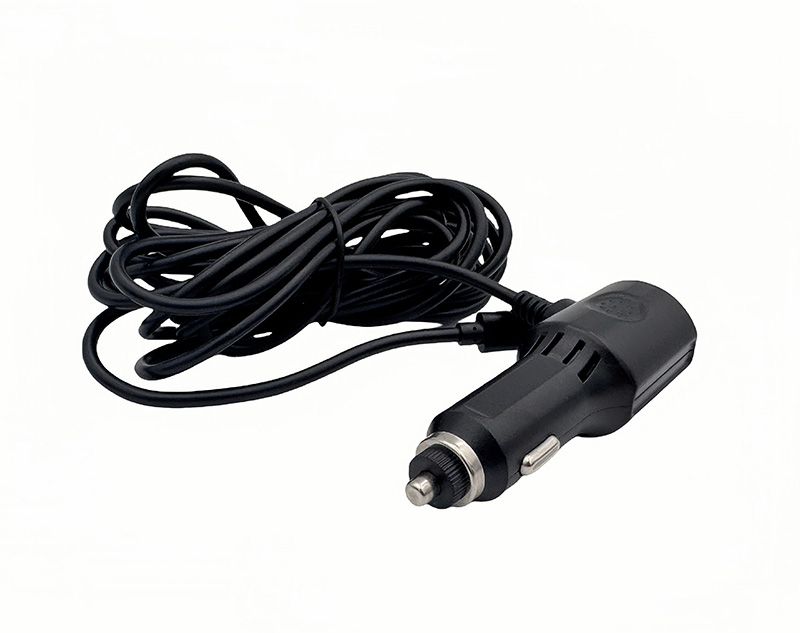

Car Charger

User Manual

Accessories
