Connected Monitor System 935

Elevate your driving experience with the CMS, a versatile device designed to be compatible with all vehicle models. With a simple connection through your car charger’s TYPE-C port, you can transform your vehicle into a wireless CarPlay system. This device boasts a stunning 9.35-inch HD IPS display, ensuring crisp visuals and a user-friendly interface.

USP

01

GPS navigation in real time, connecting to Apple CarPlay and Android Auto, always sync with mobile phone's updated map for deliver the best possible navigation experience.
02

Featuring a 9.35-inch large screen, it is specifically designed for RVs and trucks, offering a more convenient and efficient driving experience for users.
03

Equipping with dual-channel dash camera, this wireless connected monitor enhances your vehicle's safety by providing clear, high-definition visuals of both front and rear views, helping to capture every moment on the road.
04

Seamless intelligent voice control, improve your driving experience by enjoying the incredible comfort of Siri or Google Assistant.
05

Multiple way for audio playing, stream phone audio to car stereo speaker by FM transmitter, Bluetooth or AUX Cable with stereo sound quality.
06

Easy to Install and Wide Compatibility.

935 GUI

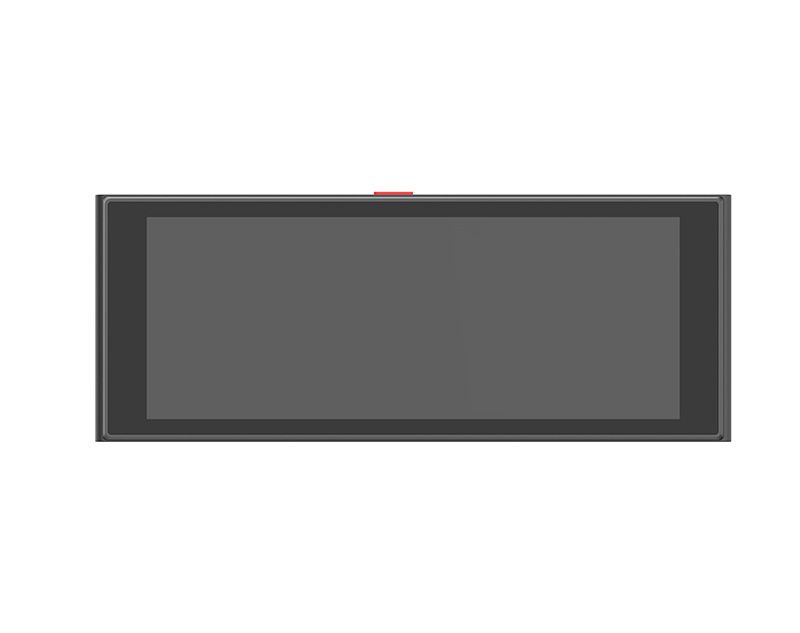

PRODUCT PHOTOS

SPECIFICATION

935 Specifications
General
Processor:		Dual core A53-1.2Ghz
FLASH：		128MB
DDR:		256MB
Display type:		Glass capacitive multi-touch IPS
Display size&resolution:		9.35inch, 1600*600
Display brightness:		450Nit
Battery：		Cell battery（for RTC）
Camera Features
Front lens	Resolution/FPS	Onboard type, 1080p/25fps
	Aperture/construction:	F2.0/2G2P
Rear lens	Resolution/FPS	AHD 1080p/25fps
	Aperture/construction:	F2.0/2G4P
	extention Cable length:	5.5M
	Other features:	Switch to rear view image automatically while reversing, parking assistance line is adjustable
Loop recording		yes, 1min/3min/5min
Parking monitor:		Optional (has to be used together with 3 wires hardwire kit)
Wireless connections&sensors
WiFi:		Support carplay or Android Auto
BT:		4.2
FM transmitter:		Yes
GPS:		No
G-sensor:		Yes
I/O Ports
Mic:		Yes-Electret MIC-1.5*4MM, -34DB
Speaker:		8ohm,2W
Voice command:		Via Siri/Google assistant
AUX socket		Yes, 3.5mm
Rear Camera connector:		2.5mm socket
Micro SD card slot:		Yes, up to 256GB
External GPS antenna socket		N/A
Power input：		Type C
Physical Buttons:		Power, Reset
Advanced features
Light sensor		Through front camera lens
ADAS		Optional
Power consumption:
Working voltage：		DC5V
Working current：		<1A
Quiescent current：		<10MA
Power supply:		Car charger or hardwire kit(optional)
Software and update
OS:		LINUX 4.9
Firmware update:		Through Micro SD card, OTA will be available in future
Environment
Operating Temp：		（-10℃-70℃）
Storage Temp：		（-20℃-80℃）
Mechanical;
Product dimensions:		24.7*9.7cm (9.35')
Product weigiht:		436g
Install method:		Dashboard mount

In The Box

Main device

AUX cable

Car Charger

Dashboard Mount

User Manual

Accessories
