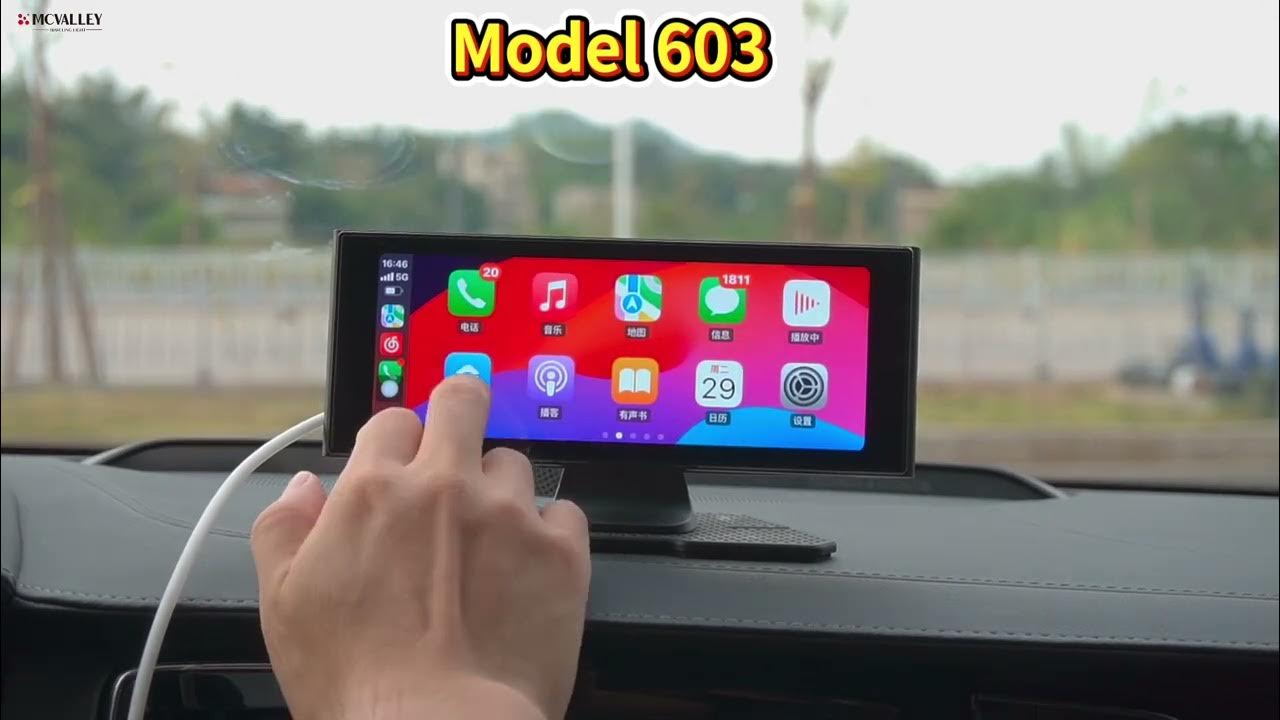

Connected Monitor System 603

Wireless CarPlay and Android Auto with built-in dash cam

This CMS adaptable to any car model. Experience a 6.86-inch IPS HD Display, seamlessly integrates advanced technology with sleek aesthetics. Navigate with ease, access your favorite apps, and enjoy a crystal-clear view of every detail, all while enhancing the overall ambiance of your vehicle's interior.

USP

01

Supporting CarPlay and Android Auto.
02

Equipping Auto Dimming, adjust display brightness automatically via inbuild light-sensor to accommodate ambient light naturally.
03

Featuring high brightness IPS LCD Screen
04

Up to dual channel high definition (1080P or Higher) and wide angle camera for recording all moments of trip.

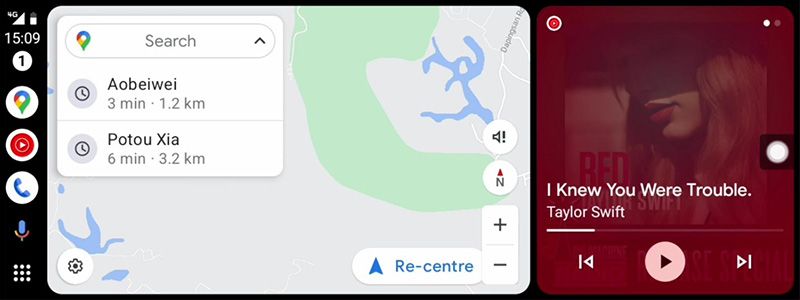

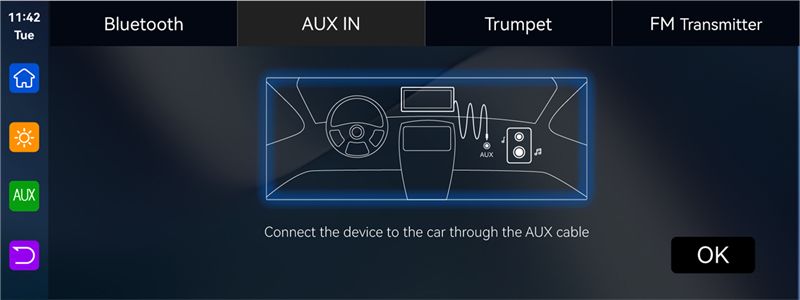

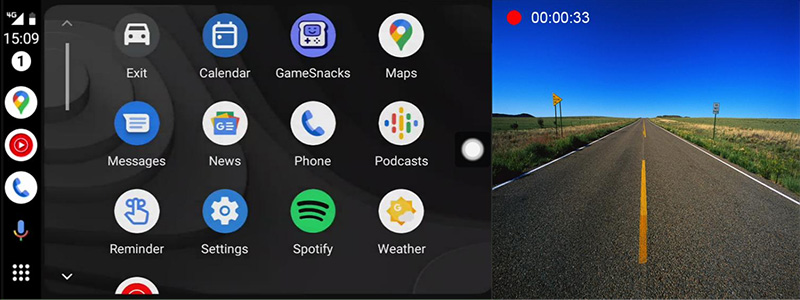

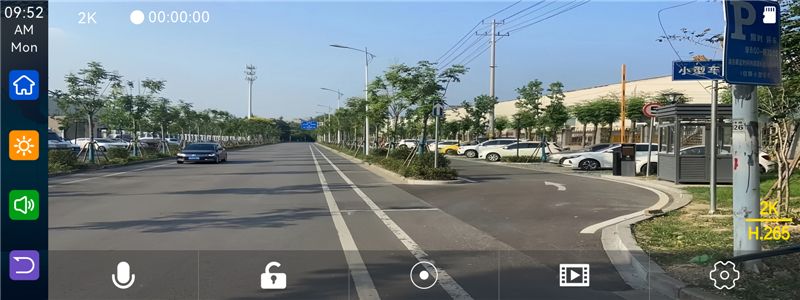

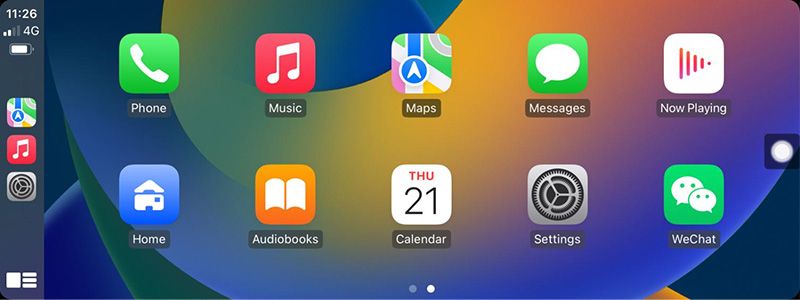

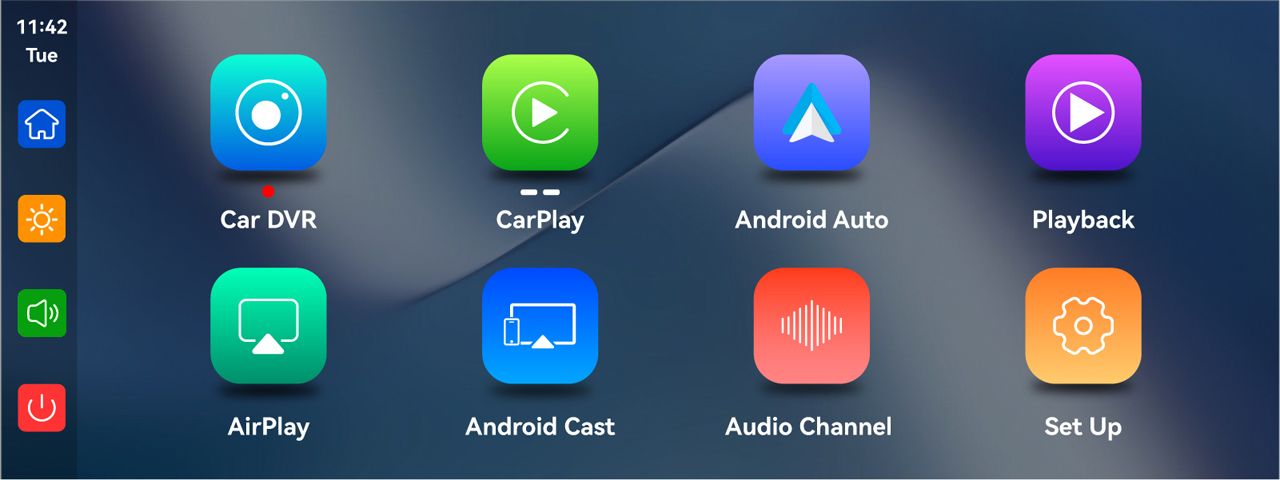

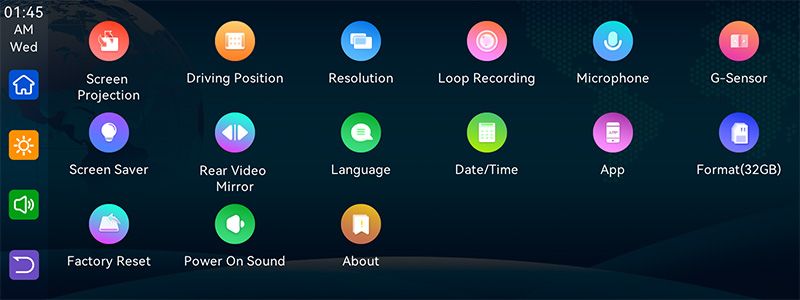

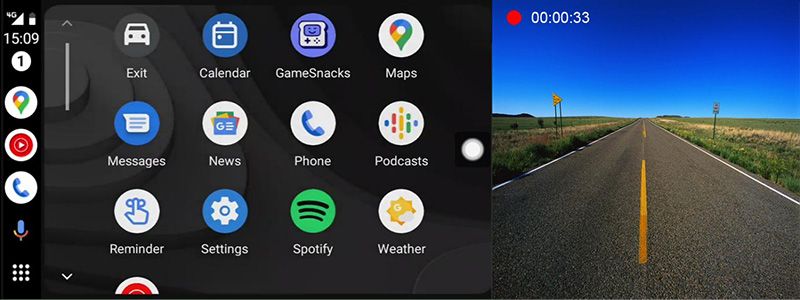

603 UI

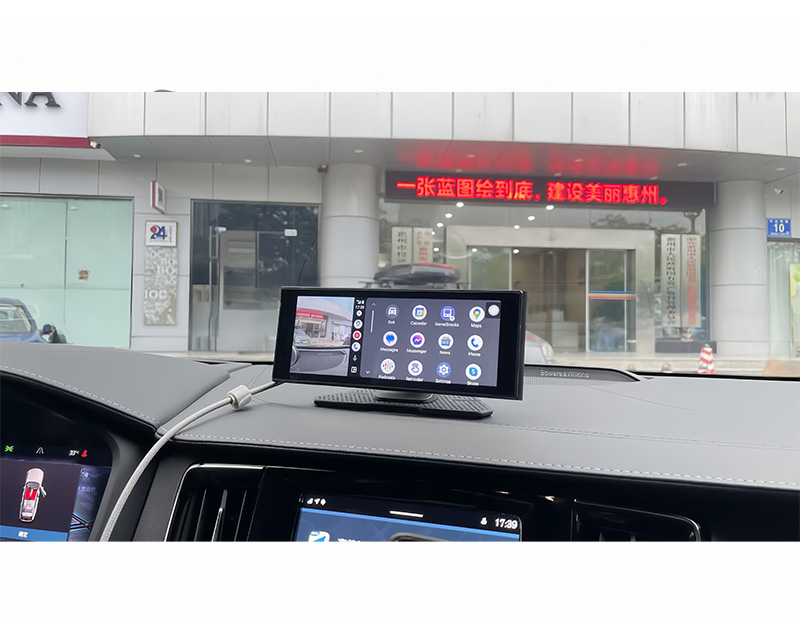

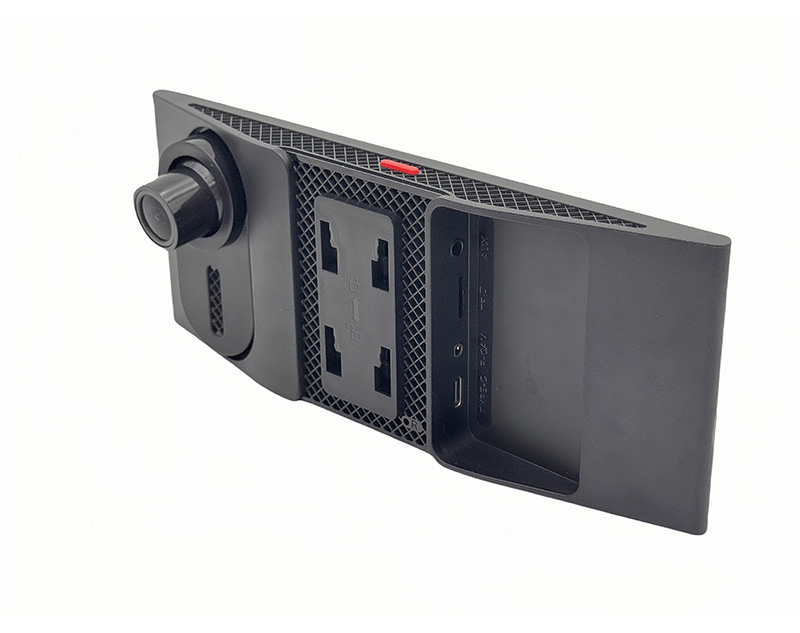

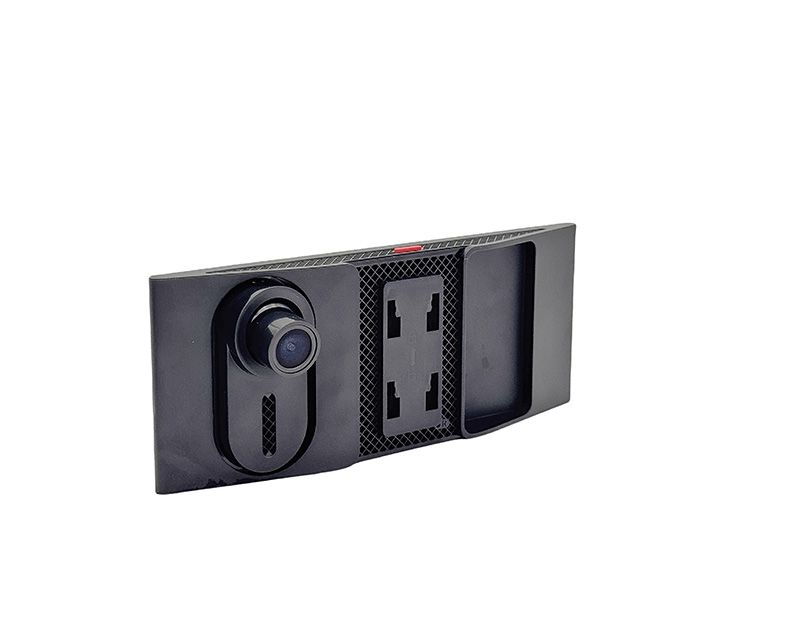

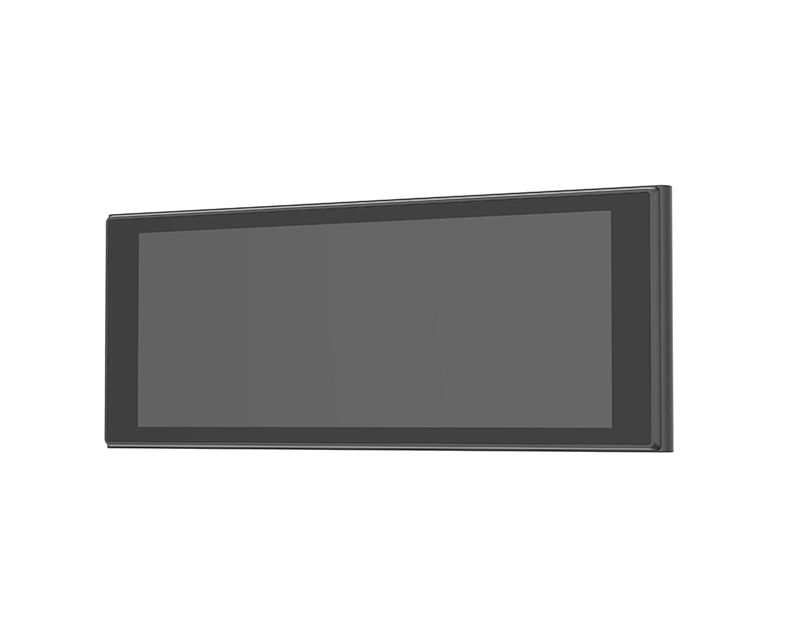

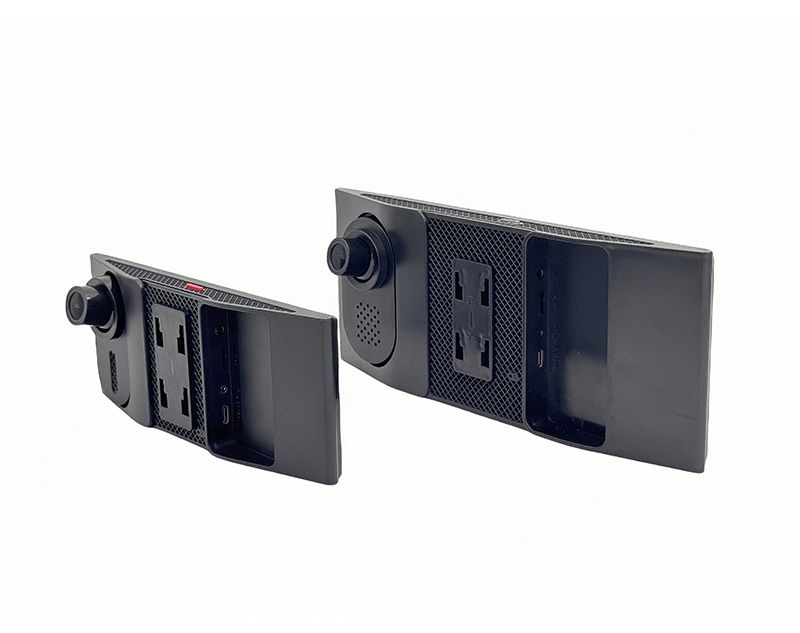

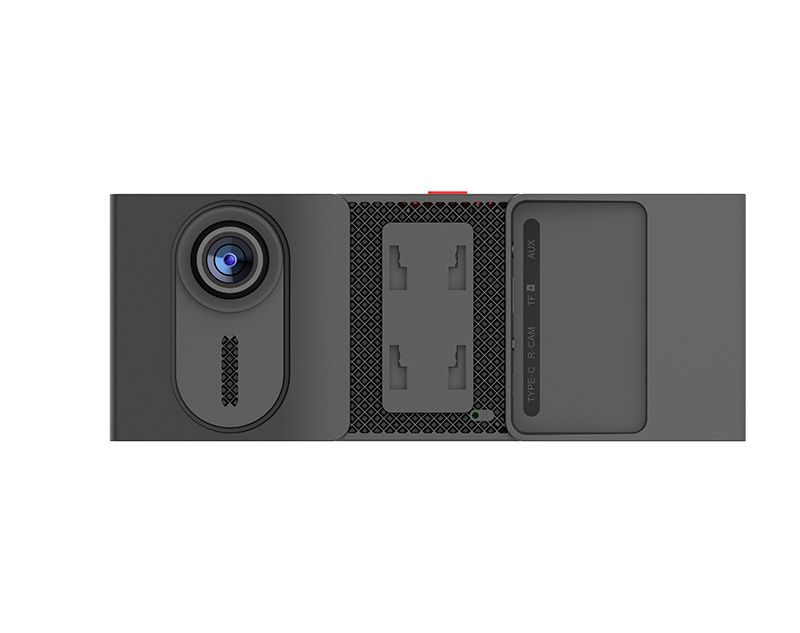

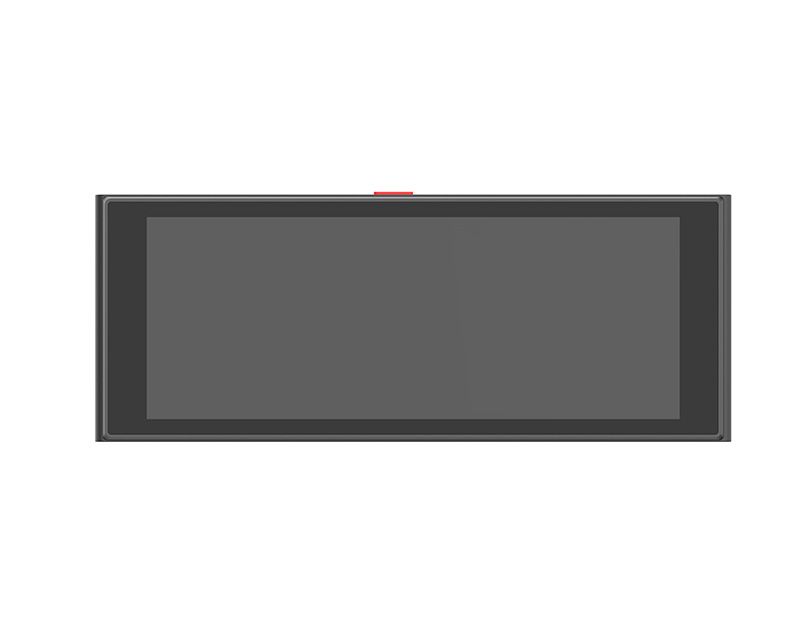

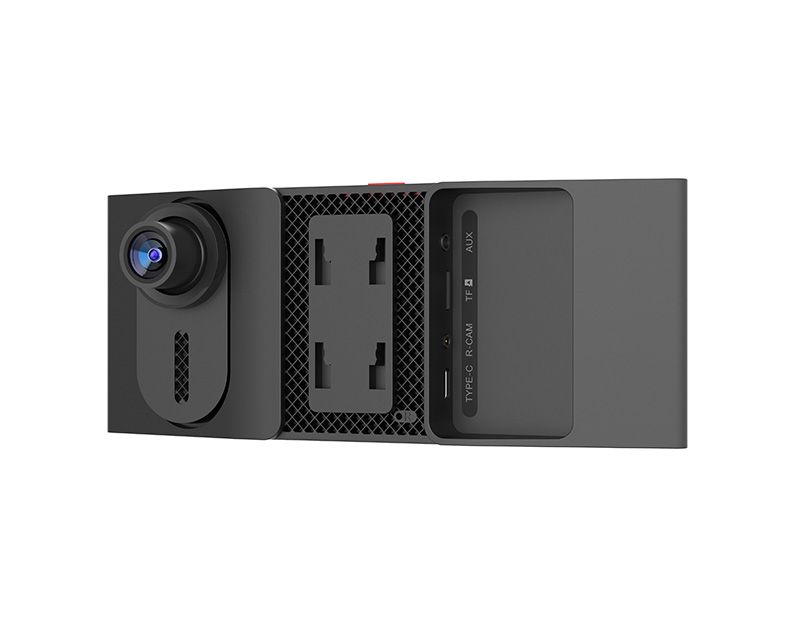

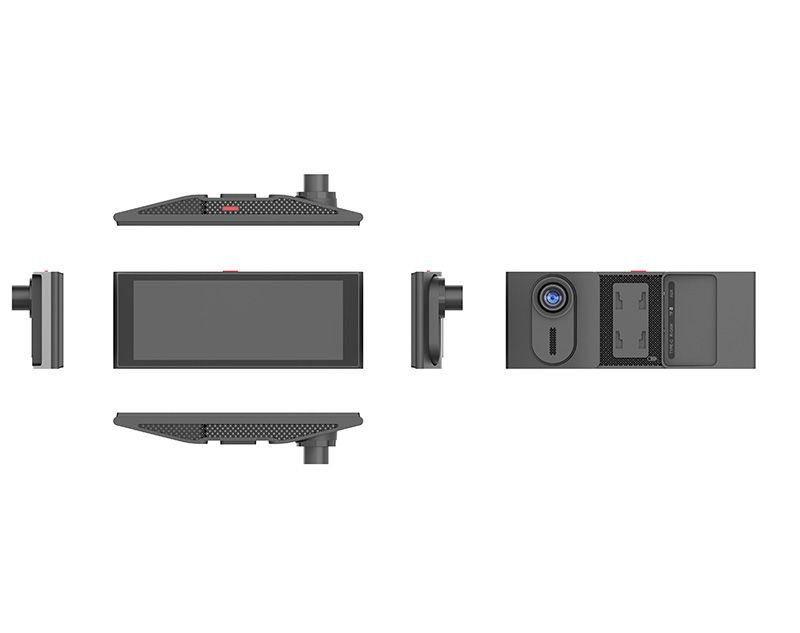

PRODUCT PHOTOS

SPECIFICATION

603 Specifications
General
Processor:		Dual core A53-1.2Ghz
FLASH：		128MB
DDR:		256MB
Display type:		Glass capacitive multi-touch IPS
Display size&resolution:		6.86.0inch, 1280*480
Display brightness:		600Nit
Battery：		Cell battery（for RTC）
Camera Features
Front lens	Resolution/FPS	Onboard type, 1080p/25fps
	Aperture/construction:	F2.0/2G2P
Rear lens	Resolution/FPS	AHD 1080p/25fps
	Aperture/construction:	F2.0/2G4P
	extention Cable length:	5.5M
	Other features:	Switch to rear view image automatically while reversing, parking assistance line is adjustable
Loop recording		yes, 1min/3min/5min
Parking monitor:		Optional (has to be used together with 3 wires hardwire kit)
Wireless connections&sensors
WiFi:		Support carplay or Android Auto
BT:		4.2
FM transmitter:		Yes
GPS:		No
G-sensor:		Yes
I/O Ports
Mic:		Yes-Electret MIC-1.5*4MM, -34DB
Speaker:		8ohm,2W
Voice command:		Via Siri/Google assistant
AUX socket		Yes, 3.5mm
Rear Camera connector:		2.5mm socket
Micro SD card slot:		Yes, up to 256GB
External GPS antenna socket		N/A
Power input：		Type C
Physical Buttons:		Power, Reset
Advanced features
Light sensor		Through front camera lens
ADAS		Optional
Power consumption:
Working voltage：		DC5V
Working current：		<1A
Quiescent current：		<10MA
Power supply:		Car charger or hardwire kit(optional)
Software and update
OS:		LINUX 4.9
Firmware update:		Through Micro SD card, OTA will be available in future
Environment
Operating Temp：		（-10℃-70℃）
Storage Temp：		（-20℃-80℃）
Mechanical;
Product dimensions:		19.277.583.98cm （6.61″ x 2.9″ x 6.86″)
Product weigiht:		253g
Install method:		Dashboard mount, suction mount, aircon vent mount

In The Box

Main device

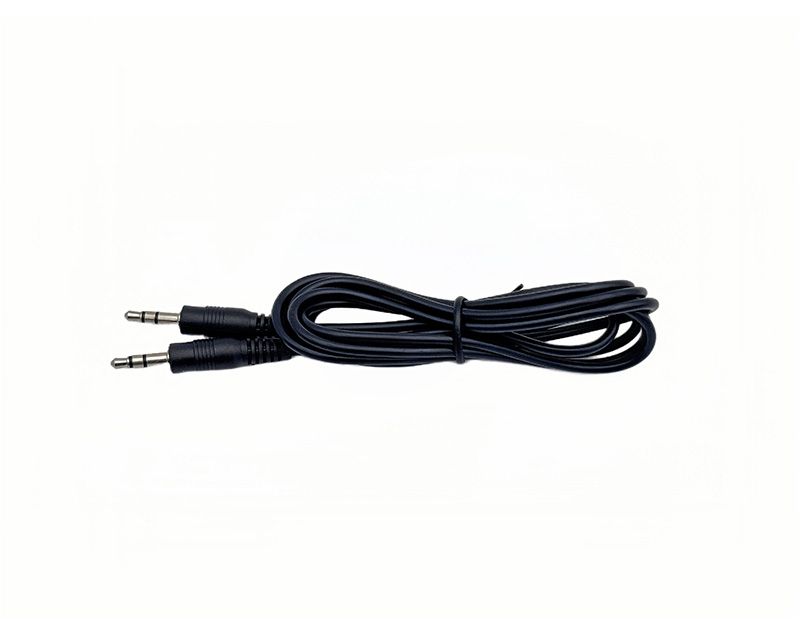

AUX cable

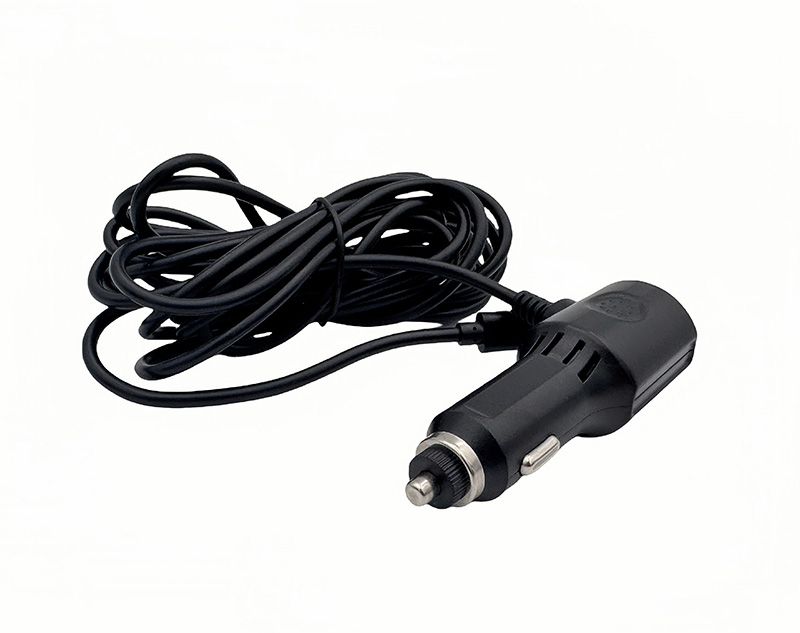

Car Charger

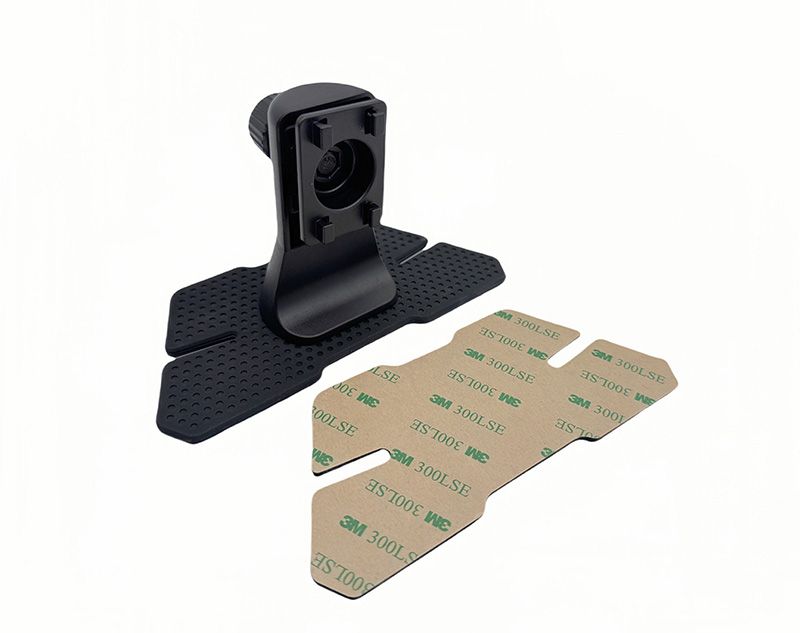

Dashboard Mount

User Manual
