Android Sat Nav System 709AS

This Android Sat Nav Device is a premium product specifically tailored for off-road adventures. It integrates numerous advanced technologies to provide users with an unparalleled navigation and entertainment experience, whether navigating rugged mountain trails or vast deserts.

The device is equipped with a high-performance GPS system，features a high-brightness IPS+ multi-touch screen.

USP

01

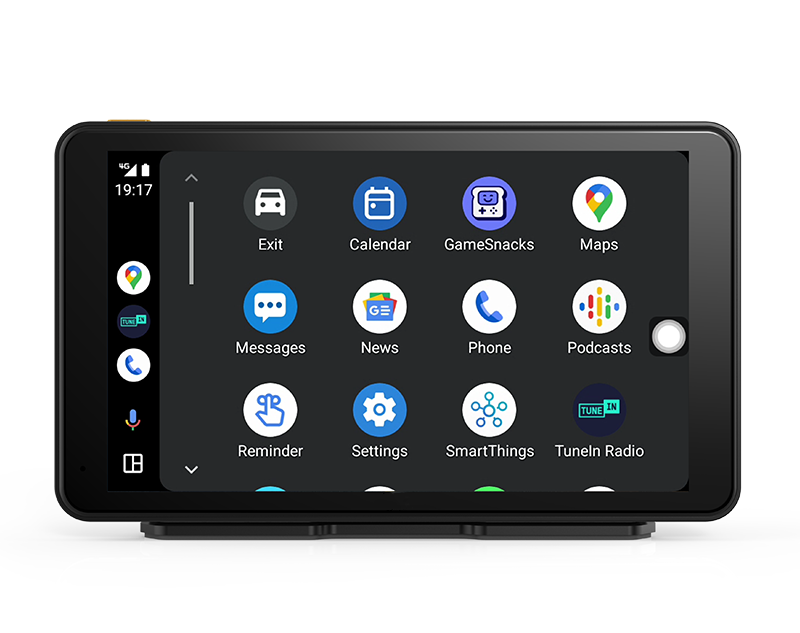

Supporting CarPlay and Android Auto, providing universal compatibility with your smartphone
02

Offering seamless Bluetooth integration, allowing you to easily connect your devices without the hassle of cables, enhancing your driving experience
03

Providing an intuitive touch screen interface, navigate through apps and settings effortlessly.
04

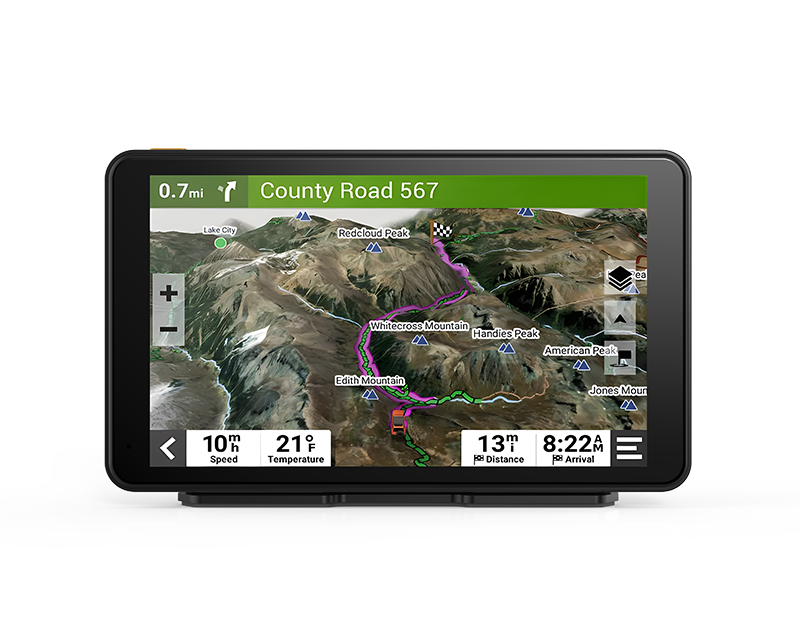

Equipping with a high-performance GPS system that provides real-time and accurate location information, ensuring users never lose their way in any environment.

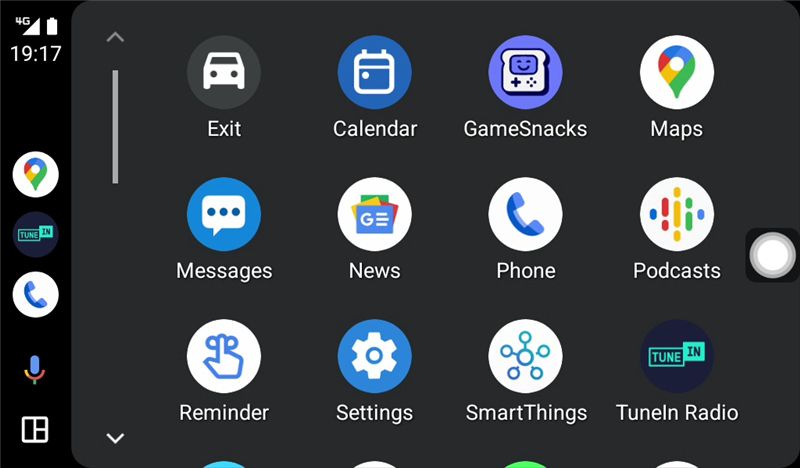

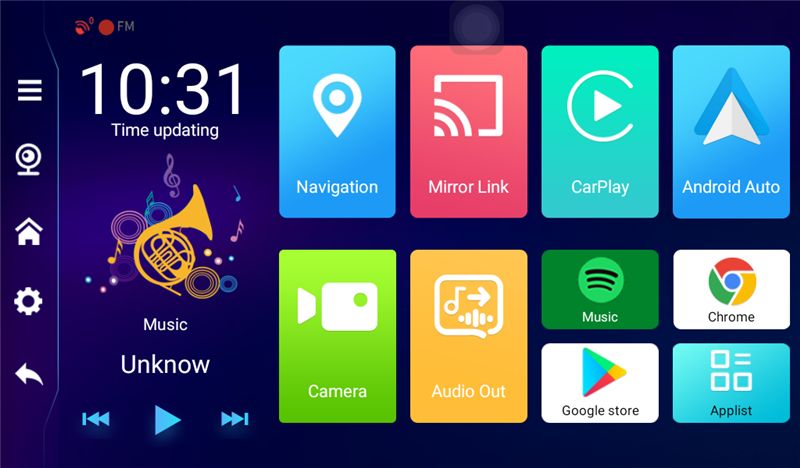

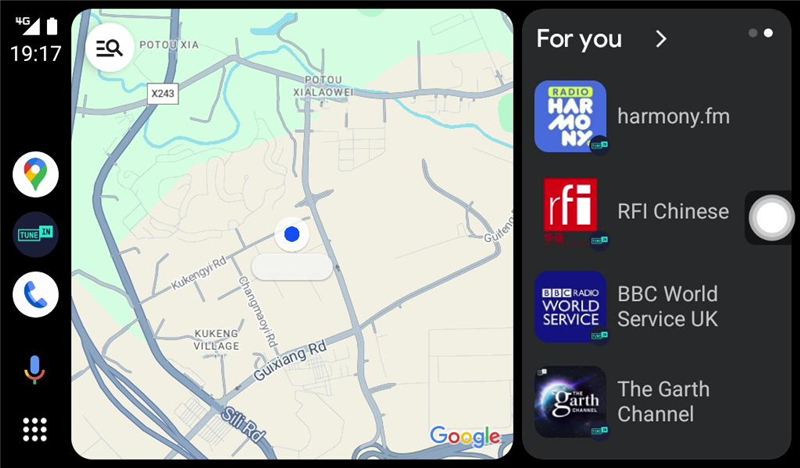

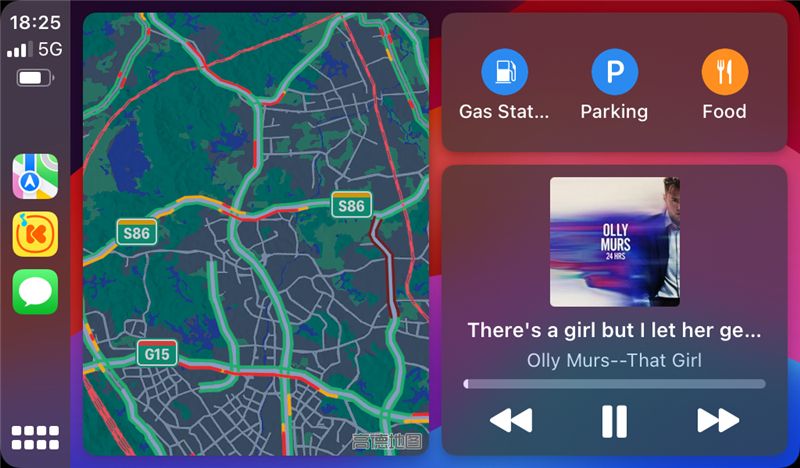

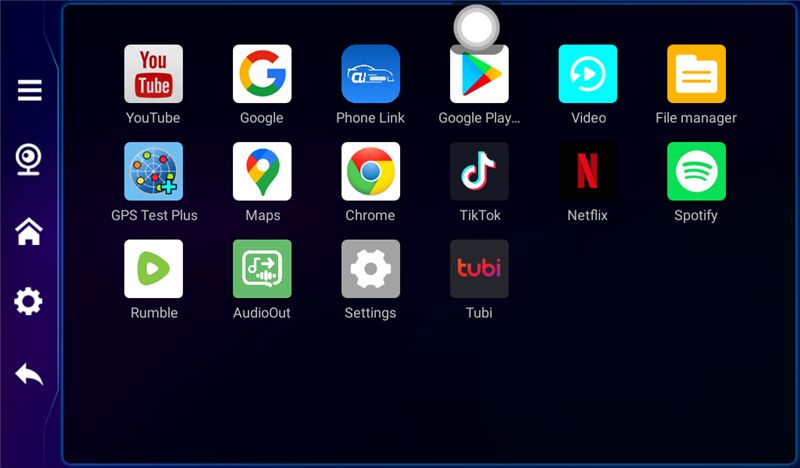

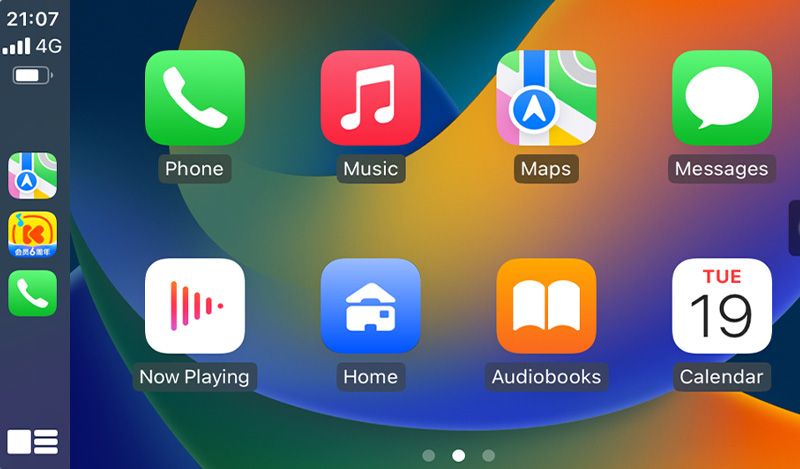

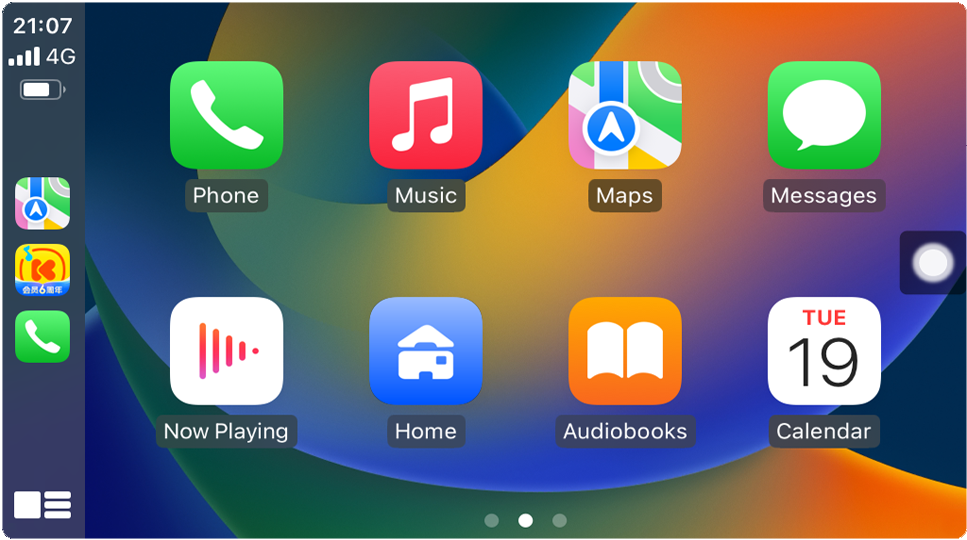

709AS GUI

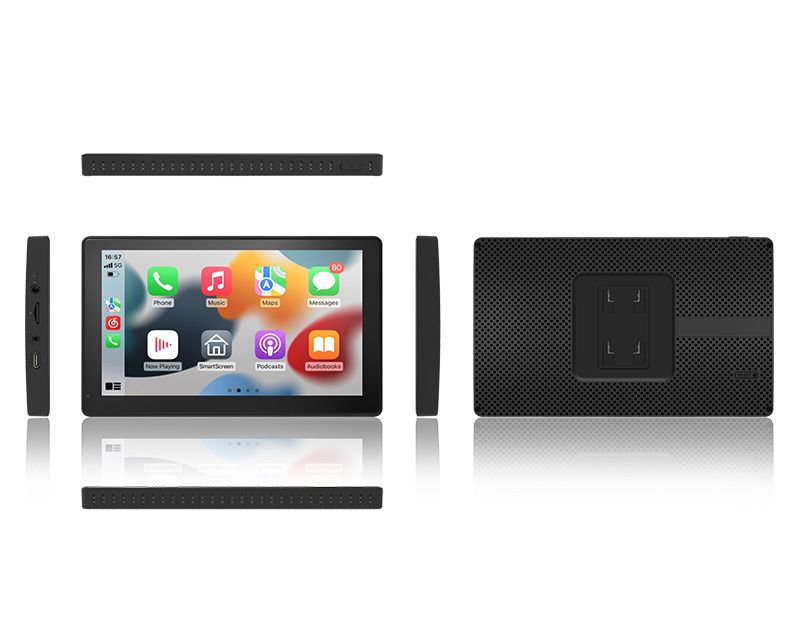

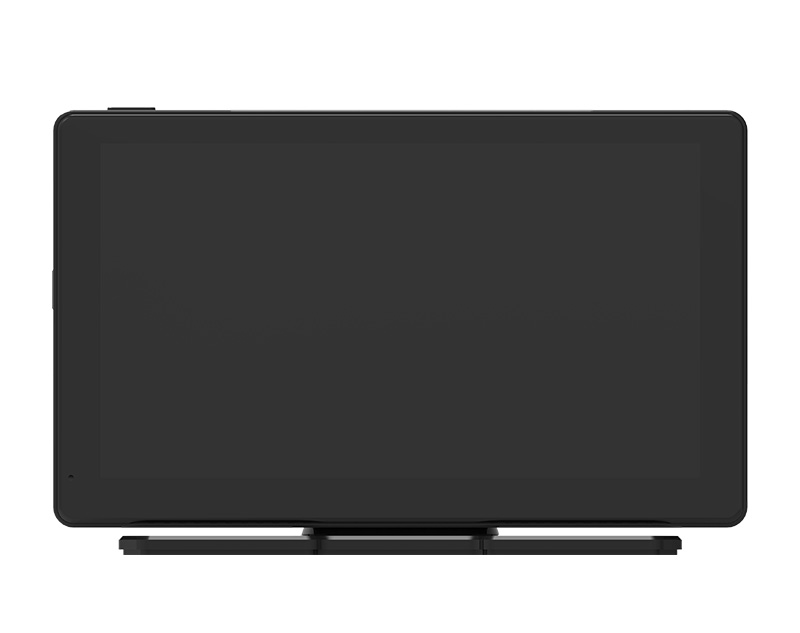

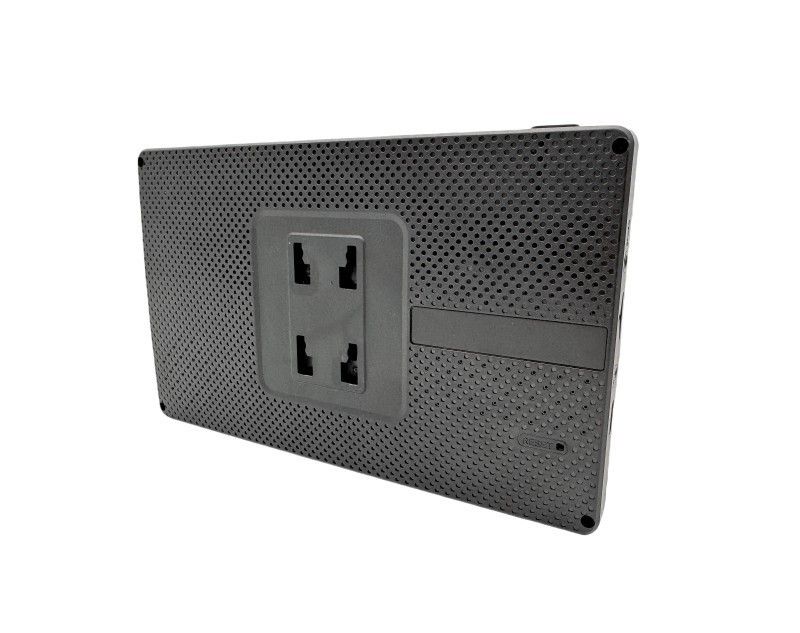

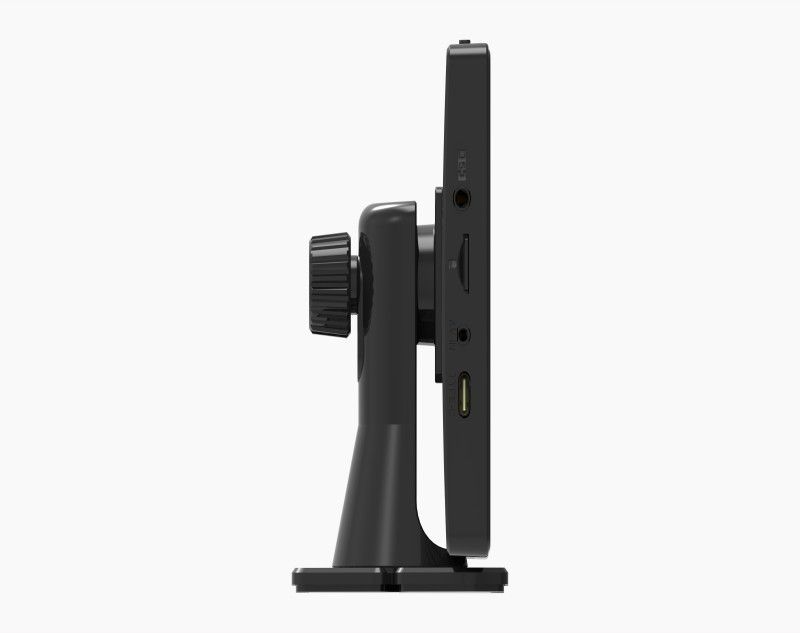

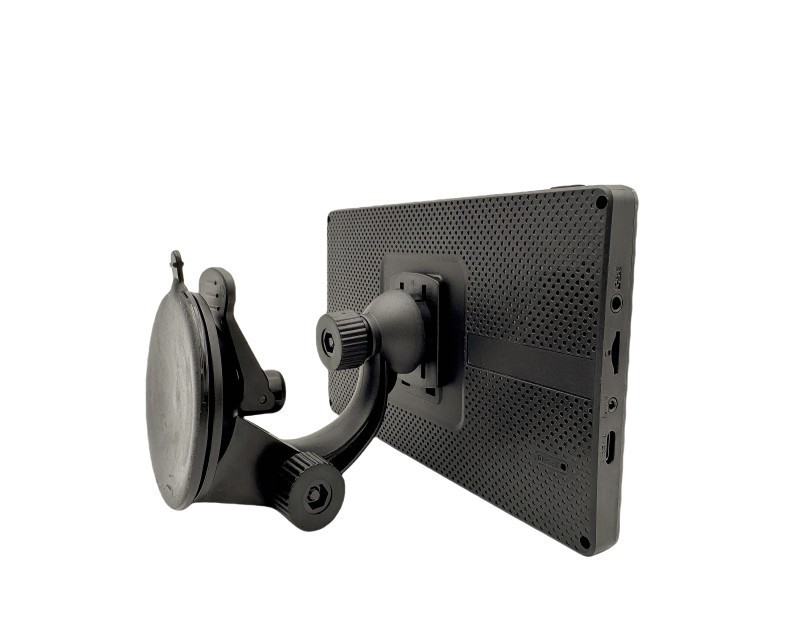

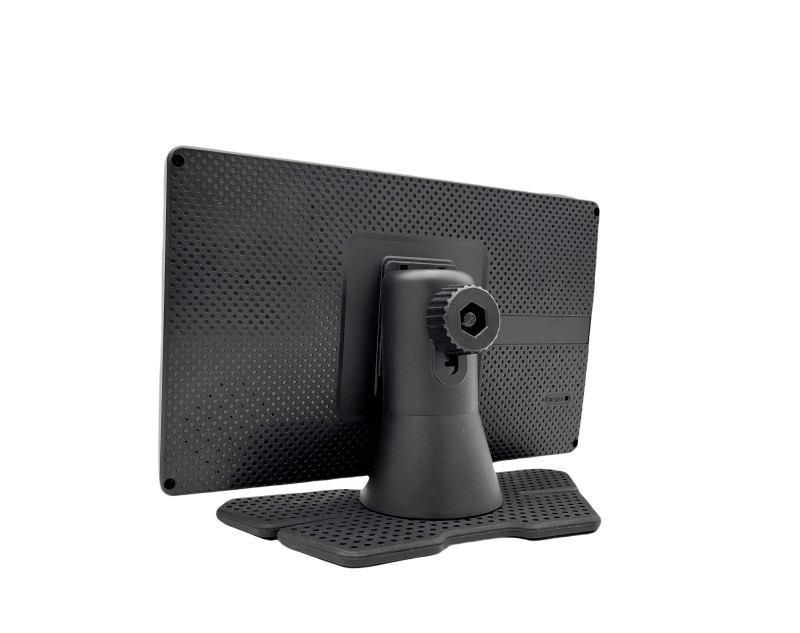

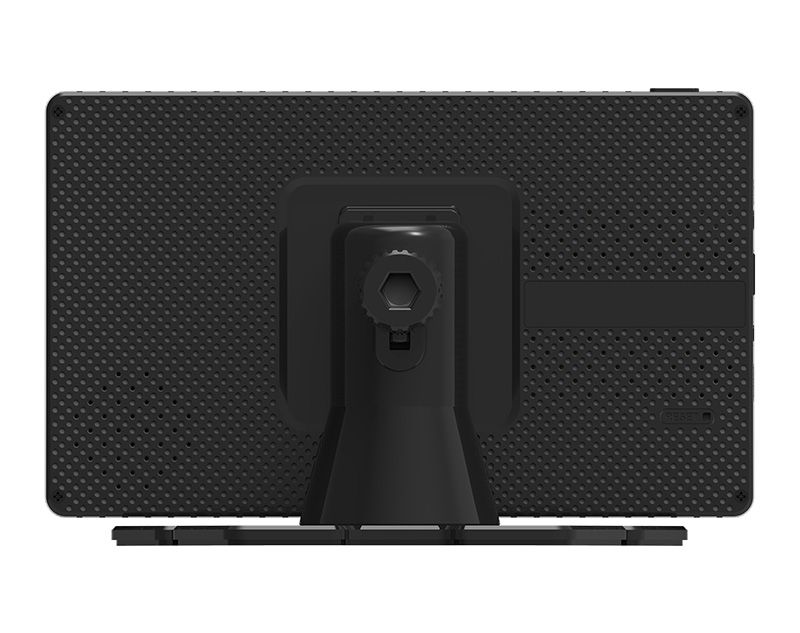

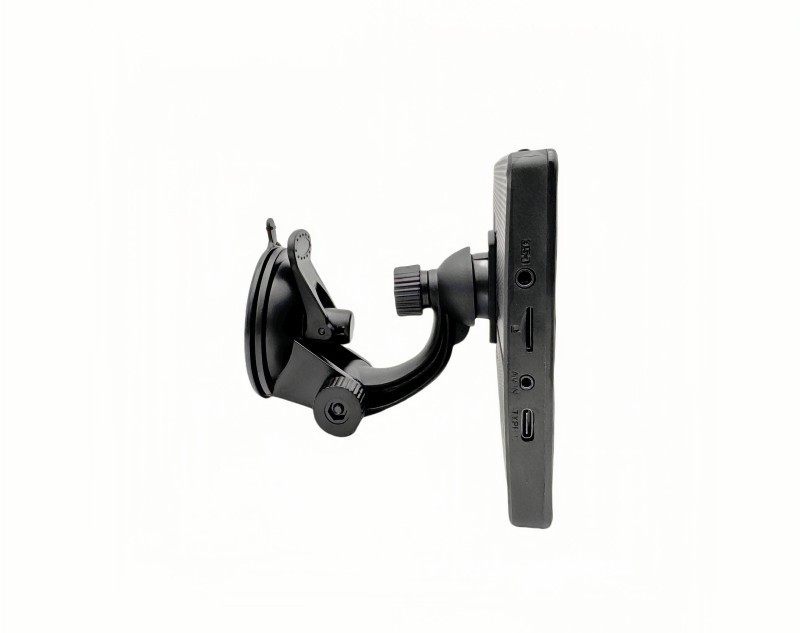

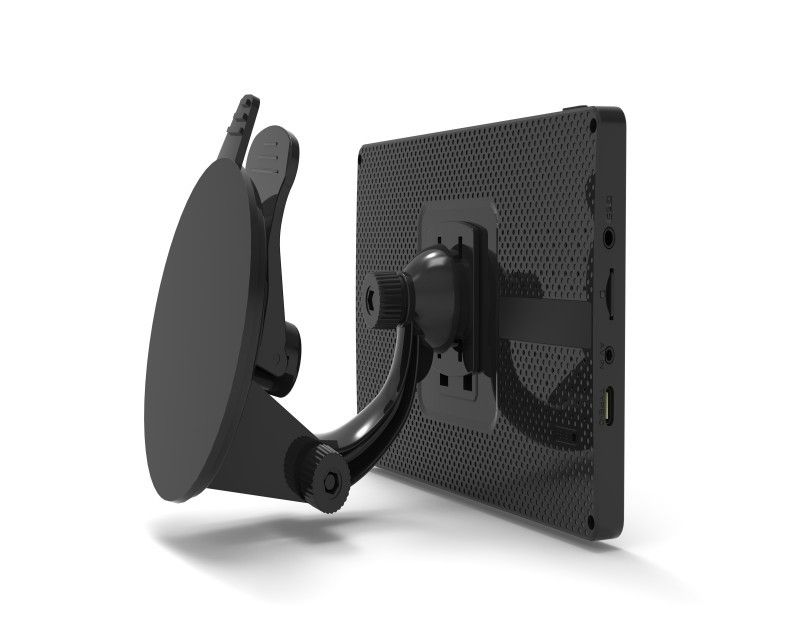

PRODUCT PHOTOS

SPECIFICATION

709AS Specifications
General
Processor:		Quad Core 8541E
FLASH：		4G
DDR:		64GB
Display type:		Glass capacitive multi-touch IPS
Display size&resolution:		7.0inch, 1024*600
Display brightness:		495Nit
Battery：		Super capacitor
Camera Features
Front lens	Resolution/FPS	N/A
	Aperture/construction:	N/A
Rear lens	Resolution/FPS	AHD 1080p/25fps
	Aperture/construction:	F2.0/2G4P
	extention Cable length:	5.5M
	Other features:	Switch to rear view image automatically while reversing, parking assistance line is adjustable
Loop recording		N/A
Parking monitor:		N/A
Wireless connections&sensors
WiFi:		Support carplay or Android Auto
BT:		4.2
FM transmitter:		Yes
GPS:		Yes
G-sensor:		No
I/O Ports
Mic:		Yes-Electret MIC-1.5*4MM, -34DB
Speaker:		8ohm,2W
Voice command:		Via Siri/Google assistant
AUX socket		Yes, 3.5mm
Rear Camera connector:		2.5mm socket
Micro SD card slot:		Yes, up to 128GB
External GPS antenna socket		N/A
Power input：		Type C
Physical Buttons:		Power, Reset
Advanced features
Light sensor		N/A
ADAS		N/A
Power consumption:
Working voltage：		DC5V
Working current：		<1A
Quiescent current：		<10MA
Power supply:		Car charger or hardwire kit(optional)
Software and update
OS:		Android
Firmware update:		Through Micro SD card and OTA
Environment
Operating Temp：		（-10℃-70℃）
Storage Temp：		（-20℃-80℃）
Mechanical;
Product dimensions:		17.7*10.6cm（6.96″ x 4.17″ x 8.14″)
Product weigiht:		294g
Install method:		Dashboard mount

In The Box

Main device

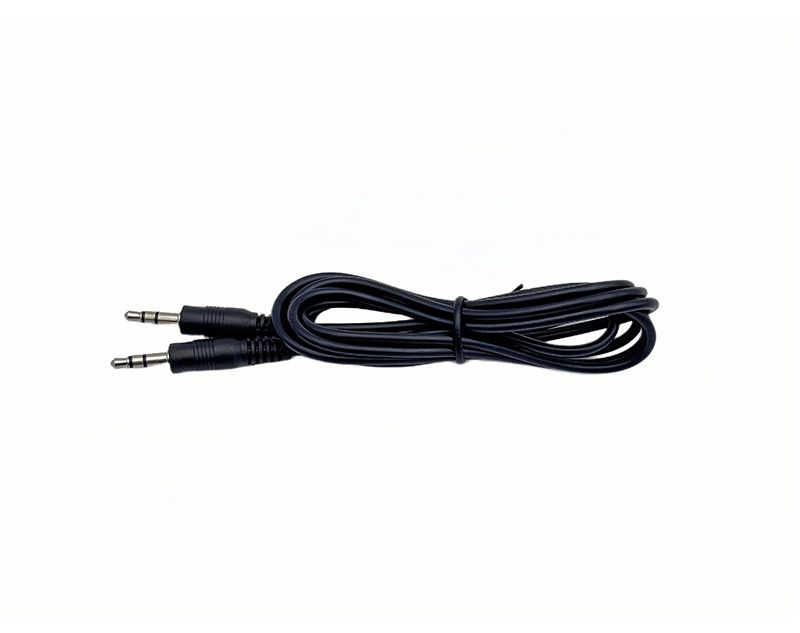

AUX cable

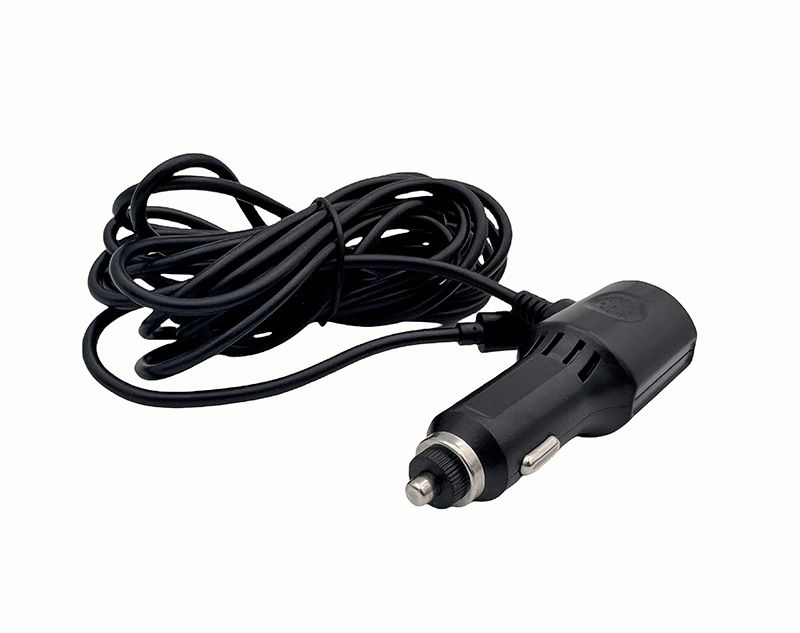

Car Charger

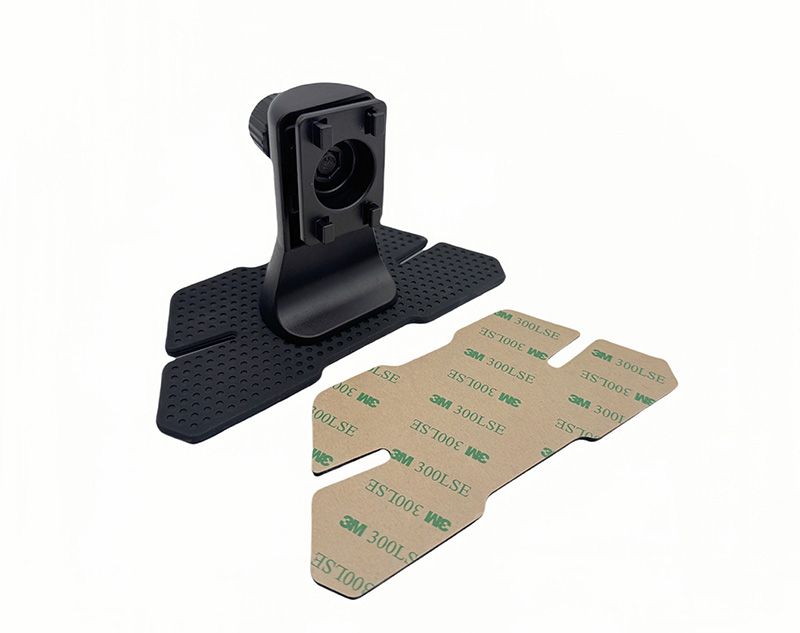

Dashboard Mount

User Manual

Accessories
