Connected Monitor System 709A

Wireless CarPlay and Android Auto

Display size

7'5'

Built-in Dash Cam

Yes No

Experience safe and secure driving with our 7' entry-level model, designed to provide you with peace of mind on the road. With 7' IPS touch screen display. its fits all Car types. Simply power it via the TYPE-C port using the car charger to upgrade your vehicle with wireless CarPlay.

USP

01

Supporting CarPlay and Android Auto.
02

Equipping auto dimming, adjust display brightness automatically via inbuild light-sensor to accommodate ambient light naturally.
03

Offering seamless Bluetooth integration, allowing you to easily connect your devices without the hassle of cables, enhancing your driving experience
04

Featuring an optional rear cam and alternative installation ways.

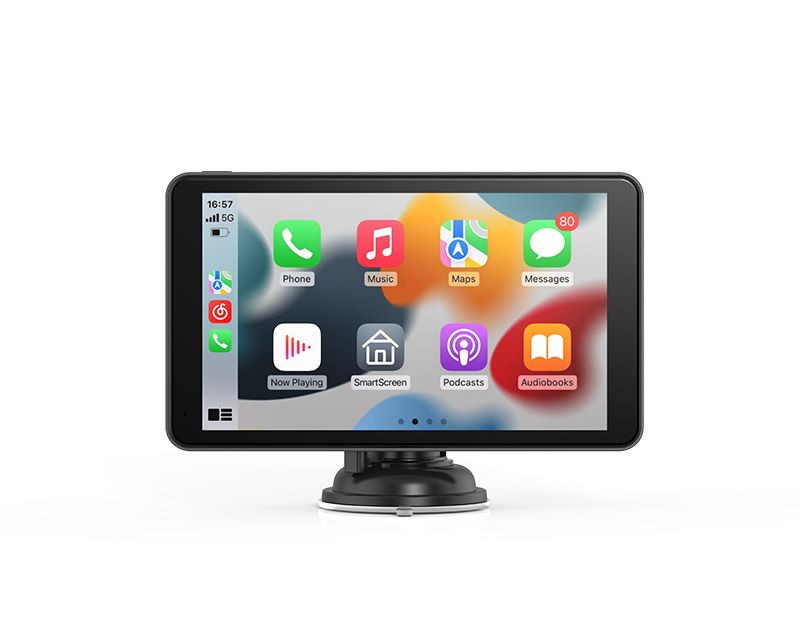

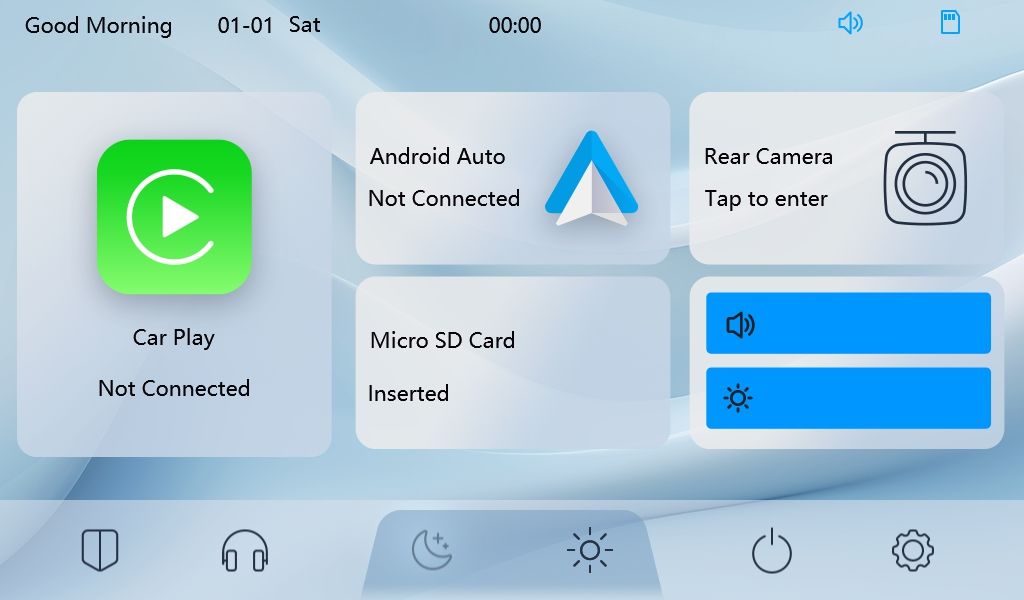

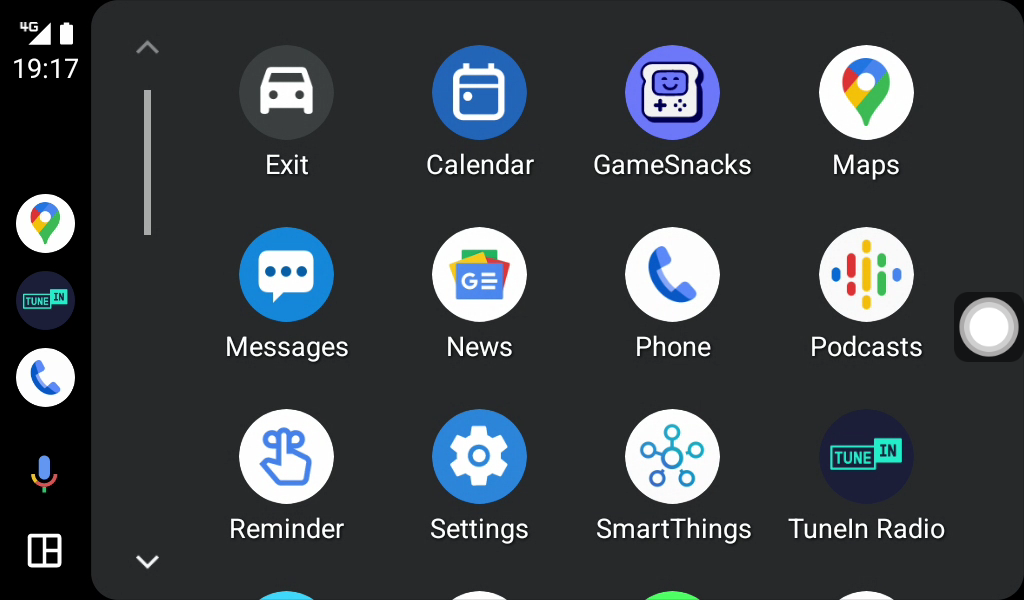

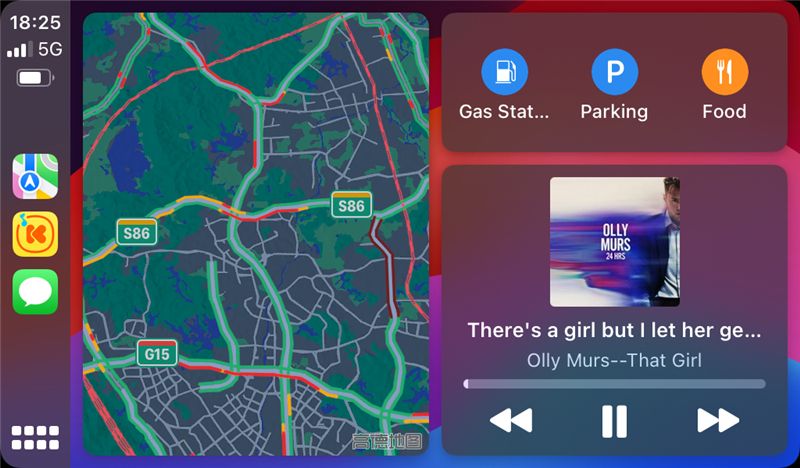

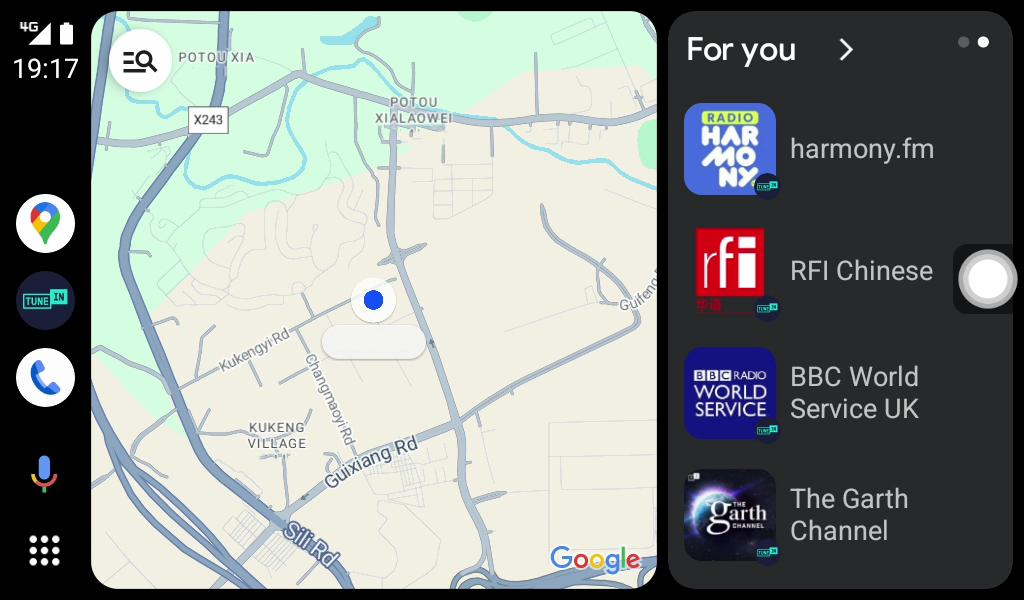

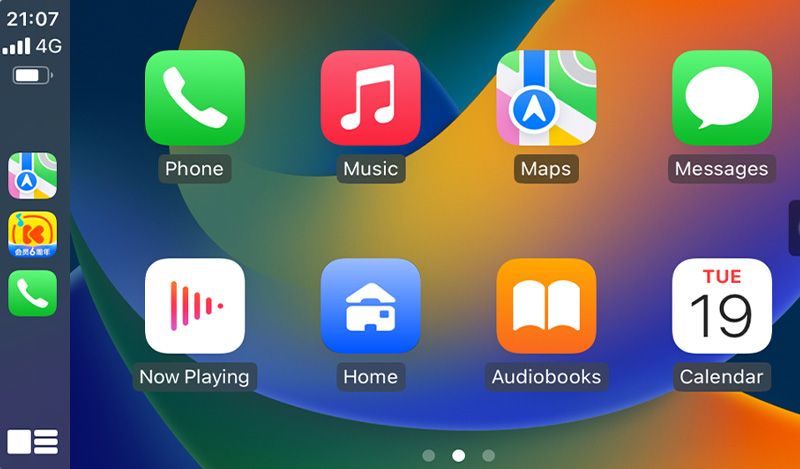

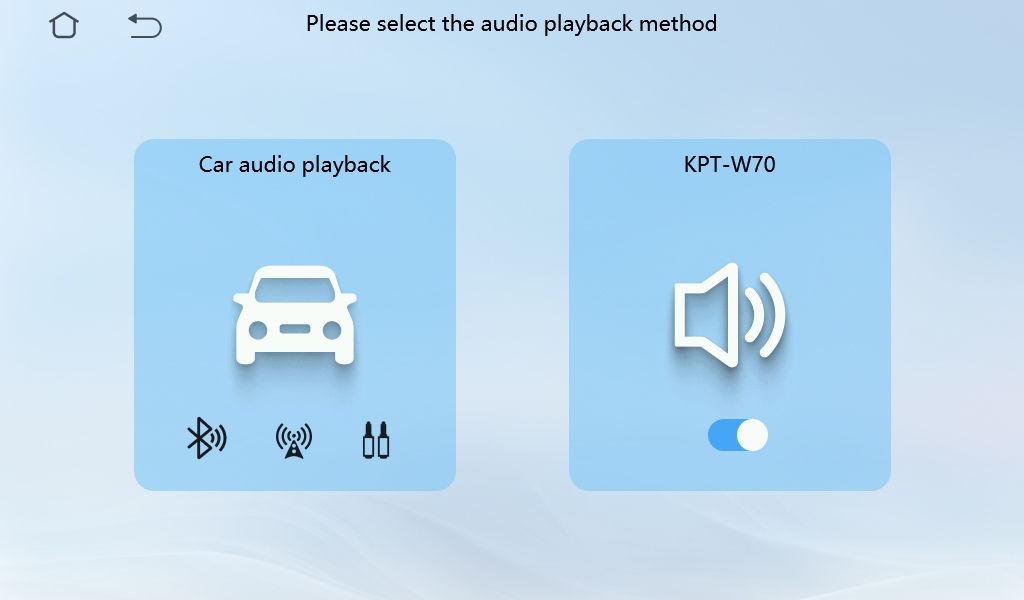

709A GUI

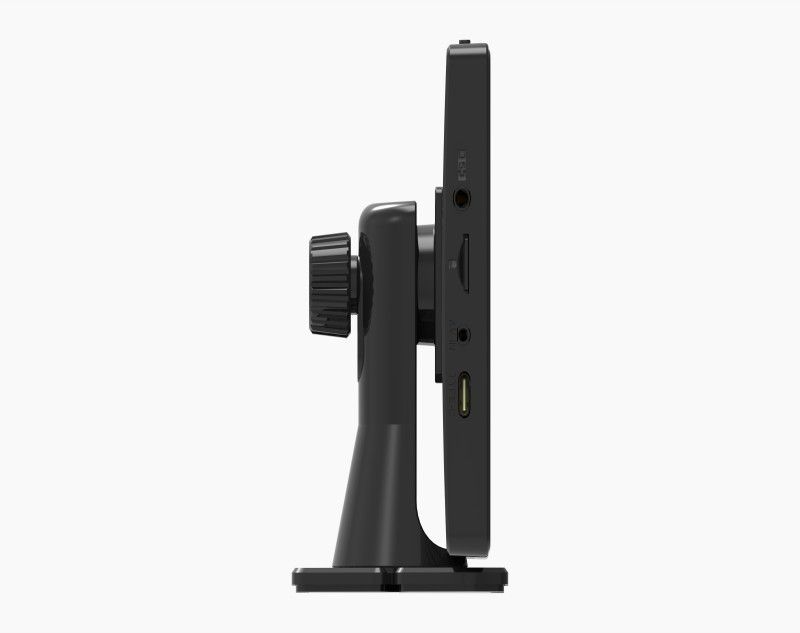

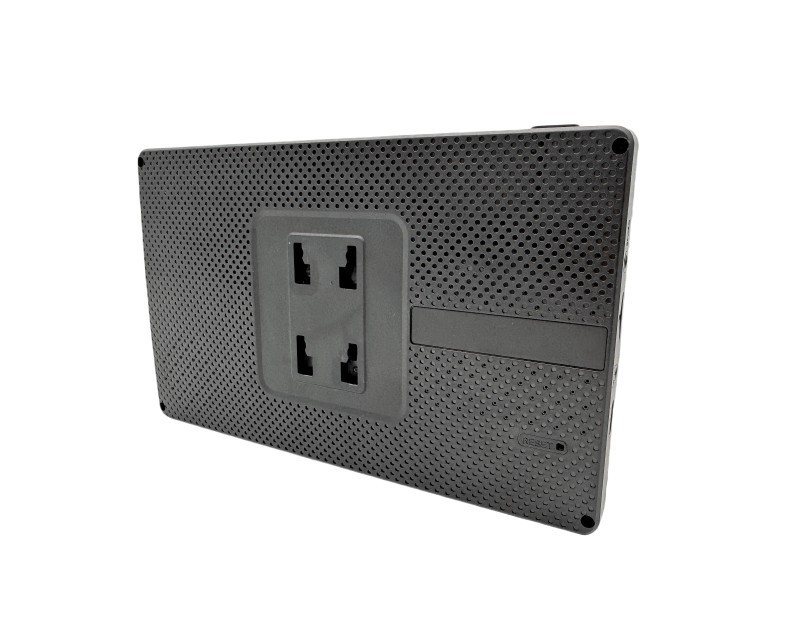

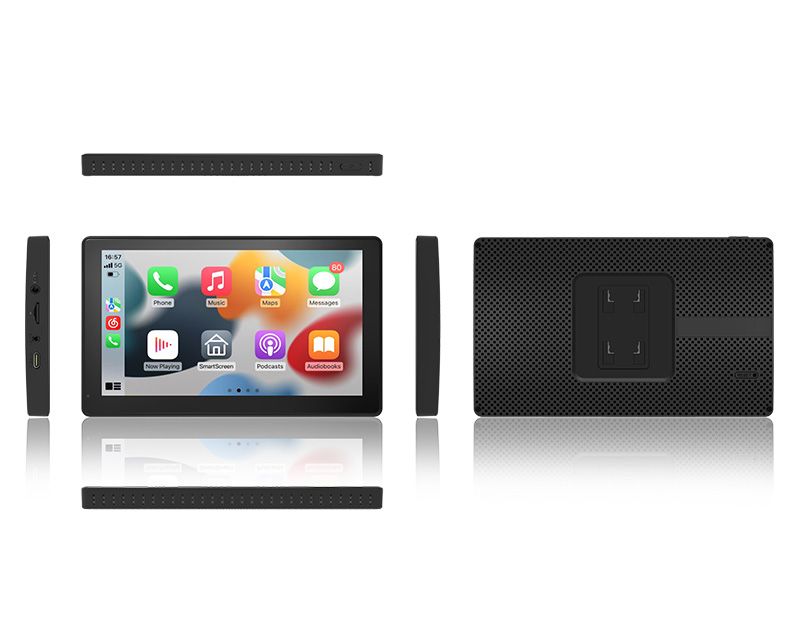

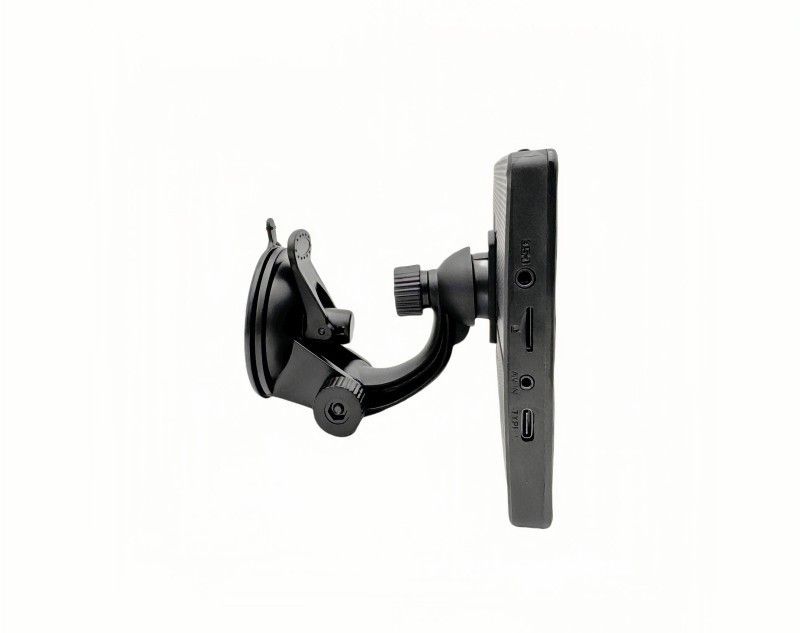

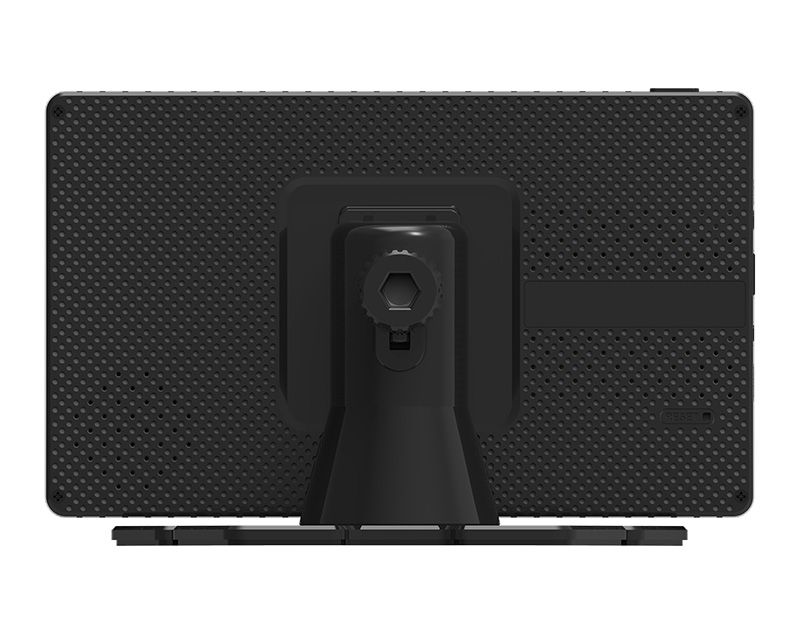

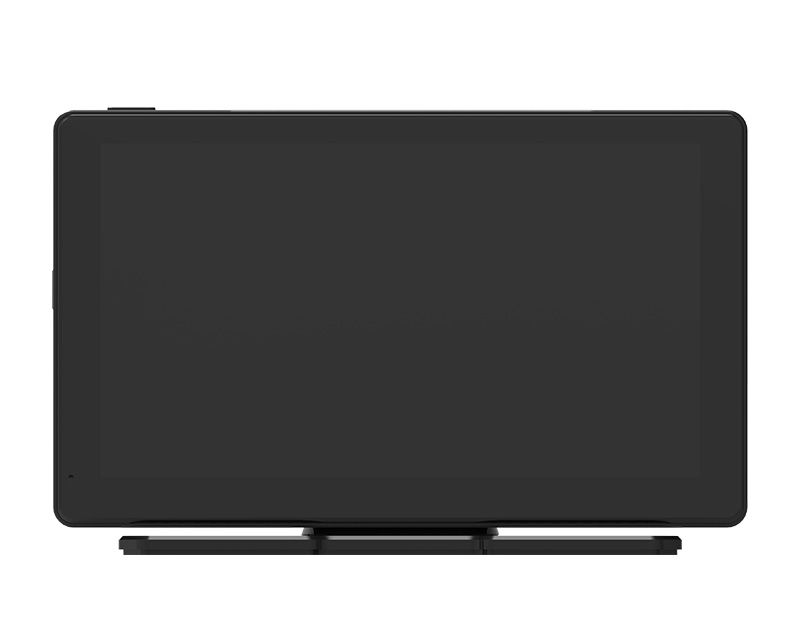

PRODUCT PHOTOS

SPECIFICATION

709A Specifications
General
Processor:		F133-B, RISC CPU
FLASH：		16MB
DDR:		64MB
Display type:		Glass capacitive multi-touch IPS
Display size&resolution:		7.0inch, 1024*600
Display brightness:		495Nit
Battery：		NO
Camera Features
Front lens	Resolution/FPS	N/A
	Aperture/construction:	N/A
Rear lens	Resolution/FPS	AHD 1080p/25fps
	Aperture/construction:	F2.0/2G4P
	extention Cable length:	5.5M
	Other features:	Switch to rear view image automatically while reversing, parking assistance line is adjustable
Loop recording		N/A
Parking monitor:		N/A
Wireless connections&sensors
WiFi:		Support carplay or Android Auto
BT:		5.0
FM transmitter:		Yes
GPS:		No
G-sensor:		N/A
I/O Ports
Mic:		Yes-Electret MIC-1.5*4MM, -34DB
Speaker:		8ohm,2W
Voice command:		Via Siri/Google assistant
AUX socket		Yes, 3.5mm
Rear Camera connector:		2.5mm socket
Micro SD card slot:		Yes, up to 128GB
External GPS antenna socket		N/A
Power input：		Type C
Physical Buttons:		Power, Reset
Advanced features
Light sensor		N/A
ADAS		N/A
Power consumption:
Working voltage：		DC5V
Working current：		<1A
Quiescent current：		<10MA
Power supply:		Car charger or hardwire kit(optional)
Software and update
OS:		RTOS
Firmware update:		Through Micro SD card, OTA will be available in future
Environment
Operating Temp：		（-10℃-70℃）
Storage Temp：		（-20℃-80℃）
Mechanical;
Product dimensions:		17.7*10.6cm（6.96″ x 4.17″ x 8.14″)
Product weigiht:		270g

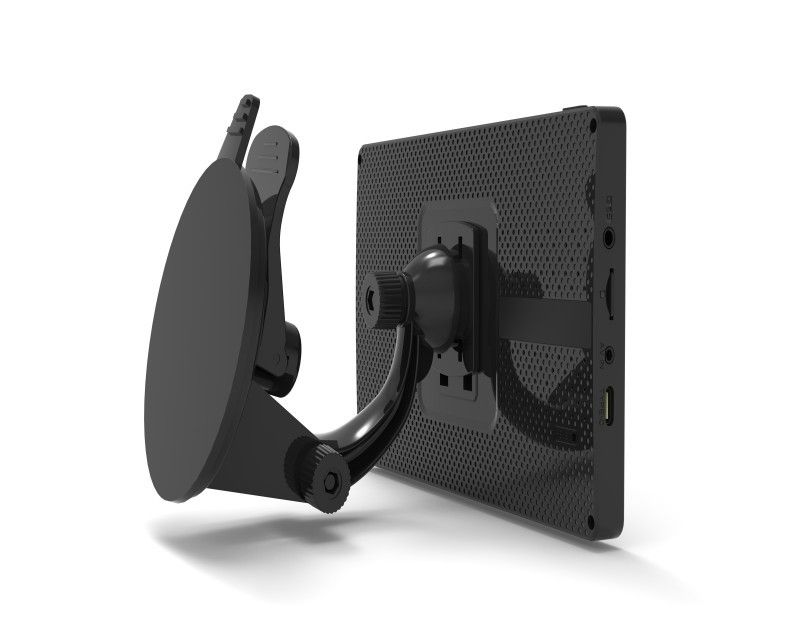

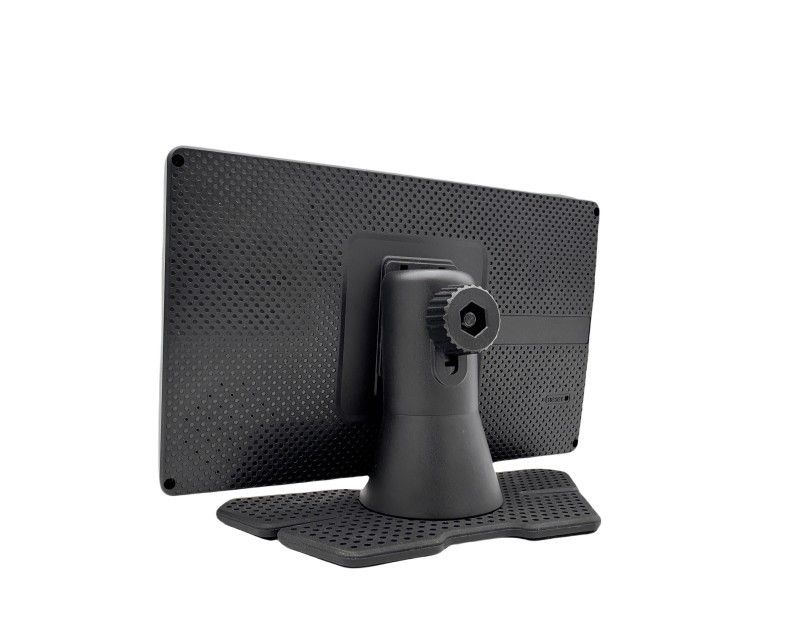

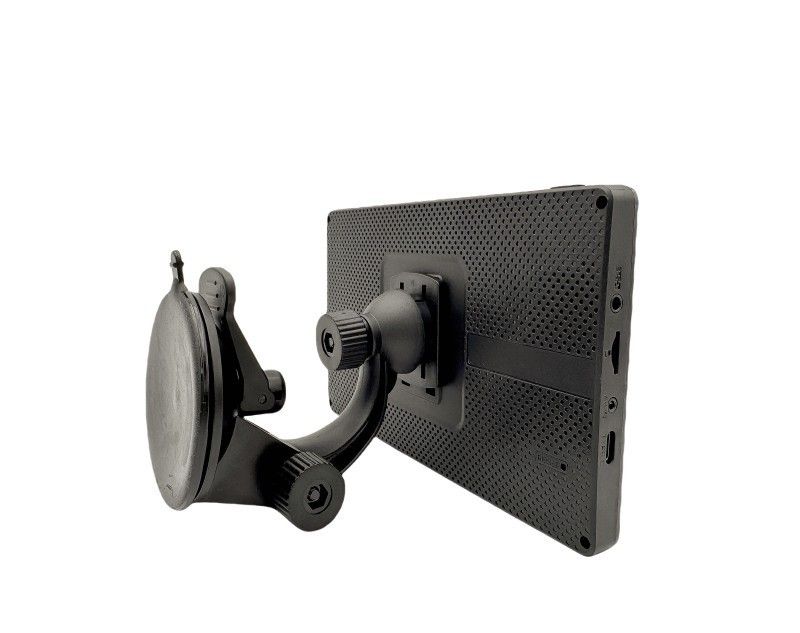

Install method:		Suction mount, dashboard mount, airvent mount

In The Box

Main device

AUX cable

Car Charger

Dashboard Mount

User Manual
